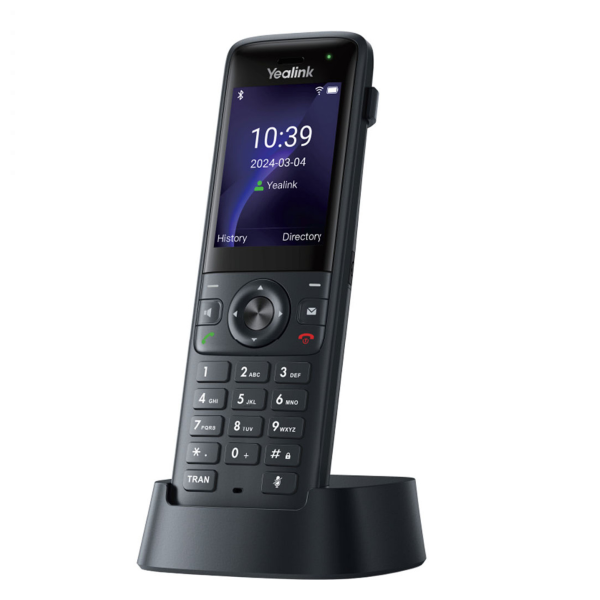

Yealink AX83H Wi-Fi IP Phone

A Feature Rich Wi-Fi IP Phone for Crystal Clear Communication

About the Yealink AX83H

The Yealink AX83H is a powerful, portable Wi-Fi IP Phone, designed to meet the demands of of wireless communication in modern businesses. With support for up to Four SIP Accounts and a 2.4 Inch Colour Display, the AX83H offers exceptional flexibility and usability.

integrating Yealink's Optima HD Audio and Smart Noise Cancellation Technology, the AX83H delivers crystal clear voice communication, even in noisy environments.

Equipped with Bluetooth 5.0 and Dual Band Wi-Fi 6, the AX83H ensures seamless connectivity and reliable performance, along with advanced seamless roaming technology.

With a durable design and long lasting 2000mAh Battery, the Yealink AX83H has a Talk Time of up to 9 Hours and a Standby Time of up to 200 Hours, it is the ideal choice for professionals on the go, making it perfect for various settings, including Supermarkets, Offices, Warehouses, and Hotels.

Key Features & Benefits:

Seamless Roaming - Move Freely

Wi-Fi 6 offers superior performance and reliability. With its faster speeds, reduced interference, and seamless roaming capabilities, Wi-Fi 6 ensures uninterrupted connectivity, even in noisy, busy environments.

The AX83H supports IEEE802.11 k/v/r fast roaming protocol to achieve automatic network switching in milliseconds.

Enjoy uninterrupted connectivity with fast roaming technology that ensures seamless transitions between Wi-Fi networks. Built-in Bluetooth 5.0 offers hands free convenience, allowing you to focus on your work without being tethered to a desk.

Yealink Optima HD Audio and Smart Noise Cancellation Technology

The Yealink AX83H's industry leading audio technologies, including Optima HD Voice and Smart Noise Filtering deliver excellent sound quality and blocking out unwanted background sounds.

Its Hearing Aid Compatible (HAC) Handset allows people with hearing loss to hear voices more clearly.

Unified Management, Easy Maintenance

The Yealink AX series simplifies IT management with unified firmware and YDMP (Yealink Device Management Platform) support.

QR code scanning and bulk sharing of Wi-Fi networks over the air streamline network setup and deployment.

Features

• 2.4 Inch 240 x 320 TFT Colour Screen
• Up to 9 Hours of Talk Time (In Ideal Conditions)
• Up to 200 Hours of Standby Time (In Ideal Conditions)
• Dual Band 2.4G / 5G Wi-Fi 6 - 802.11 a/b/g/n/ac/ax
• Supports IEEE802.11k/v/r Roaming
• Bluetooth 5.0, 3.5mm Headset Jack
• HD Audio and Smart Noise Cancellation
• TRANS and Mute Keys, 9 Configurable Keys
• Up to 4 SIP Accounts
• Local 5 Way Conferencing
• No Perception Upgrade
• USB-C Charging, Quick Charge
• Wall Mountable and Desk Mountable
• Supports YDMP / YCMS
• Belt Clip Included

Specifications:

Audio Features

• Optimal HD Audio, HD Handset, HD Speaker
• Hearing Aid Compatible (HAC Compliant)
• Audio Codecs - G.722, PCMU (G.711μ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO
• Full Duplex Handsfree Speakerphone with AEC
• Smart Noise Cancellation Technology
• VAD, CNG, AEC, PLC, AJB, AGC

Display and Indicator

•  2.4 Inch 240 x 320 TFT Colour Screen
• Keypad Backlight, Vibration
• Wallpaper and Screensaver
• LED for Call and Message Waiting Indication
• Multilingual User Interface
• Caller ID with Name, Number and Avatar

Phone Features

• 4 VoIP Accounts
• Speed Dial, Redial
• Call Hold, Call Transfer, Call Waiting, Call Forward
• Emergency Call, Mute, DND
• Recall, Auto Answer, Hotline
• Local 5 Way Conferencing
• Direct IP Call without SIP Proxy
• Ringtone Selection, Import, Delete
• Set Date, Time Manually or Automatically
• Dial Plan, XML Browser, Action URL / URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Customisable Soft Key

Directory

• Local Phonebook up to 1000 Entries
• Black List, Google Contacts
• Smart Dialing, XML/LDAP Remote Phonebook
• Phonebook Search / Import / Export
• Call History - All Calls - Dialled / Received / Missed / Forwarded

Feature Keys

• 2 Soft Keys
• Function Keys - Dial, Hang Up, Handsfree, Voice Message, Mute, Call Transfer
• Navigation Key and OK Key

Peripherals

• Supports Bluetooth Headset
• Basic Functions: Answer / End / Mute Call
• Enhanced Functions - Redial / Call Hold / Volume Adjustment Two Way Synchronisation

IP PBX Features

• Anonymous Call, Anonymous Call Rejection
• Intercom, Multicast Paging
• Call Completion
• Message Waiting Indicator (MWI)
• Call Park, Call Pickup
• Call Recording, Voicemail

Interface

• 1 x 3.5mm Headset Jack Port
• 1 x USB-C Port

Network

• Built in Dual Band Wi-Fi - Network Standard: 2.4G / 5G IEEE802.11a/b/g/n/ac/ax
• Frequency Range -  2.4 GHz/ 5.0 GHz - Roaming: IEEE802.11 k/r/v
• Built in Bluetooth 5.0 - Connect to Bluetooth Headset
• IPv4/IPv6, SIP v1 (RFC2543), v2 (RFC3261)
• Call Server Redundancy Supported
• NAT Traversal: STUN Mode
• SIP Lnk Mode - Proxy Mode and Peerto-Peer
• IP Assignment - Static / DHCP
• HTTP / HTTPS Web Server
• Time and Date Synchronisation using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS - Layer 3 ToS DSCP, 802.11e/WMM

Power

• Power Adapter - AC 100~240V Input and DC 5V/1.2A Output

Package Contents

• Yealink AX83H Wi-Fi Phone
• Charging Cradle
• Rechargeable Battery
• Belt Clip, Power Adapter
• Quick Start Guide
