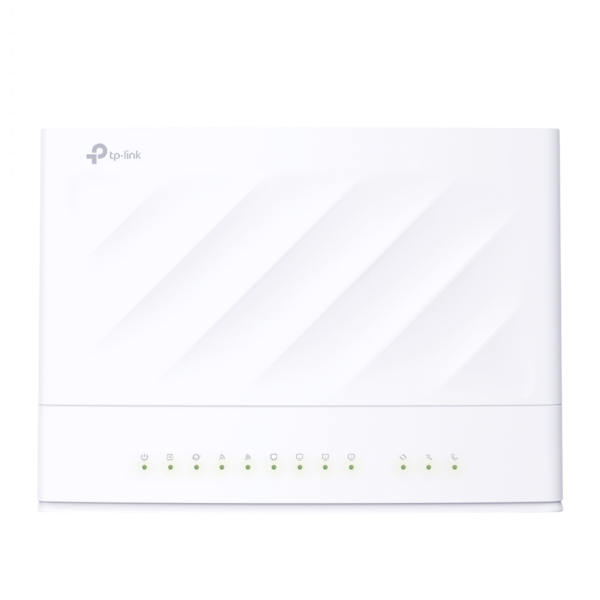

TP-Link VX230v AX1800 Wi-Fi 6 VDSL/ADSL Modem Router

Engineered for modern connected homes and flexible service provider deployments, the TP-Link VX230v delivers high-performance networking with advanced Wi-Fi 6 technology and Super VDSL capabilities. Designed to handle bandwidth-intensive applications effortlessly, this dual-band modem router combines fast wireless speeds with versatile broadband connection options.

Next-Generation Connectivity and Super VDSL Performance

The VX230v supports Super VDSL (VDSL2 Profile 35b) technology, achieving internet download speeds of up to 350 Mbps—making it 3.5x faster than its VDSL2 predecessor (100 Mbps) and outperforming ADSL2+ (24 Mbps). Integrated G.vector technology enhances data transmission stability by minimizing line noise and reducing interference on your DSL line. Beyond xDSL connectivity, the unit features an Ethernet port for fiber or cable connections, alongside a USB port supporting 3G/4G internet backup services.

Versatile Connectivity

With multiple connection ports, the VX230v provides you with a variety of internet connection options. The Ethernet WAN port supports wired connections to cable modems or fiber modems via Ethernet cabling. A 3G/4G dongle can also be attached to the USB port as a backup to ensure you always stay connected.

Dual-Band WiFi 6 Up to 1.8 Gbps

WiFi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Every application feels more fluid with drastically improved WiFi speeds. Both the 2.4 GHz band and 5 GHz band get upgraded to the WiFi 6 generation - perfect for 4K streaming, online gaming, and fast downloading.

High-Speed AX1800 Dual-Band Wireless

Powered by 802.11ax Wi-Fi 6 technology, the router provides total wireless speeds of up to 1.8 Gbps, split between 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. Features such as MU-MIMO and OFDMA allow simultaneous communication with multiple devices, reducing network latency and eliminating bandwidth congestion. BSS Coloring and Beamforming technologies work together to isolate signals from neighbouring networks and project focused coverage throughout the property.

Whole-Home Mesh and VoIP Telephony Support

Adopting standardized EasyMesh technology, the VX230v integrates smoothly with compatible mesh nodes to deliver seamless roaming, automated channel selection, and advanced diagnostics across larger properties. The integrated FXS telephone port supports multiple VoIP accounts and professional call handling features, including caller ID, call waiting, call holding, call forwarding, and voicemail.

Advanced Security and Network Management

Advanced security features provide peace of mind through WPA3 encryption, delivering higher password safety and robust protection against brute-force attacks. Built-in parental controls allow you to block inappropriate content and restrict time spent online for younger users, while Multi-SSID functionality makes it simple to create separate, isolated networks for visitors.

Features

• Next-Gen 1.8 Gbps Speeds - Enjoy smooth streaming, downloading, and gaming without buffering with WiFi speeds up to 1.8 Gbps across two bands
• Boosted Coverage - High-performance internal antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home
• More Connections - OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices
• Super VDSL Technology - The latest super VDSL (VDSL2 Profile 35b) technology delivers internet speeds up to 350 Mbps with advanced G.vector transmission stability
• Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, supporting fiber and cable connections through the Ethernet WAN port, as well as 3G/4G internet services through the USB port
• EasyMesh Compatible - Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology
• Gigabit Wired Connections - 1x GbE WAN port and 3x GbE LAN ports provide fast and flexible wired internet access
• VoIP Calls - Supports multiple VoIP accounts and various call features through the FXS port to surpass traditional landlines
• Enhanced Security - WPA3 encryption, multi-SSID, and parental controls provide a personalised and safer online experience
• Easy Setup and Use - Set up and manage your network in minutes using the Aginet app
• Remote Management - Supports TAUC (TP-Link Aginet Unified Cloud), TR-069, TR-098, TR-181, TR-111, TR-104, and TR-143 protocols for centralised management

Technical Specifications

Product Type

• Combo Modem & Router (AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

Internet Type / WAN

• VDSL Fibre Broadband, ADSL Broadband, 3G/4G Mobile Backup via USB

Wi-Fi / Ethernet Interfaces

• Ethernet (wired), Wi-Fi 2.4 GHz, Wi-Fi 5 GHz, Wi-Fi 6 (IEEE 802.11ax)

Hardware Interfaces

• 3x 10/100/1000 Mbps RJ45 LAN Ports, 1x 10/100/1000 Mbps RJ45 WAN Port, 1x DSL Port, 1x FXS Port, 1x USB 2.0 Port

Antennas

• Internal Antennas

External Power Supply

• 12V/2A

Router Coverage Area

• Small office (30-100 m²) / Home setup

Wireless Signal Rate

• 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz

Wireless Security

• WPA/WPA2/WPA3-PSK

VDSL2 Standards

• ITU G.993.2, Up to 35b profile, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)

ADSL Standards

• Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1/2/3/5

VPN Support

• PPTP, IPSec, OpenVPN

Dimensions (W x D x H)

• 7.9inches x 5.9 inches x 2.7 inches (199.7mm x 148.6mm x 67.5 mm)

Package Contents

• AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router VX230v
• RJ45 Ethernet Cable
• Power Adapter
• RJ11 Cable,
• Splitter
• Quick Installation Guide
