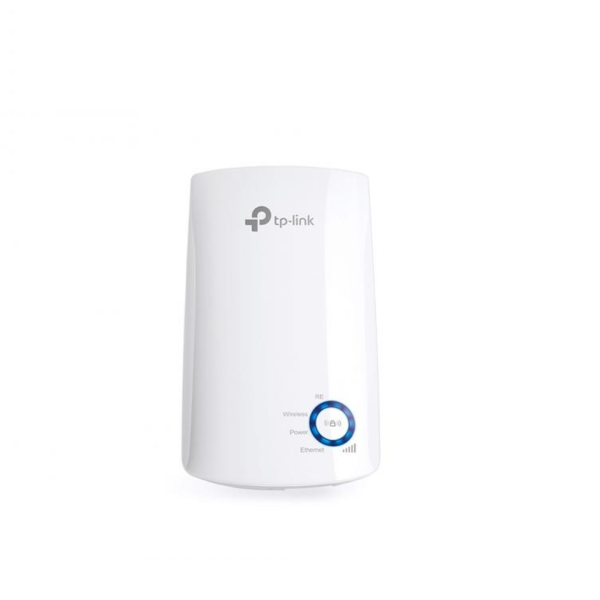

TP-LINK TL-WA850RE Wireless N Range Extender

Boost Your Wireless Network

TP-Link's TL-WA850RE Range Extender connects wirelessly to your Router , strengthening and expanding its signal into areas it can’t reach on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

Easy to Set-Up - Flexible Placement

Press the WPS Button on your Router and the Range Button on your WA850RE within 2 minutes to easily connect to the network. Once connected with any existing Router, simply unplug the TL-WA850RE and plug back in a location that provides the best signal quality and coverage, the TL-WA850RE will not need to be configured again when unplugged once connected to the Router.

Ethernet Bridge

The TL-WA850RE’s single Ethernet Port allows the Extender to function as a Wireless Adapter to connect wired devices like Blu-Ray® Players, Gaming Consoles, DVRs and Internet TVs. The device can share the wireless network as well, at the same time.

Smart Signal Indicator Light

Five Blue signal lights show the strength that the TL-WA850RE receives from the existing Router, this can help to find the right location to place the Range Extender. It is recommended that you place the TL-WA850RE in a location where at least three Blue signal lights can be seen to guarantee the best performance from the Range Extender.

Tether App for Easy Use

Download the Tether App either on Android or IOS, allowing users to easily access and manage various features that include the LED Control Functions Night Mode, which allows you to enjoy a more peaceful nights sleep.

Key Features

• Wall Mount Design - Just Plug in and you are Ready to Go
• Ethernet Port Allows the Extender to Function as a Wireless Adapter to Connect Wired Devices
• LED Control Function Includes a Night Mode for Peaceful Sleep
• Greatly Extends Existing Wireless Coverage to Eliminate Dead Zones
• Tether App Allows Easy Access and Management using any Mobile Device
• Easily Extends your Wireless Network at the Push of the Range Button on the TL-WA850RE

Specifications:

Wireless Features

• Frequency - 2.4~2.4835GHz
• Signal Rate - 11n - Up to 300Mbps (Dynamic), 11g - Up to 54Mbps (Dynamic), 11b - Up to 11Mbps (Dynamic)
• Reception Sensitivity - 270M: -68dBm @10% PER, 130M: -68dBm @10% PER, 108M: -68dBm @10% PER,54M: -68dBm @10% PER,11M: -85dBm @8% PER, 6M: -88dBm @10% PER, 1M: -90dBm @8% PER
• Transmit Power - < 20 dBm (EIRP)
• Wireless Modes - Range Extender/Access Point
• Wireless Functions - WMM (Wi-Fi Multimedia), Wireless MAC Address Filtering, Wireless Statistic, Domain Login Function
• Wireless Security - 64/128/152-bit WEP, WPA-PSK / WPA2-PSK

Hardware Features

• Plug Type - EU, UK, US
• Button - RE (Range Extender) Button, Reset Button
• Power Consumption - About 3W
• Wireless Standards - IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions - 4.3 x 2.6 x 3.0 Inches (110mm x 65.8mm x 75.2mm) - W x D x H
• System Requirements - Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux

Package Contents

• TP-LINK TL-WA850RE Universal Wi-FI Range Extender
• Quick Installation Guide
