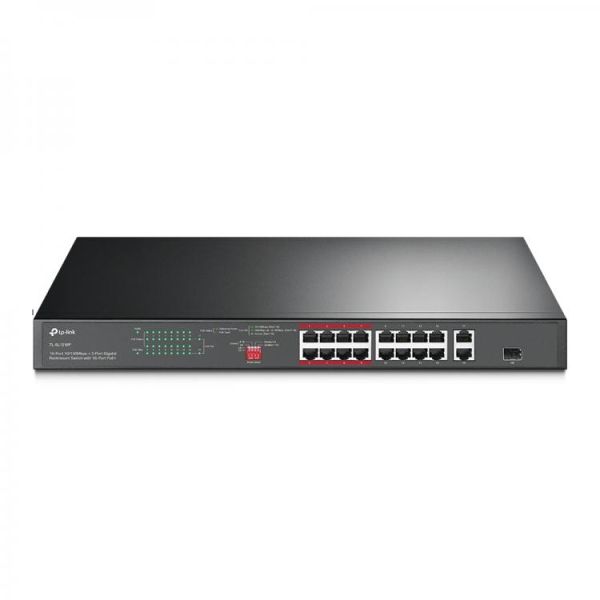

TP-Link - TL-SL1218P - 16-Port PoE+ Gigabit Rack Switch

The TL-SL1218P is a dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

TP-Link's 100 Mbps PoE Switch Series is designed to address specific SMB surveillance needs and to satisfy the demands of most IP Cameras. Many robust features such as Priority Mode, Extend Mode, and Isolation Mode provide value well beyond basic networking needs, creating a versatile and reliable surveillance network to grow your business.

With Extend Mode the PoE Transmission distance reaches up to 250m - making it ideal for IP Camera deployment in large areas.

Priority Mode and Isolation Mode make surveillance smoother and safer - with Priority Mode, Video quality is guaranteed by offering higher priority options for certain ports, such as ports 1-8 when one touch Priority Mode is turned on. Isolation Mode easily divides traffic for ports 1-16 to avoid snooping and tampering, this enables the switch to isolate broadcast storm, improve LAN Security and Data Transmission.

Rackmount switched automatically adjust their built in fans to balance power consumption with sound reduction in noise sensitive locations.

Smooth HD Video Monitoring - 2 x Gigabit RJ45 Ports and 1 x Combo Gigabit SFP Slot ensure smooth streaming even when 16 x HD IP Cameras work simultaneously. Plug and Play connectivity means its easy to set up and ready to use straight out of the box.

Intelligent Power to Prevent Power Overload - When your total power consumption exceeds 150w, Intelligent Power Management automatically cuts lower priority ports power to ensure high priority ports power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non PoE equipment - preventing it from being damaged.

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50℃) with reliability.

The TL-S:1218P is fully compatible with PoE Devices such as IP Cameras, Access Points and IP Phones and works with non PoE wired devices such as PC's, Printers and IPTV.

• Easy to Use and Set Up - Plug and Play Connectivity - No Configuration or Software Needed
• 6× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 Ports, and 1 x Combo Gigabit SFP Slot
• Priority Mode for Ports 1–8 to Guarantee the Quality of Sensitive Applications like Video Monitor
• Isolation Mode Allows One-Click Client Traffic Separation for Higher Security and Performance
• 150 W PoE Budget
• Up to 250m Transmission Distance
• Ultra HD Video
• Wide Operating Temperature

• 16× PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 1× Combo Gigabit SFP Slot

• 2 Fans

• Standard: 802.3at/802.3af Compliant
• PoE Power Budget: 150 W
• PoE Ports: Ports 1–16

• 100–240V AC, 50/60 Hz

• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE Power Supply and Data Transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control

• TL-SL1218P
• Power Cable
• Installation Guide
• Two Mounting Brackets and Fittings
