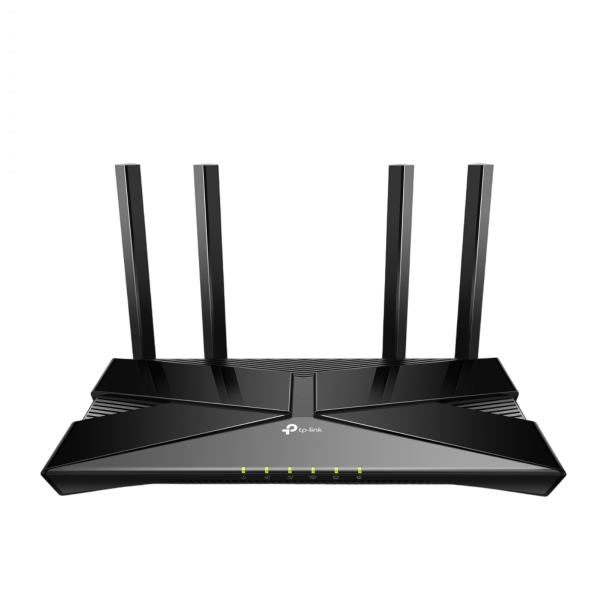

TP-Link Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

The TP-Link Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router delivers next-generation wireless performance and comprehensive wired versatility for modern households. Equipped with Super VDSL (VDSL2 Profile 35b) technology, the device supports downstream bandwidths up to 350 Mbps—delivering speeds up to 3.5 times faster than standard VDSL2 predecessors. Combined with Wi-Fi 6 speeds of up to 1800 Mbps, full gigabit ports, and integrated VoIP call support, the Archer VX1800v provides a complete, high-speed networking hub for intensive online activities.

Advanced Performance and Super VDSL Technology

The TP-Link Archer VX1800v transforms home internet experiences by integrating advanced DSL infrastructure with Wi-Fi 6 capabilities. AX Tech (802.11ax / Wi-Fi 6) features advanced technologies including OFDMA and 1024-QAM, drastically increasing the speed and efficiency of the entire network. Ultimate wireless speeds reach 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band, while gigabit internet access lets you take full advantage of broadband speeds up to 1 Gbps. Furthermore, 2x2 MU-MIMO and OFDMA enable the router to simultaneously transmit data to multiple clients with no bandwidth congestion, greatly boosting transmission efficiency across all connected hardware.

Comprehensive Connectivity and Range Performance

Designed to handle diverse network setups, the Archer VX1800v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 3G/4G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 2.0 port supports 3G/4G dongles for a solid main or backup internet connection. Ultimate range Wi-Fi is driven by four external antennas that deliver wireless signals to every corner of your home, making all connections more efficient and stable alongside Beamforming technology that concentrates Wi-Fi signals towards individual devices.

Gigabit Wired Connections and More

Designed to handle diverse wired network setups, the Archer VX1800v features high-speed connectivity options to anchor your home network. You can plug your PCs, smart TVs, printers, and game consoles directly into one of the three Gigabit Ethernet LAN ports for reliable wired connections supporting full broadband speeds up to 1 Gbps. Additionally, the multi-functional USB port can be used to share files, music, and videos within your local network at high speeds using an external hard disk or flash drive. Furthermore, the built-in analogue telephone system supports voicemail storage by connecting external storage through the USB port, ensuring you never miss a call or lose important voice messages.

Network Reliability and Advanced Security

For total operational dependability, the system includes VPN support for safe private networking via OpenVPN, PPTP VPN, and IPSec VPN connections. Airtime Fairness equally divides network time between new devices and legacy hardware, while Quality of Service (QoS) device prioritisation ensures optimum performance when needed. Full compatibility with EasyMesh and 802.11k/v mesh standards allows you to expand your network seamlessly. Security is further fortified through WPA3 encryption, SPI firewall protection, guest networks, and parental controls

Features

• Super VDSL Performance - The latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350 Mbps, while G.vector and RNC technology ensure advanced data transmission stability
• Next-Gen Gigabit Wi-Fi 6 Speed - 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band ensure smoother streaming and faster downloads
• 2x2 MU-MIMO - Simultaneously transfers data to multiple devices for up to 4x faster performance and increased capacity
• VoIP Support - Supports multiple VoIP accounts and various call features to surpass traditional landlines
• TP-Link Tether App - Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
• Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, supports fiber and cable connections through the Ethernet port, as well as 3G/4G internet services through the USB port

Technical Specifications

Product Type

• TP-Link Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

Interface

• 3 x Gigabit LAN Ports, 1 x Gigabit WAN/LAN Port, 1 x USB 2.0 Port, 2 x RJ11 Ports (1 x DSL + 1 x FXS)

Antenna

• 4 External Antennas

Buttons

• Wi-Fi/WPS Button, Reset Button, Power On/Off Button

DSL Compatibility

• VDSL2 (Profile 35b with G.vector and RNC), VDSL, ADSL2+, ADSL2, ADSL

Wireless Standards

• IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz

Wireless Security

• WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions

Frequency

• 2.4 GHz and 5 GHz

Signal Rate

• 1201 Mbps on 5 GHz (802.11ax), 574 Mbps on 2.4 GHz (802.11ax)

Working Mode

• VDSL/ADSL Modem Router, Wireless Router

WAN Type

• Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)

Protocols

• Supports IPv4 and IPv6

Multi SSID

• 2.4 GHz Guest Network, 5 GHz Guest Network

Certification

• CE, RoHS

System Requirements

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider (for internet access)

Package Contents

• Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v
• Power Adapter
• RJ45 Ethernet Cable
• RJ11 DSL Cable
• External Splitter
• Quick Installation Guide
