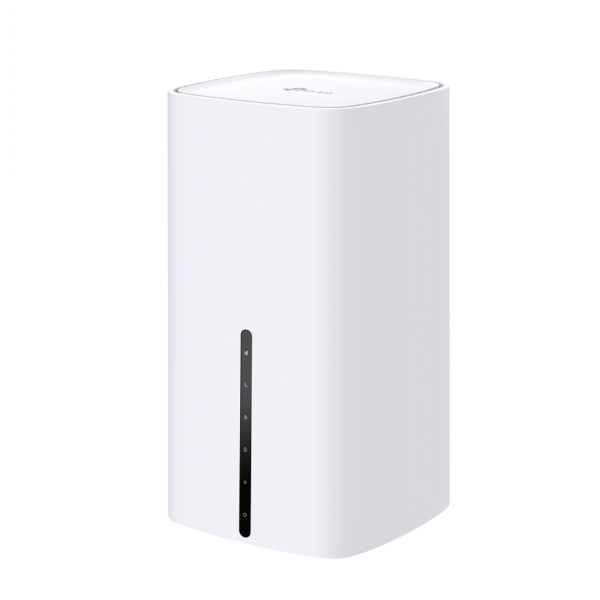

TP-Link Aginet NX520v 5G AX3000 Wi-Fi 6 Telephony Router

The TP-Link Aginet NX520v 5G AX3000 Wi-Fi 6 Telephony Router is an advanced networking solution engineered to deliver ultra-fast mobile broadband and comprehensive whole-home connectivity. By combining cutting-edge 5G carrier aggregation technology with dual-band Wi-Fi 6, this high-performance router achieves download speeds of up to 4.67 Gbps alongside minimal latency, making it an exceptional choice for demanding home networks and small office environments. Complete with built-in VoIP telephony support, fully gigabit ports, and EasyMesh compatibility, the NX520v ensures reliable, high-speed data transmission and effortless network expansion.

Advanced 5G Cellular Speed and Carrier Aggregation

Engineered for maximum mobile broadband performance, the NX520v unlocks the full potential of high-speed cellular networks. By integrating advanced 5G carrier aggregation technology, it pushes downlink capacities up to 4.67 Gbps, bringing fast, responsive network connections to modern smart devices with an ultra-low latency of only 1 ms. Simply insert a compatible nano-SIM card to deploy an immediate high-speed internet connection where traditional fixed lines are unavailable or impractical, allowing users to download large files in seconds, stream ultra-HD content without interruption, and enjoy responsive online gaming.

Plug and Play, Enjoy 5G Network Everywhere

Traditional broadband or cable installations can be expensive and time-consuming for locations such as rural properties, farms, or suburban warehouses. Long contract periods also create complications for short-term rentals, pop-up venues, and temporary sites requiring reliable internet access. The NX520v ensures a straightforward, hassle-free network deployment - simply insert a nano-SIM card to enjoy immediate high-speed internet without the need for complex wired configurations.

AX3000 Wi-Fi 6 Performance and Coverage

Upgraded with 6th generation wireless technology, the router provides a total throughput split across 574Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band. The inclusion of OFDMA and MU-MIMO technologies optimises network efficiency, enabling multiple connected devices to communicate simultaneously without lag or congestion. Furthermore, built-in EasyMesh support allows the router to coordinate with compatible nodes to eliminate dead zones and ensure seamless roaming throughout the property.

Simultaneous Wi-Fi and Voice Calling

Beyond high-speed data delivery, the NX520v is not only a wireless router and modem gateway, but also functions as a dedicated telephone hub. Equipped with an integrated voice port, it allows you to connect an existing landline telephone directly to the device so you can make phone calls and surf the internet at the same time. Supporting VoLTE and CSFB protocols, users can enjoy professional, high-quality voice calls over cellular networks without requiring complex external adapter boxes.

Full Gigabit Ports and Comprehensive Connectivity

To accommodate bandwidth-heavy wired peripherals, the unit is equipped with three full gigabit Ethernet ports. This includes one versatile WAN/LAN port that supports dynamic IP, static IP, PPPoE, and PPTP/L2TP connection types, ensuring seamless adaptation to diverse network architectures. High-intensive wired hardware, such as smart TVs, games consoles, and network-attached storage (NAS) devices benefits from high-speed data transfers.

Robust Security and Professional Remote Management

Security and administrative control are built into the NX520v framework, featuring active firewalls alongside comprehensive parental controls and guest network isolation. For service providers and technical administrators, the router supports TR-069, TR-181, TR-111, and TR-143 protocols, enabling effortless remote provisioning, diagnostic monitoring, and firmware updates.

Features

• Boost Your 5G Speed - Take advantage of advanced 5G connectivity with download speeds up to 4.67 Gbps, enabling seamless sharing across multiple wireless devices for uninterrupted Ultra HD movies, fast file downloads, and smooth video calls
• AX3000 Dual-Band Wi-Fi 6 Speed - Delivers concurrent wireless speeds of up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band
• VoLTE/VoNR Support - Equipped with an integrated voice port, allowing users to make and receive phone calls over cellular networks by connecting a standard telephone set
• Plug and Play Deployment - Enables an immediate 5G network connection right after inserting a nano-SIM card, bypassing traditional broadband installation delays
• EasyMesh Compatibility - Integrates with compatible EasyMesh products to establish a flexible, cost-effective mesh network with a single Wi-Fi name for seamless whole-home coverage
• Full Gigabit Ports for High Speed Wired Connectivity - Includes full gigabit Ethernet ports providing high-speed, reliable connections for bandwidth-intensive wired devices such as smart TVs, games consoles, and NAS drives
• Easy Remote Management - Supports TR-069, TR-369 protocols, and TAUC (TP-Link Aginet Unified Cloud) for efficient remote provisioning and diagnostics
• High-Capacity Quad-Core Processing - Powered by a robust 2 GHz Quad-Core CPU to handle heavy data traffic and complex routing protocols smoothly
• Comprehensive Cellular Band Compatibility - Optimised for UK and European network providers, supporting an extensive range of 5G sub-6 GHz bands alongside comprehensive 4G FDD and TDD-LTE frequencies
• Multi-SSID Virtual Segmentation - Allows the creation of up to three additional segregated SSIDs across both frequency bands for guest or IoT device isolation
• Advanced Quality of Service (QoS) - Prioritises critical data packets to ensure uninterrupted video conferencing and stable voice communications
• Secure VPN Tunneling - Built-in IPsec VPN support enables secure remote office connectivity for home workers

Technical Specifications

Product Type

• TP-Link Aginet NX520v 5G AX3000 Wi-Fi 6 Telephony Router

Interface

• 3 x Gigabit LAN Ports, 1 WAN / LAN Gigabit Port

Antenna

• Internal Wi-Fi antennas, optional internal / external wi-fi / 5G antennas

CPU

• 2 GHz Quad-Core CPU

Buttons

• 1 Reset button, 1 WPS / Wi-Fi Multiplex button

Supported Frequency Bands

• 5G - N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78
• 4G - FDD-LTE:B1/B3/B5/B7/B8/B20/B28/B32, TDD-LTE: B38/B40/B41/B42/B43
• 3G - DC-HSDPA, HSPA+, HSDPA, HSUPA,WCDMA B1/B5/B8

Wireless Standards

• IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Wireless Security

• WPA/WPA2-PSK/WPA3 encryption

Frequency

• 2.4 GHz and 5 Ghz

Signal Rate

• 574Mbps at 2.4GHz, 2402Mbps at 5GHz

Working Mode

• 5G / 4G / 3G, Wireless Router

WAN Type

• Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Protocols

• Supports IPv4 and IPv6

Multi SSID

• 3 more 2.4GHz/5GHz Network

Features

• Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Dynamic DDNS, SIM Management,SMS, Cloud Upgrade, EasyMesh , VoLTE, IPTV, IPv6, NAT Forwarding, Firewall, LED Control, Network Diagnosic, CWMP, SNMP, Traffic Statistic, WPS,1024-QAM, MU-MIMO, OFDMA, IPSEC VPN, WEB Remote Control

Certification

• CE, RoHS

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher

Package Contents

• 5G AX3000 Wifi6 Telephony Router NX520v
• RJ45 Ethernet Cable
• Power Adapter
• RJ11 Cable
• Quick Installation Guide

*Please Note - SIM Card not Included
