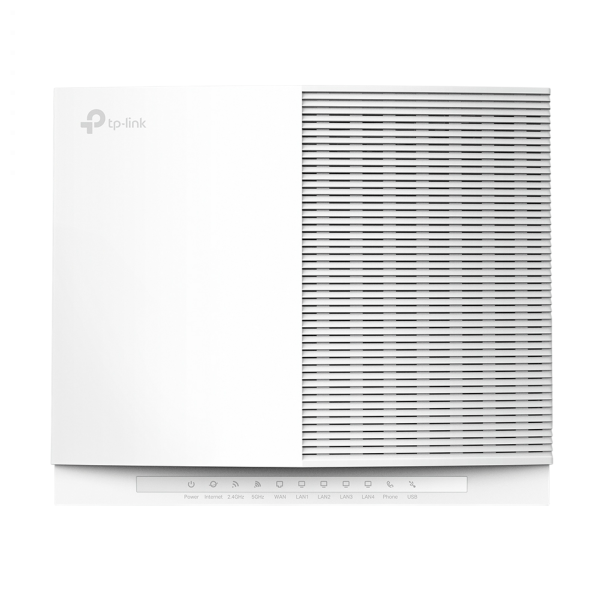

TP-Link Aginet EX820v AX6000 Dual-Band Wi-Fi 6 VoIP Router

The TP-Link Aginet EX820v AX6000 Dual-Band Wi-Fi 6 VoIP Router is a high-performance networking solution designed to deliver fast wireless connectivity, multi-gigabit wired networking and integrated internet telephony from a single device.

Featuring next-generation Wi-Fi 6 technology, combined wireless speeds of up to 6 Gbps, a 2.5 Gigabit WAN connection and dedicated VoIP phone ports, the EX820v provides a powerful platform for demanding home, home-office and service-provider deployments.

Delivering up to 4804 Mbps on the 5 GHz band and 1148 Mbps on 2.4 GHz, the EX820v uses an 8-stream Wi-Fi 6 architecture to support high-bandwidth applications and multiple connected devices. EasyMesh compatibility enables wireless coverage to be expanded using compatible devices, while the Aginet app, web-based management and comprehensive remote-management capabilities simplify ongoing network administration.

AX6000 Dual-Band Wi-Fi 6 Performance

Built around 802.11ax Wi-Fi 6 technology, the TP-Link EX820v provides significantly increased wireless capacity and efficiency for modern connected environments. It delivers combined wireless speeds of up to approximately 6 Gbps, comprising up to 4804 Mbps over 5 GHz and 1148 Mbps over 2.4 GHz.

The router incorporates technologies including 1024-QAM, MU-MIMO and OFDMA, helping multiple compatible devices communicate efficiently while reducing congestion on busy networks. This makes the EX820v particularly well suited to environments where smartphones, computers, smart devices, IP cameras, streaming equipment and VoIP devices may all be connected simultaneously.

TP-Link states that the EX820v can accommodate over 250 simultaneous device connections, although actual capacity and performance will vary according to network conditions and connected equipment.

2.5 Gigabit Internet & Wired Connectivity

The TP-Link EX820v goes beyond conventional Gigabit networking with a dedicated 2.5 Gbps WAN port and 2.5 Gbps LAN port, enabling compatible high-speed broadband connections and local network devices to take advantage of increased wired bandwidth.

Three additional Gigabit Ethernet LAN ports provide connectivity for computers, IP phones, switches and other wired network equipment, while the integrated USB 3.0 port supports high-speed access to compatible external storage devices.

This combination makes the EX820v particularly suitable where both high-performance wireless connectivity and reliable wired networking are required.

Integrated VoIP Phone Connectivity

Unlike a conventional Wi-Fi router, the EX820v also incorporates a dedicated VoIP telephone system.

Two integrated FXS phone ports allow compatible existing analogue telephones to be connected directly to the router, enabling users to make and receive calls over an appropriately configured VoIP service.

TP-Link also supports multiple VoIP accounts and features including Caller ID, Call Waiting, Call Holding and Call Forwarding. Voicemail storage can also be supported when suitable USB storage is connected to the router's USB port.

Extensive Wi-Fi Coverage

Beamforming technology works alongside the EX820v's high-performance antennas to provide stronger and more focused wireless coverage throughout the home or office. By directing Wi-Fi signals towards connected devices, the router helps improve connection strength and maintain more reliable wireless performance across the network.

EasyMesh Whole-Home Wi-Fi

EasyMesh compatibility allows the EX820v to form part of a flexible mesh Wi-Fi network using compatible EasyMesh devices.

Rather than relying solely on a single router to provide coverage throughout a property, additional compatible devices can be incorporated to extend wireless connectivity into areas with weaker reception.

The EX820v also supports 802.11k/v/r mesh protocols, helping compatible devices move between wireless access points as users travel around the property.

More Connections, No More Buffering

Powered by Wi-Fi 6 with OFDMA and MU-MIMO technology, the TP-Link Aginet EX820v is designed to efficiently handle over 250 simultaneous device connections. This increased network capacity helps multiple devices communicate at the same time while reducing congestion and maintaining smooth, responsive Wi-Fi performance.

Ideal for increasingly connected homes and busy networks, the EX820v provides the capacity required for smartphones, laptops, tablets, smart home devices, streaming equipment and other connected devices without unnecessarily slowing down network performance.

Advanced Network Security & Control

The TP-Link EX820v provides comprehensive network security features for protecting connected devices and managing network access.

Support for WPA3 wireless encryption provides modern Wi-Fi security, while SPI Firewall, DoS protection, IP and MAC address binding and access controls provide additional network protection.

Parental Controls can be used to manage access for selected devices, while Multi-SSID and Guest Network capabilities make it possible to provide separate wireless access without exposing the primary network.

VPN Support

Integrated VPN functionality provides additional flexibility for secure remote network connectivity.

The EX820v supports PPTP, OpenVPN and IPSec VPN Server functionality, alongside IPSec, PPTP and L2TP VPN pass-through.

Lightning-Fast Media Resource Sharing

Connect a compatible external storage device to the USB 3.0 port and conveniently share files, music, videos and other content across your network. With support for Storage Sharing, FTP Server and Media Server functionality, the TP-Link Aginet EX820v provides a simple way to access and share stored content between compatible connected devices.

Easy Local, App & Remote Management

The EX820v provides several management options suitable for both end users and service providers.

Local network administration is available through the WebGUI, while the TP-Link Aginet app provides convenient management from compatible mobile devices. For service-provider environments, the router supports TR-069, TR-181, TR-369, TR-111 and TR-143, alongside cloud management through TP-Link Aginet Unified Cloud (TAUC).

Features

• AX6000 Dual-Band Wi-Fi 6 - Delivers combined wireless speeds of up to 6 Gbps across the 2.4 GHz and 5 GHz bands
• 8-Stream Wi-Fi Performance - Provides increased wireless capacity for multiple connected devices and demanding network applications
• 2.5 Gigabit Connectivity - Features 2.5G WAN and 2.5G LAN connectivity alongside three Gigabit LAN ports
• Integrated VoIP Support - Two FXS ports allow compatible analogue telephones to make and receive calls over a configured VoIP service
• EasyMesh Compatibility - Expand wireless coverage with compatible EasyMesh devices to create a seamless Wi-Fi network
• OFDMA & MU-MIMO Technology - Improves network efficiency when multiple compatible devices are connected simultaneously
• Advanced Wi-Fi Security - Supports WPA3 alongside WPA/WPA2 security for enhanced wireless network protection
• VPN Support - Supports PPTP, OpenVPN and IPSec VPN Server functionality with IPSec, PPTP and L2TP pass-through
• Flexible Network Management - Manage the router through the WebGUI, TP-Link Aginet app, remote management protocols or TAUC cloud management
• USB 3.0 Connectivity - Supports compatible external storage, FTP Server and Media Server functionality
• Multi-SSID & Guest Network Support - Create separate wireless networks for different users, devices or guest access
• Advanced Network Controls - Includes Parental Controls, QoS, firewall protection, port forwarding and network diagnostics
• IPv4 & IPv6 Support - Compatible with both current IPv4 and next-generation IPv6 networking protocols

Technical Specifications

Package Contents

• TP-Link EX820v AX6000 Wi-Fi 6 VoIP Router
• Power Adapter
• RJ45 Ethernet Cable
• RJ11 Telephone Cable
• Quick Installation Guide
