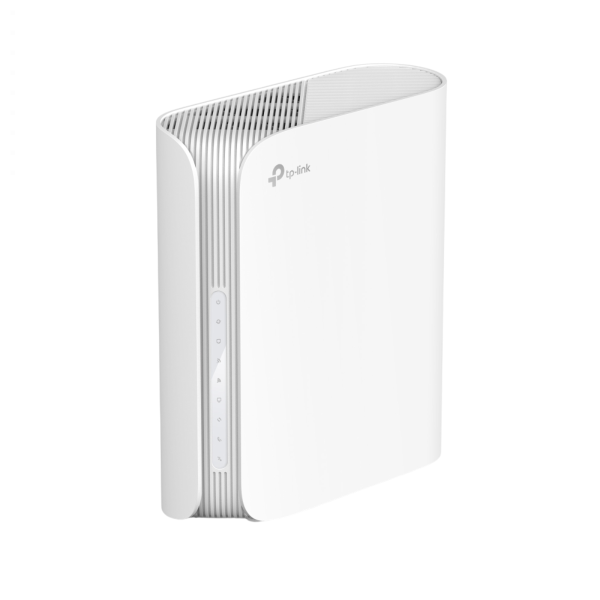

TP-Link Aginet EB431v BE7200 Dual-Band Wi-Fi 7 VoIP Router

The TP-Link Aginet EB431v BE7200 Dual-Band Wi-Fi 7 VoIP Router delivers next-generation connectivity for modern homes and demanding business environments. Harnessing cutting-edge Wi-Fi 7 capabilities alongside multi-gigabit wired interfaces, this router provides exceptional speed, minimal latency, and robust reliability for intensive network demands.

Dual-Band Wi-Fi 7 Performance

The router harnesses next-generation Wi-Fi 7 technology to deliver combined wireless speeds of up to 7136 Mbps across dual bands. This advanced architecture incorporates Multi-Link Operation (MLO) to allow clients to transmit data simultaneously across frequencies, drastically reducing latency and boosting throughput for intensive network activities like 4K/8K streaming and cloud gaming.

Multi-Gigabit Connectivity and Flexible Mounting

Designed for high-performance networking, the device features dedicated multi-gigabit connections including a 2.5G WAN port and a 2.5G LAN port alongside a high-speed USB 3.0 port. Furthermore, its physical construction supports versatile deployment options, allowing users to mount the router flexibly on a wall or place it flat on a desktop surface to suit any office or home layout.

Advanced Antenna Architecture and Coverage

The router features a sophisticated 4T5R antenna configuration comprising four high-performance dual-band antennas, an extra 5G receiver antenna, and a dual-band DFS antenna. This hardware layout works alongside integrated beamforming technology to dynamically target and concentrate wireless signal strength toward connected devices, ensuring high throughput and reliable connectivity across extended spaces.

Simultaneous Wi-Fi and Advanced VoIP Telephony

The EB431v integrates a high-performance telephone system that enables users to connect standard analogue phones directly to the router. Going beyond traditional landlines, it supports flexible VoIP call capabilities - including caller ID, call waiting, call holding, and call forwarding - alongside convenient voicemail storage when a USB storage device is connected.

Enterprise-Grade Security and Cloud Management

Network security is prioritised through an SPI firewall, comprehensive guest network controls, and modern WPA3 encryption standards. For administrators, remote management protocols like TR-069 and TP-Link Aginet Unified Cloud (TAUC) platform integration simplify provisioning, firmware updates, and continuous network health monitoring.

Robust Network Protection and Advanced Security

The router features advanced security measures including WPA3 encryption for enhanced password protection and resistance against cyber attacks. It also incorporates comprehensive parental controls to block inappropriate content and manage online time limits, alongside Multi-SSID support to create isolated guest networks and keep your primary home or office network secure.

Features

• Wireless Standards - Powered by Wi-Fi 7 standards (IEEE 802.11be/ax/ac/n/a 5 GHz and IEEE 802.11be/ax/n/g 2.4 GHz) for peak wireless efficiency
• Wireless Speeds - Reaches maximum wireless data rates of up to 5760 Mbps on the 5 GHz band and 1376 Mbps on the 2.4 GHz band
• Efficiency Features - Includes Multi-RU and 4K-QAM channel efficiency features to optimise data packet handling under heavy household or office loads
• Wired Ports - Incorporates 1x 2.5 Gbps Ethernet WAN port, 1x 2.5 Gbps Ethernet LAN port, and 3x 10/100/1000 Mbps RJ45 LAN ports
• Telephony Support - Features 2 dedicated phone ports to support crystal-clear VoIP telephony services
• USB Connectivity - Built-in USB 3.0 port allows local file sharing and printer connectivity across the network
• VPN Configuration - Supports robust VPN server and client configurations including OpenVPN, PPTP, and L2TP for secure remote access
• Mesh Capability - EasyMesh compatibility with 802.11k/v/r roaming protocols guarantees seamless device handoffs across extended coverage zones
• Working Modes - Flexible working mode options supporting both traditional Router Mode and Access Point Mode

Technical Specifications

Product Type

• BE7200 Dual Band Wi-Fi 7 VoIP Router

Wi-Fi 7 Functions

• Multi-Link Operation (MLO), 4K-QAM, and Multi-RUs

WAN Types

• Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Guest Networks

• 2.4 GHz Guest Network, 5 GHz Guest Network

Access Control

• Parental control, Local management, Host list, White/Black list

Wi-Fi Range

• Designed for medium to large office or home environments, expandable via EasyMesh compatibility with 802.11k/v/r roaming support

Ethernet Ports

• 1x 2.5 Gbps Ethernet WAN port, 1x 2.5 Gbps Ethernet LAN port, and 3x 10/100/1000 Mbps RJ45 Gigabit LAN ports

USB Support

• 1x USB 3.0 port for local file sharing, printer connectivity, and network storage

Buttons

• Power button, Reset button, WPS button, and Wi-Fi button located on the back panel

Certification

• RoHS

Wireless Security

• WPA/WPA2/WPA3-Personal encryption standards, SPI firewall, DoS protection, and IP/MAC address binding

VPN Server Client

• Supports OpenVPN, PPTP, and IPSec VPN connections

Dimensions

• Dimensions - 7.4 Inches x 2.8 Inches x 8.6 Inches (189mm x 70mm x 218mm) - W x D x H

Package Contents

• TP-Link Aginet EB431v BE7200 Dual-Band Wi-Fi 7 VoIP Router
• Power Adapter
• RJ45 Ethernet Cable
• RJ11 Phone Cable
• Quick Installation Guide
