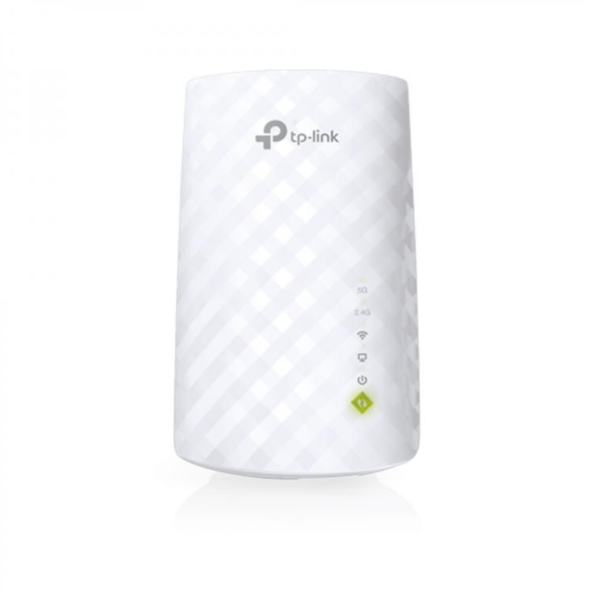

TP-Link AC750 Dual Band Wi-Fi Range Extender (RE200)

Extend or Boost the Range of Your Wi-Fi Network

The TP-Link AC750 (RE200) Wi-Fi Range Extender connects wirelessly to your Router, helping to strengthen and expand signal into areas the Router cant reach on its own, helping to achieve speeds of 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band. Place it between your Wireless Router and Wireless Devices, expanding Wi-Fi coverage throughout your home or office.

The AC750 (RE200) works with any standard Router or Access Point, providing non-dropping Dual Band Wi-Fi  to multiple devices.

One Key Connection

Press the WPS Button on your Router and the RE Button on your AC750 (RE200) to easily connect to the network. Once connected to an existing Router, simply relocate the AC750 (RE200) to any location with the best signal strength.

Perfect Location at a Glimpse

An intelligent Signal Light helps users quickly find the best location to install the AC750 Range Extender - if the AC750 shows a Green Light this means a strong connection, if its showing a Red Light this means its too far away from the Router and no lights mean the Range Extender isnt connected to the Router.

Entertainment Adapter

With an Ethernet Port, the AC750 (RE200) can be used as a Wireless Adapter to connect wired devices like desktop gaming consoles. Blu-Ray® Players and Internet TV's. The device can share the wireless network at the same time.

Ease of Use

• Compact Wall - Plug Design – Easy to Install and Move
• Ethernet Port - Connects a Wired Device to your Wi-Fi Network
• Intuitive Web UI - Ensures Quick and Simple Installation without Hassle
• Fast Encryption - Makes Secure Wireless Connection Quick and Easy with the Push of a WPS Button
• Hassle-Free Management with Tether App - Network Management is Made Easy with the TP-Link Tether App, Available on any Android or iOS Device

Speed

• Ultimate Wireless Speed - Combined Wireless Speeds of up to 300Mbps (over 2.4GHz) and 433Mbps (over 5GHz)
• Support 802.11ac - Provides a Data Transfer Rate 3 Times Faster than 802.11n for Each Stream
• High Speed Mode - Use One Dedicated Wi-Fi Band to Boost Extender Performance

Reliability

• Simultaneous Dual Band Connection - Separate 2.4GHz and 5GHz Wi-Fi Bands Enable More Devices to Connect to your Network Without a Drop in Performance
• Access Control - Flexibly Allows or Restricts Certain Devices to Access the Internet for a Specific Period
• Multi-Language Support - Use your Familiar Language to Easily Manage the Extender
• LED Control - Easily Schedules the LED On or Off to Your Needs, no Blinking Light Disturbing Your Sleep

Hardware

• Ethernet Port - 1 10/100Mbps RJ45 Port
• Button - WPS Button, RESET Button
• Antenna - 3 Omni-Directional Antennas
• Power Consumption - 7.0W
• Dimensions (W × D × H) - 2.6 x 1.5 x 4.3 in. (65.8 x 38.8 x 110mm)

Wireless

• Wireless Standard - IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency - 2.4GHz and 5GHz
• Signal Rate - 300Mbps at 2.4GHz, 433Mbps at 5GHz
• Transmit Power - CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz)

Features

• Boosts Wireless Signal to Previously Unreachable or Hard-to-Wire Areas Flawlessly
• Compatible with 802.11 b/g/n and 802.11ac Wi-Fi Devices
• Dual Band Speeds up to 750Mbps
• Miniature Size and Wall-Mounted Design Make it Easy to Deploy and Move Flexibly
• Ethernet Port Allows the Extender to Function as a Wireless Adapter to Connect Wired Devices
• Works with any Wi-Fi Router or Wireless Access Point

Package Contents

• TP-Link AC750 Dual Band Wi-FI Range Extender (RE200)
• Quick Installation Guide
