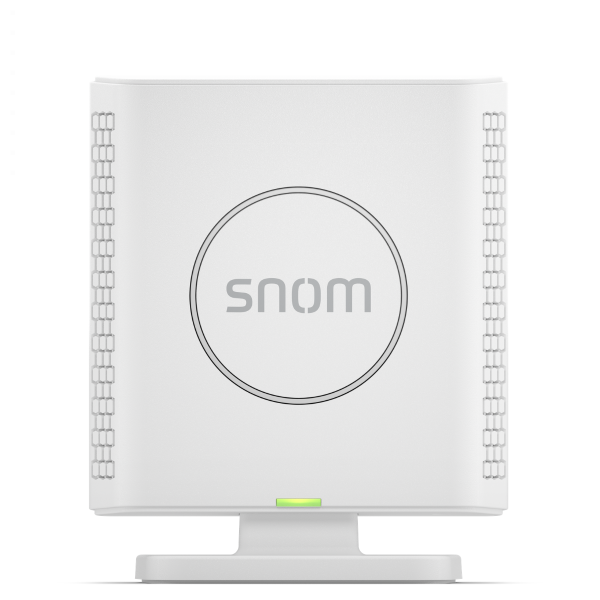

Snom M400 Single Cell IP DECT Base Station

Single Cell DECT IP Base Station for Seamless Business Mobility

The Snom M400 offers the full range of telephony business features. The Base Station allows management of up to 10 parallel calls with up to 20 SIP accounts. For Cloud and VoIP PBX partners, the Snom M400 offers remote maintainability and zero touch deployment.

The Snom M400 complies with the latest encryption standards and shares the same architecture as the Snom M900 Multicell System for the latest security and software updates.

Technical Features

DECT

The DECT Base Station communicates using radio standard for telecommunications - Digital Enhanced Cordless Telecommunications (DECT).

Power over Ethernet (PoE)

The M400 can receive power from a connected network cable. providing that the network switch used supports this and has enough power to supply all connected devices.

Single Cell System

The M400 DECT Base Station can only be operated alone and cannot be connected to a Multi-Cell.

Security (TLS & SRTP)

The Base Station supports all common security protocols including TLS, SIPS, SRTP etc.

Compatible Handsets:

Snom M25

Snom M65

Snom M70

Snom M80

Snom M85

Snom M90

Technical Specifications

Indicators and Keys

• 1 Multi-Colour LED
• 1 Dedicated Function Key Reset

Audio Codecs and Features

• Audio Codecs - G.711 (A-law, μ-law), G.722, G.726, G.729
• Related Features - Codec Negotiation, Codec Switching

DECT Technology and Features

• Standard DECT - Antenna Diversity (2 Internal Omni-Directional Antennas for Better Transmission and Reception, Authentication / Encryption of Base and Handset, Wideband Audio
• Frequency Band - Europe: 1,880 - 1,900 MHz, USA: 1,920 - 1,930 MHz
• Output Power - USA: 1,920 - 1,930 MHz,& USA- Less than 100 mW, Level (dbm) -14, 17, 20, 24
• Coverage - Up to 50m Indoor Range / 300m Outdoor Range, Handsets - Up to 20, Simultaneous Calls - Up to 10 Narrowband Calls / 5 Wideband Calls
• Related Features - Software Upgrade Over the Air (SUOTA)

Indicators and Keys

• 1 Multicolour LED, 1 Dedicated Function Key Reset

Audio Codecs and Features

• Audio Codecs - G.711 (A-law, μ-law), G.722, G.726, G.729
• Related Features - Codec Negotiation, Codec Switching

User Interfaces and Setup

• Configuration and Setup via Menu Driven Web User Interface (WUI)
• Automatic Configuration Via Provisioning - Loading of Settings and Firmware via HTTP / HTTPS / TFTP, Secure Provisioning with Preinstalled Certificate, Cloud Zero Touch Provisioning
• Localisation - Timezone, Dial Tone
• Diagnostic - DECT Messages, Alarms, Location
• Related Features -XML Minibrowser Support, Compatible Handset Feature RSSI Tool, no Additional Measurement Equipment Needed

Network Technologies and Protocols

• Network Technologies - VLAN (IEEE 802.1Q
• Secure VoIP Protocols - SIPS (SIP over TLS, SRTP (RFC 3711)
• Network Protocols - DHCP, NTP, LLDP-MED, HTTP
• Secure Network Protocols - TLS V1.2, HTTPS
• Quality of Service (QoS) - ToS

Interfaces and Connections

• M400 Power Options - Power over Ethernet (PoE), IEEE 802.3af, Class 2
• Wired Interfaces - RJ45-8P8C 10/100 Mbit Ethernet Port
• Wireless Interfaces - DECT

Package Contents

• Snom M400 DECT Base Station
• Quick Installation Guide (QIG)
• Information Sheets (Security, Standards)
