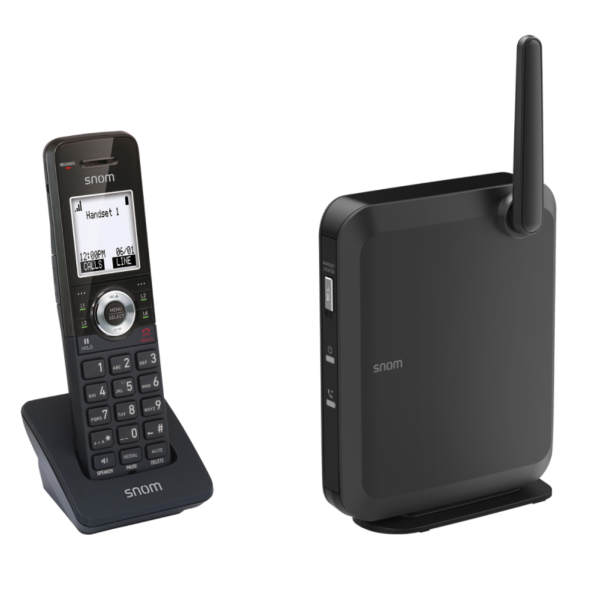

Snom M110 SC - IP DECT Bundle

• Shared Call Emulation (SCE)
• Up to 8 SIP Accounts
• Up to 10 M10 SC Handsets can be Paired to the M100 Base Station
• 1.8 Inch TFT Liquid Crystal Display
• Up to 6 Simultaneous Calls
• OTA Updates, Directory
• Backlit Keypad, 2.5mm Headset Jack
• Integrated Belt Clip
• Bundle consists of the Snom M100 SC DECT Base Station and the Snom M10 SC DECT Handset

About the Snom M110 Bundle

Snom's own Shared Call Emulation feature enables call sharing on all M10 SC Handsets that are connected to the M100 SC Base Station, without the need for programming knowledge or support from the PBX provider. The system can be set up via the web interface and through provisioning.

Software updates of the M10 SC Handset are carried out via the DECT Interface (OTA), ensuring a stable operation of the system. The Snom M100 SC Base Station can be powered via any existing PoE Switch.

The Snom M10 SC Handset offers call functions including holding and transferring calls, in addition to crystal clear audio quality. The modern high quality DECT Handset has a large display and backlit keypad, its powerful battery provides up to 9 hours of talk time or up to one week of standby time.

Four LED function keys are freely programmable and support the VoiP providers independent call sharing with other M10 Handsets thaks to Snom's Shared Call Emulation feature. Up to 6 SIP Calls can be made simultaneously.

Snom M100 Technical Features

DECT

The Base Station communicates using radio standard for telecommunications - Digital Enhanced Cordless Telecommunications (DECT)

GAP Compatible

GAP - Generic Access Profile is a signaling protocol defined by the European Telecommunications Standard Institute (ETSI), this enables devices from different manufacturers to be interconnected. The protocol enables only the simplest functions such as registering the Handset - answering a call, establishing a connection, holding and terminating the connection.

All other functions provided by the DECT protocol of the respective manufacturer are not supported by GAP.

OTA Updates

The M100 SC Base Station can receive updates via radio, i.e Over the Air (OTA.

Power over Ethernet (PoE)

The DECT Base Station can receive its power via a connected network cable (providing the network switch supports this) and has enough power to supply all connected devices.

Single Cell System

The DECT Base Station cannot be connected to a Mulit-Cell, it can only be operated alone.

Telephone Directory

The M100 has an integrated phone book.

Tehcnical Specifications:

Weight and Dimensions

• Base Station Dimensions - 151mm x 116mm x42mm
• Base Station Weight - 227g

Indicators and Keys

• 2 LED Iniciators - Power Status Indication - 1 Green LED, VoIP Status Indication - 1 Green LED
• 2 Hard Keys in Total - Handset Localisation, Reset

Snom M10 Technical Features

Backlit Keypad

The M10 Handset has backlit keys, ideal for low light conditions.

DECT

The Handset communicates using radio standard for telecommunications - Digital Enhanced Cordless Telecommunications (DECT).

Standard DECT - Frequency Band - 1,880 - 1,900 MHz.

GAP Compatible

GAP - Generic Access Profile is a signaling protocol defined by the European Telecommunications Standard Institute (ETSI), this enables devices from different manufacturers to be interconnected. The protocol enables only the simplest functions such as registering the Handset - answering a call, establishing a connection, holding and terminating the connection.

All other functions provided by the DECT protocol of the respective manufacturer are not supported by GAP.

Talk Time

The Snom M10 SC offers up to 9 hours of talk time and up to 1 week of standby time.

Belt Clip

The M10 Handset comes with a built in Belt Clip.

Headset Port

2.5mm Jack Port enables Headsets to be connected.

OTA Updates

The M10 SC Handset can receive updates via radio, i.e Over the Air (OTA), as a rule DECT Handsets need to be in their Charging Cradle for the OTA updates to take effect.

Weight and Dimensions

• Handset Dimensions - 173 mm × 49 mm × 27 mm
• Charging Cradle Dimensions - 54 mm × 76 mm × 82 mm
• Handset Weight - 195g

Display

• TFT Liquid Crystal Display (LCD) Monocolour, Graphical, Backlit (Blue/White)
• Resolution 90 x 65 Pixels

LED Indicators

• Message Waiting Indication (MWI) - 1 Red LED
• Function Key Status Indication - 4 Green LED's

Keypad and Function Keys (29 in Total)

• 12 Keys (Standard ITU Telephone Keypad), Backlit
• 2 Way Navigation Key (DIR / CID)
• 2 Context Sensitive Function Keys
• 4 Programmable Function Keys (with Green LED's)
• 4 Dedicated Audio Keys - Mute, Speakerphone, Volume+, Volume-
• 5 Dedicated Function Keys - Cancel, Menu / Select, Hold, Redial, Intercom, Keypad Lock

Package Contents

• Snom M100 SC Base Station
• Ethernet Cable
• Wall Mount Plate
• Snom M10 SC DECT Handset
• 2.4V , 550 mA, Ni-MH Battery
• Charging Cradle
• Power Adapter
• Belt Clip
• Quick Installation Guide (QIG) x 2 (1 for Base Station and 1 for Handset)
