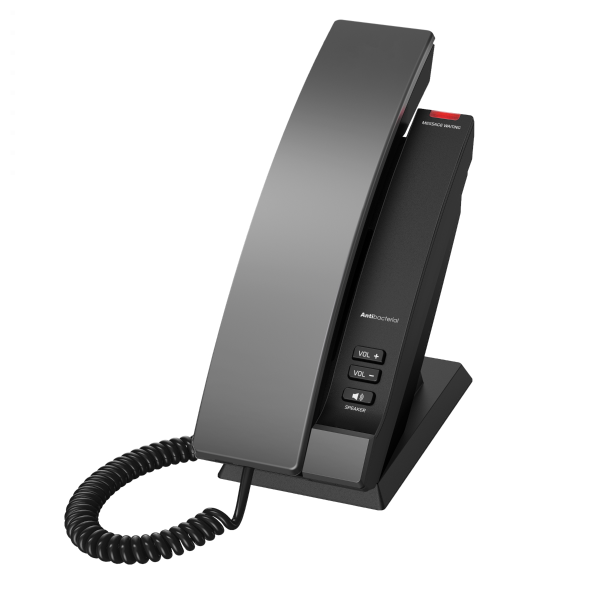

Snom HD100 Hotel / Hospitality Phone

A Modern, Sleek Design Hotel / Hospitality Phone with Anti-Bacterial Housing that Protects Against Bacteria and Germs

About the Snom HD100

The Snom HD100 is a comfortable, slimline and modern Hotel Phone offering features that include speed dialing to all other Hotel facilities and rooms, Handsfree Calling and Mute.

The PoE (Power over Ethernet) power supply and the Gigabit Ethernet Connection enable the Phone to be integrated into a centrally managed future proof network infrastructure, and no additional power connection is required in the room.

All of the settings on the HD100 can be administered centrally. Antibacterial Housing protects against germs and bacteria,and makes it easier to clean.

The large visual LED call and message indicators alert guests to any calls or waiting messages. Individual labeling options offer that personal touch for exclusive Hotel branding and dialing functions.

No storage of personal data such as dialed numbers are stored in the phone, maintenance and setup is done remotely.

Antibacterial Housing

The Snom HD100 has been designed with Antibacterial Housing which is certified according to the Japanese JIS-Z2801, meaning that the Antibacterial Housing protects against germs and bacteria.

Power over Ethernet (PoE)

The HD100 receives power via a connected Network Cable - this is providing the network switch used supports this and has enough power to supply all connected devices.

Due to the Snom HD100 being Power over Ethernet (PoE) a Power Supply Unit (PSU) is not supplied with the Phone.

Features

• HD Audio
• Antibacterial Housing
• Power over Ethernet (PoE)
• Large LED Call / Message Indicator
• 4 Programmable Function Keys
• 3 Dedicated Audio Keys
• Desktop and Wall Mountable

Technical Specifications:

Indicators and Keys

• 2 LED Indicators - 1 Red LED On Corded Handset for Mute Status Indication, 1 Red LED on Telephone Base for Call Status Indication, Message Waiting Indication (MWI)
• 26 Hard Keys in Total on Corded Handset - 12 Keys (Standard ITU Telephone Keypad), 3 Dedicated Audio Keys - Mute with Red LED, Volume +/-, 2 Programmable Function Keys for Speed Dialing, 2 Dedicated Function Keys for Emergency and Message
• 3 Dedicated Audio Keys for Speakerphone with Red LED, Volume +/- and 4 Programmable Function Keys - 2 for Speed Dial and 2 for Emergency on Telephone Base

Audio Devices and Features

• Telephone Base - Casing Microphone, Casing Speaker, Speakerphone Mode via Dedicated Function Key)
• Corded Handset - Microphone, Handset Earpiece, Hearing Aid Compatible (HAC)
• Built in Assignable Ringtones

Interfaces and Connections

• Power Options - Power over Ethernet (PoE) - IEEE 802.3af, Cass 2, Power Adapter (Not Included) - 100 - 240 V AC / 50/60 Hz / 500 mA / 5 V DC/ 2 A
• Wired Interfaces - Ethernet 1 Gbit/s - RJ45-8P8C Socket, Corded Handset - RJ9-4P4C Socket, Power Adapter Coaxial Power Connector (Socket)

Call Features

• 1 SIP Identity / Account
• Speed Dialing via Function Keys
• Mute Microphone (Via Dedicated Function Key)
• Multicast Paging

Interoperability

• Interoperable with all Major IP-PBX Platforms

Package Contents

• Telephone Base
• Corded Handset
• Foot Stand
• Wall Mount Kit
• 2 Ethernet Cables - Cable Length Approximately 140mm / 2m
• Quick Installation Guide
