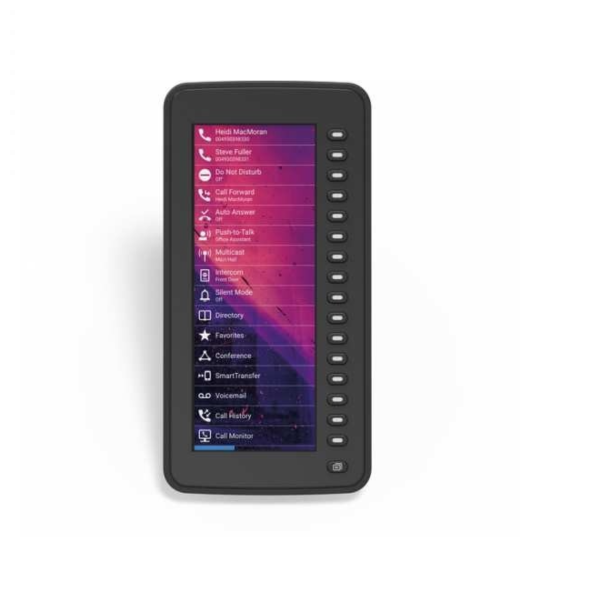

Snom D7C - Colour Expansion Module

Snom D7C - Colour Expansion Module

Large 6.8 TFT Colour Screen, Dual Angled Foot Stand - 46° and 28°, Plug and Play, Daisy Chain up to Three Modules, Multicolour LED Function Keys, 16 Freely Programmable Function Keys, 3 Virtual Pages for up to 48 Keys Per Module

The Snom D7C is the most modern and advanced Expansion Module to date for the Snom D785, D765, D735 and D717 Telephones.

The Snom D7C features a High Resolution Colour Display with a completely redesigned user interface. Connected to a Snom phone via USB, the Snom D7C adds another large screen and many useful functions to many Snom phones. With the help of the 16 physical (48 virtual) freely programmable LED function keys, for example, the status of colleagues can be quickly recognised and the corresponding number can be dialed or a call forwarded. If the corresponding line or the LED function line lights up green, the colleague is available and can take a call.

And for those who want a complete overview, up to three D7C's can be connected in series to massively expand the range of functions. Thanks to USB Plug and Play, this has never been easier.

The configuration of the Snom D7C also works by itself. You can choose whether you want to configure the Snom D7C via the existing Telephone System or via the Snom web interface.

The Snom D7C is a modern extension for the Snom phones D785, D765, D735 and D717 and convinces with a large, High Resolution Colour Display, a wide range of applications and easy installation.

48 Freely Programmable Keys

Full control thanks to 16 physical and 48 virtual, freely programmable function keys that can be scrolled through on up to 3 pages. This allows even large VoIP installations to be easily managed and monitored.

High Resolution Colour Screen

The Snom D7C is designed with a High Resolution 6.8 Inch Colour Screen that clearly displays all important information. Apart from that the background image on the Snom D7C can be freely adjusted.

Expandable

The Snom D7C can be expanded by up to two additional D7C per phone. The devices are simply connected in series using a USB cable and thus flexibly expand the range of functions. The more devices are connected, the more function keys are available. With up to three Snom D7C's, up to 144 extensions can be displayed. In order not to loose the overview Snom have massively revised the user interface of the Snom D7C and offer many useful functions to keep everything important in view.

Benefits

• Large High Resolution Colour Screen
• Daisy Chain up to 3 Modules - (When Two or Three Modules are used with One Phone, Additional Power Supplies are Needed)
• Power Supplied by the Telephone via USB - When Two or Three Modules are used with One Phone, Additional Power Supplies are Needed)
• 16 Freely Programmable Function Keys
• 3 Virtual Pages for up to 48 Keys Per Module
• USB Output for USB Accessory Usage
• Multicolour LED Function Keys
• Modern Design
• Theme and Icon Support
• Custom Background Image Support
• Activity Page for Better Overview - (With future Firmware)

Features

• 6.8 Inch (17.2cm) TFT Colour Screen
• Dedicated Button for Toggling Pages
• Dual Angle Foot Stand - 46° and 28°
• Icon Supported Function Keys
• Additional Features with Future Firmware Updates

Installation

• Plug and Play
• Completely Configurable via Host Phone

Specifications

• Dimensions - 160mm x 105mm x 220mm Approximately At High Angle , 120mm x 105mm x 220mm Approximately At Low Angle
• Input Voltage - 5Vdc (SELV)
• Power Supply - USB or 5Vdc Power Adapter, 10 Watts (Power Supply is Optional Accessory and Not Included)
• USB 2.0 Cable with Angled Type A Plug
• USB 2.0 Port, Type A

Package Contents

• D7C Expansion Module
• Foot Stand
• Connector Clips
• Quick Installation Guide
