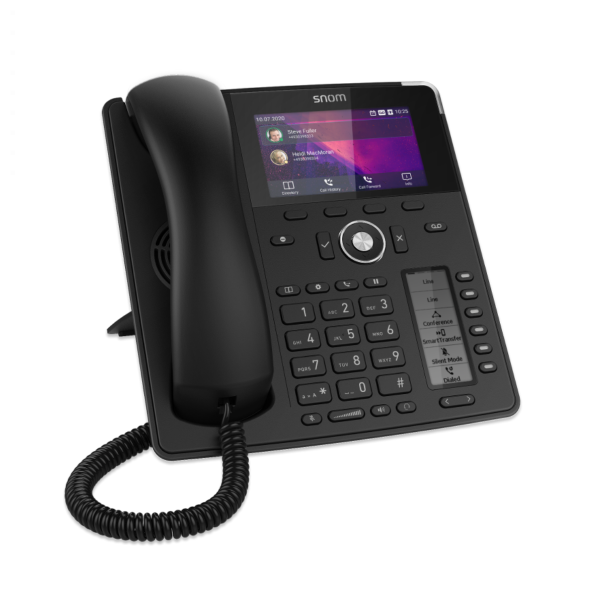

Snom D785N VoIP Desk Phone - (No PSU)

The Snom D785N is Part of the Next Generation of VoIP Phones in the Snom Range - With all the Same Features as the Snom D785 but without Bluetooth

About the Snom D785N

The Snom D785N belongs to the latest generation of advanced Snom VoIP phones. Elegantly designed and featuring a large high resolution colour display and a convenient second screen for dynamic configuration management of the 24 function keys (6 physical) this VoIP phone has all the functions necessary to fulfill even the most demanding requirements.

Featuring an integrated Digital Signal Processor (DSP), the Snom D785N has unprecedented HD audio quality. Based on 20 years of experience in audio engineering, Snom provides the best sound quality for every application.

The timeless, modern design of the Snom D785N, combined with all its advanced features is perfect for any working day. The newly designed user interface and second screen make using this telephone more intuitive than ever.

Thanks to the second integrated display many applications can be managed quickly and easily. The D785N allows you to set up 24 one-touch keys to manage group calls and speed dial/function keys by displaying all information dynamically.

Benefits

• Digital Signal Processor (DSP) Enhanced Audio Quality
• Wide band Hands Free Talking
• Wall Mountable
• Dual Angled Footstand - 46° and 28°
• Improved Graphical User Interface
• Up To 24 BLF Keys (16 Physical)
• Dedicated Display for Extension Monitoring
• High Resolution 4.3" TFT Colour Display
• Electronic Hook Switch (EHS) - Support for Wireless Headsets
• Support for USB Wi-Fi Stick

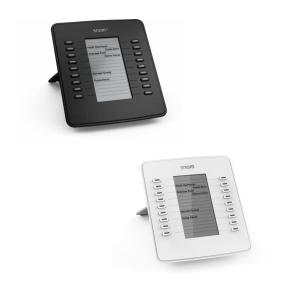

• D7 Expansion Module Ready
• USB Headset Ready
• Power Over Ethernet IEEE 802.3af, Class 3
• 2-Port, 1-Gigabit Ethernet Switch (RJ45) IEEE 802.3

Technical Specifications:

Directory Support and Call Features

• 12 SIP Identities / Accounts - Up to  12 Simultaneous Calls
• Directory Support - LDAP Server Based Directory
• Local Directory with 1000 Entries
• Outgoing Call Features - Speed Dialing via Function Keys, URL Dialing, Local Dial Plan, Redial via Dialled Calls List, Automatic Redial on Busy, Call Completion (Busy/Unreachable) - If Supported by PBX, Caller Identification (CLIP), Calling Line Identification Restriction (CLIR), Intercom, Multicast Paging
• Incoming Call Features - Call Waiting / Swapping, Call Blocking (Deny List), Anonymous Calls, Do not Disturb Mode (DND), Auto Answer, Hold, Music on Hold - If Supported by PBX, Blind and Attended Transfer, 3 Way Local Conferencing, Extension Monitoring, Call Pickup - If Supported by PBX, Call Park, Call Unpark - If Supported by PBX, Multicast Paging, Client Matter Code (CMC) - If Supported by PBX

Display and Indicators

• Display - TFT Liquid Crystal Display (LCD) - True Colour Backlit
• Resolution - 480 x 272 Pixels
• Size (Diagonal) - 4.3 Inches (109mm)
• Size (W x H) - 95mm x 54mm
• Smart Display - TFT Liquid Crystal Display (LCD) Monochrome, Graphical
• Resolution - 254 x 100 Pixels
• Size (Diagonal) - 2.8 Inches (70mm)
• Size (W x H) - 66mm x 23mm
• 11 LED Indicators - Call Status Indication - 1 Red LED
• Message Waiting Indication (MWI) - 1 Red LED
• Function Key Status Indication - 6 Multicolour LED's
• Audio Key Status Indication - 3 LED's - 1 Red / 2 Green

Keypad and Function Keys

• 42 Hard Keys in Total - 12 Keys (Standard ITU Telephone Keypad), 5 Way Navigation Key, 4 Context Sensitive Keys
• Programmbale Function Keys - 6 SmartLabel Keys (With Multicolour LED, Key Mapping of up to 24 Functions (6Keys x 4 Pages
• 5 Dedicated Audio Keys - Mute (with Red LED), Speakerphone (with Green LED), Headset (with Green LED), Volume +/- (Rocker)
• 10 Dedicated Function Keys - Ok, Cancel, DND, Message (with Red LED), Directory, Menu, Transfer, Hold, Page (Rocker)
• Expamsion Module COnnection Via USB Port for up to Snom D7 Expansion Modules
• Keyboard Lock

Audio Devices, Codecs and Features

• Casing Microphone, Casing Speaker
• Speakerphone Mode - Full Duplex, HD Audio
• Corded Handset - Microphone, Handset Earpiece, Hearing Aid Compatible (HAC)

Interoperability

• Certfied VoIP Partner

Package Contents

• Snom D785N VoIP Phone
• Footstand
• Corded Handset
• Ethernet Cable
