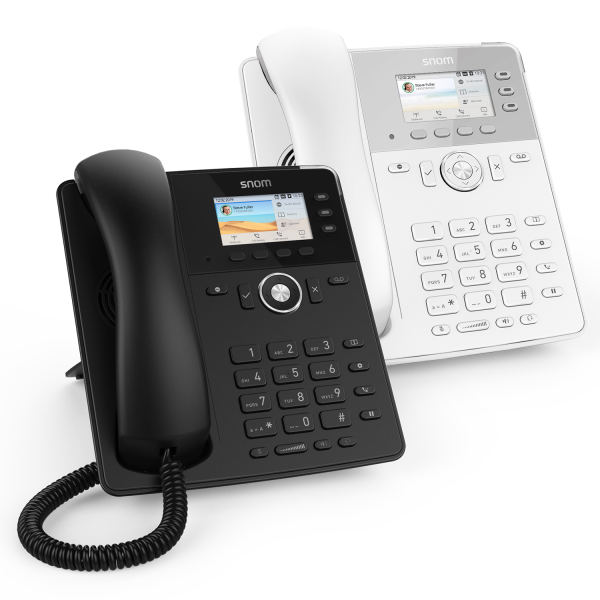

Snom D717 IP Desk Phone - No PSU

Available in Black or White

The Snom D717 is a Professional Desktop Phone as well as a cost effective entry level device for the world of VoIP telephony. Its an advanced IP Phone and features a high resolution colour display that is second to none in its price segment and also features a unique and innovative brightness and proximity sensor.

The proximity sensor reacts as soon as the user's hand nears the display or the function keys of the IP phone and then displays frequently used features and called numbers. In addition, the sensor ensures that the brightness of the telephone display is always adjusted to the current lighting conditions in the room, reducing the carbon footprint of each device.

The Phone also has Multi-Colour LED Function Keys in addition to the High Resolution Colour Display, and an integrated gigabit switch and USB Port ensuring the complete range of connectivity options are available.

The Snom D717 is available in both Black and White colour options.

Combining state of the art technology, the best voice quality and clear design in one device at an unbeatable price, the Snom D717 is the perfect device for the world of professional IP telephony.

Benefits

• Wide Screen High-Resolution TFT Display
• Integrated Light Sensor
• 3 Self-Labeling Function Keys
• Wideband Hands-Free Talking (Speakerphone)
• Digital Signal Processor (DSP) Enhanced Audio Quality
• 2-Port Gigabit Ethernet Switch (RJ45)
• Power over Ethernet IEEE 802.3af, Class 2
• USB Headset Ready (USB Headset not Included)
• D7 Expansion Module Ready (Expansion Module not Included)
• Support for USB WLAN Stick (WLAN Stick not Included)
• Electronic Hook Switch (EHS) Support for Wireless Headsets (EHS not Included)
• Dual Angle Footstand - 46° and 28°

Features

• 6 SIP Identities / Accounts
• XML Browser
• Call Lists for Dialed, Received and Missed Calls
• Local Directory with 1000 Entries
• Multiple Language Support
• DTMF In-Band / Out-of-Band SIP-INFO
• Interoperable with all Major IP PBX Platforms

Call Features

• Speed Dialing
• URL Dialing
• Local Dial Plan
• Automatic Redial on Busy
• Call Completion (Busy/Unreachable) - If Supported by PBX
• Caller Identification
• Call Waiting
• Call Blocking (Deny List)
• Auto Answer
• Hold
• Music on Hold - If Supported by PBX
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conferencing on the Phone
• Extension Monitoring, Call Pickup - If Supported by PBX
• Call Park, Call Unpark - If Supported by PBX
• Multicast Paging
• DND Mode (Do not Disturb)
• Keyboard Lock
• Client Matter Code (CMC) - If Supported by PBX
• Unified Communications Ready

Audio Features

• Codecs - G.711 A-law, µ-law, G.722 (wideband), G.726, G.729AB, GSM 6.10 (FR)
• Built-In Assignable Ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

Setup

• Configurable through Web Interface
• Provisioning - Automatic Loading of Settings via HTTP/HTTPS/TFTP
• DHCP Options 66/67
• Snom Redirection Service
• Remote Management via TR-069 / TR-111

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface

• Localisation (Language, Time, Dial Tone)
• Red LED for Call Indication / Message Waiting
• 4 Context Sensitive Keys
• 3 Programmable Line / Function Keys with Multicolour LED's
• Dedicated Keys for - Message, DND, Directory, Menu, Transfer, Hold, Page
• Audio Keys with LED Indication - Mute, Speakerphone, Headset
• Volume Key
• 5 Way Navigation Key
• OK and Cancel Keys
• Automatic Backlight Enabled

Security

• 802.1X Authentication and EAPOL
• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS Server/Client
• Password-Protected Web Interface
• VPN-Support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR

Phone Features

• Approximate Dimensions - 205mm x 185mm x 40 mm (L x W x D) Without Foot Stand, 205mm x 185mm x 200/220mm (L x W x D) With Footstand
• Weight - Device 710g, Footstand 120g (Approximately)
• Input Voltage - 5Vdc (SELV)
• Power Supply - PoE or 5Vdc Power Adapter (Power Adapter not Included)
• Handset - 4P4C
• Headset - 4P4C
• Hearing Aid Compatible Handset (HAC)

Package Contents

• Snom D717 IP Desk Phone
• Footstand
• Handset with Cord
• Ethernet Cable
• Quick Start Guide
