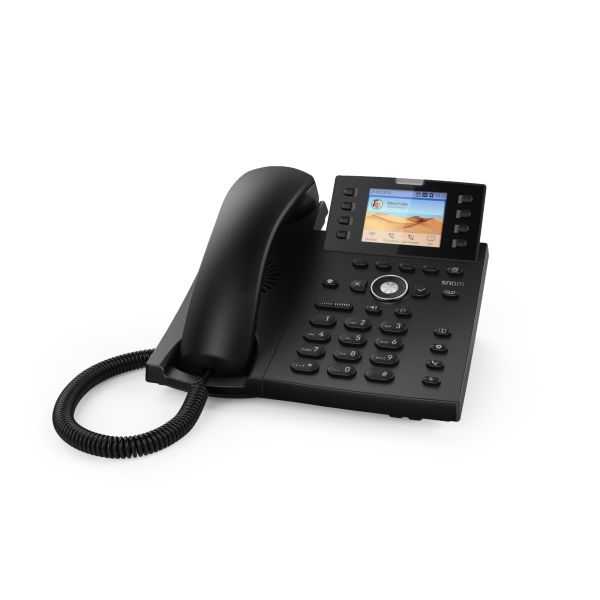

Snom D335 IP Desk Phone

Snom D335 IP Desk Phone

The Snom D335 is the flagship Phone of Snom's 3 Series, designed with a high resolution TFT Colour Display which is framed by 8 Physical, Freely Programmable Function Keys. In addition thanks to the the integrated DSP Processor, it offers the familiar HD sound when making calls. But the real highlight of the device is the integrated smart proximity sensor, with which the user interface of the phone can be controlled.

If the users hand approaches the Phones Display or Function Keys, the Display activates automatically and shows all relevant information on key assignment. This allows even more information to be shown on the Display without compromising clarity.

But that's not all - The Snom D335 includes an Integrated Gigabit Switch with Power over Ethernet (PoE) functionality, a USB Port to connect various additional devices such as the Snom USB Stick or the Snom D3 Expansion Module and much more.

Features

• High Resolution TFT Display
• 32 Self Labelling Function Keys (8 Physical)
• Sensor Technology Enables Responsive UI
• Wideband Hands-Free Talking (Speakerphone)
• Digital Signal Processor (DSP) Enhanced Audio Quality
• 2 Port Gigabit Ethernet Switch (RJ45)
• Power over Ethernet IEEE 802.3af, Class 2
• USB Headset Ready (Headset Not Included)
• Snom D3 Expansion Module Ready
• Support for USB Wi-Fi Stick
• Electronic Hook Switch Support for Wireless Headsets (EHS Cable & Headset not Included)
• Dedicated Button for Page Toggling
• Light Sensor
• Proximity Sensor
• USB Port
• IPv4 & IPv6

Features

• 12 SIP Identities | Accounts
• XML Browser
• Call Lists for Redial, Missed and Received Calls
• Local Directory with 1000 Entries
• Multiple Language Support
• DTMFF In Band, Out of Band, SIP Info
• Interoperable with all Major IP PBX Platforms

Call Features

• Speed Dialing | URL Dialing
• Local Dial Plan
• Automatic Redial on Busy
• Call Completion (Busy/Unreachable) - If Supported by PBX
• Caller Identification
• Call Waiting
• Call Blocking (Deny List)
• Auto Answer | Hold
• Music on Hold - If Supported by PBX
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conferencing on the Phone
• Extension Monitoring Pickup - If Supported by PBX
• Call Park, Call Un Park - If Supported by PBX
• Multicast Paging
• DND Mode (Do not Disturb)
• Keyboard Lock
• Client Matter Code (CMC) - If Supported by PBX
• Unified Communications Ready

Audio

• Codecs - G.711 A-law, µ-law, G.722 (Wideband), G.726, G.729AB, GSM 6.10 (FR)
• Built-in Assignable Ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

Set-Up

• Configurable Though Web Interface
• Provisioning - Automatic Loading of Settings via HTTP/HTTPS/TFTP, DHCP Options 66/67, Snom Redirection Service, Remote Management via TR-069 / TR-111

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface

• Localisation (Language, Time, Dial Tone)
• Red LED for Call Indication/Message Waiting
• 4 Context-Sensitive Keys
• 32 (8 Physical) Programmable Line / Function Keys with Multicolour LEDs
• Dedicated Keys for - Message, DND, Directory, Menu, Transfer, Page Toggle
• Audio Keys - Mute, Speakerphone, Headset
• Volume Key
• 4 Way Navigation Key
• OK and Cancel Keys
• Sensor Assisted User Interface

Security

• 02.1X Authentication and EAPOL
• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS Server/client
• Password Protected Web Interface
• VPN Support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR

Phone Features

• Dimensions (Approx.) - 198mm x 198mm x 120mm (LxWxH)
• Weight (Approx.) - 800g
• Hearing Aid Compatible Handset
• 1x USB-A Port
• Power Supply - PoE or Optional 5Vdc Power Adapter (Not Included)

Package Contents

• Snom D335 IP Desk Phone
• Foot Stand
• Handset with Cord
• Ethernet Cable
• Quick Start Guide
