Snom D120 IP Desk Phone - (No PSU)

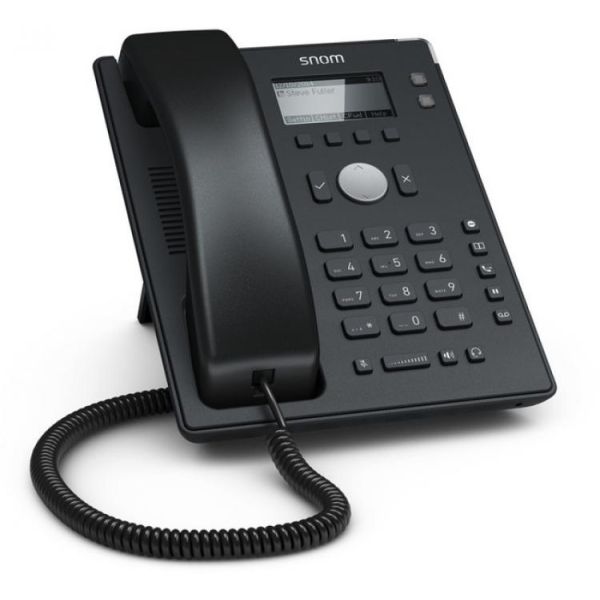

Snom D120 IP Desk Phone

With two SIP lines, the Snom D120 brings a higher level of functionality and adaptability to affordable entrylevel IP desk phones. Incorporating a black and white backlit graphical display, the D120 enables a clear overview of call and function key information to really stand out in a crowd of similar desk phones.

The Snom D120 also features a 360 degree call indicator, meaning incoming calls, calls in progress and waiting messages can be seen at a distance from the device. Four context sensitive function keys can be easily configured for a number of time saving short cuts, in addition to 5 fixed function keys for an intuitive user experience. The D120 is affordably priced and has low power consumption thanks to Power over Ethernet (PoE) Connectivity, which helps to reduce running costs.

Key Features

• 2 SIP Identities
• Low Power Consumption (PoE)
• Backlit Graphical Display
• 360 Degree Call/Message Indicator
• 4 Context Sensitive Function Keys
• 5 Function Keys
• XML Browser
• Call Lists for Dialed, Received and Missed Calls
• Directory with 250 Entries
• Languages - English, French and Spanish
• Additional Language Support Via Provisioning
• In-Band DTMF/Out-of-Band DTMF/SIP Info DTMF
• Interoperable with all Major IP-PBX Platforms
• **UK Power Supply (PSU) Not Included - Can Be Purchased Separately - See Related Products Below**

Benefits

• Graphical Display - 132 x 64 Pixels with Backlight
• Single Position Footstand - 35°
• Wall Mountable (Wall Mount Purchased Seperately)
• Handsfree Talking (Speakerphone)
• Digital Signal Processor (DSP) Enhanced Audio Quality
• 2 Port 10/100 Mbps Ethernet Switch
• Power Over Ethernet IEEE 802.3af, Class 1
• SHA-2 Based Secure Provisioning

Call Features

• Speed Dialing
• URL Dialing
• Local Dial Plan
• Automatic Redial on Busy
• Caller Completion (Busy/Unreachable) - If Supported by PBX
• Caller Identification
• Call Waiting
• Call Blocking (Deny List)
• Blocking of Anonymous Calls - If Supported by PBX
• Auto Answer
• List of Missed, Received and Dialed Calls
• Hold
• Music on Hold - if Supported by PBX
• Handling of up to 2 Simultaneous Calls
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conference on the Phone
• Call Pickup - If Supported by PBX
• Call Park, Call Unpark - If Supported by PBX
• Multicast Paging
• DND Mode (Do Not Disturb)
• Keyboard Lock

Audio

• Codecs - G.711 A-law, μ-law, G.722 (Wideband), G.726, G.729AB, GSM 6.10 (FR)
• 10 Built-In Assignable Ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Dectection (VAD)

Set Up

Configurable Through Web Interface

• Provisioning - DHCP Options 66/67, Plug and Play (PnP)
• Snom Redirection Service
• Remote Management via TR-069

Specifications

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP/HTTPS/TFTP
• LDAP (Directory)
• Dual Stack IPv4/IPv6

User Interface

• Number of Keys - 32
• Line Keys with LED - 2
• Dedicated Keys - DND, Directory, Transfer, Hold, Message
• Context Sensitive Function Keys - 4
• Navigation Keys - 2 (Up/Down)
• Audio Keys - Mute, Speakerphone, Volume Control
• Redial Via Call List (OK Key)
• High Visibility Red LED for Call Indication/Message Waiting - If Supported by PBX
• Menu Driven Interface
• Localization - Language, Time, Dial Tone

In the Box

• Snom D120 IP Desk Phone
• Handset
• Curly Cord
• Desktop Stand
