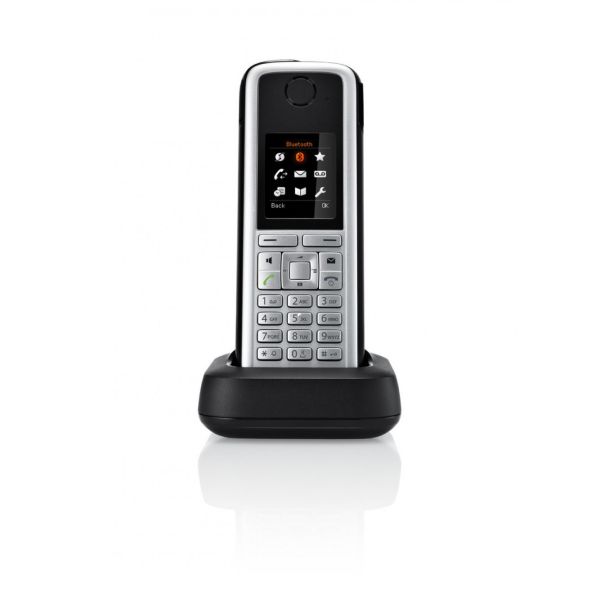

Siemens Gigaset Openstage M3 Handset

The OpenStage M3 DECT handsets are a family of wireless devices designed to perform in harsh environments. The family comes with variants covering different alarm options and also use in potentially explosive environments where moisture, dirt, shocks or high ambient noises could compromise communication quality. With its device protection class of IP65 it suited perfectly for these scenarios. Although the OpenStage M3 family is designed for these environmental conditions, it looks exquisite with its large 1.8” TFT colour display and with an up to date user interface. As well as great style, it offers optimum functionality, with excellent voice quality optimized for noisy environments, Bluetooth interface and its black/silver color.
The OpenStage M3 handsets are the successors of the Gigaset M2 professional handsets.

Multi-Cell Capability

• Roaming
• Seamless connection Handover during a call
• Bearer handover in case of disturbances
• Display message when leaving the radio network

Security

• Encrypted voice transmission regarding DECT standard
• Secure system logon

Keypad

• Illuminated keypad
• MWI (Message Waiting Indicator) key
• 5-way navigation key
• Keypad lock on/off
• Key for all ringers off
• Talk key functions:
• when pressed briefly: redial list
• when held down: dial state
• Free programmable Display-key
• 2-way side key for simple volume control during a call

Case

• Case Protection Class IP65
• Protection against water jets
• Protected against dust
• Shockproof, unbreakable case
• Silicon-free case surface
• Sturdy carrying clip

Display

• Illuminated graphical display
• brilliant TFT display, 65k color, 128*160 pixel resolution
• Color scheme and screen saver settings
• Display of fonts and symbols in different situations in large fonts
• Configurable timeout of the display
• Display-Languages of the Handset (26 languages):
• German, English, French, Italian, Spanish, Portuguese, Dutch, Danish, Norwegian, Swedish, Finnish, Czech, Polish, Turkish, Greek, Hungarian, Russian, Croatian, Slovenian, Roman, Serbian, Catalan, Bulgarian, Bosnian, Ukrainian, Arabian

Display in Idle State

• Status display:
• Battery charging
• Received field strength
• Ring tones off
• Warning tone on
• Keypad lock on
• Bluetooth activated
• Local editing of base station name
• Notices of (Display-indicate with the first off hock):
• own call number
• Date and time

Screensaver

• Picture out of media pool store
• alternative to pictures: analogue or digital clock
• Screensaver replaces the notices in idle

Settings

• Handset is preset
• Individual settings
• Fast access on functions and numbers
• Assignment of numeric key/ display key
• Display: Language, Colour-Schema, Contrast, Illuminating, Screensaver
• Automatic Call acceptance on/off
• handsfree-/earpiece volume
• ring tones, melodies

Media Pool Administered:

• Monophonic ring tones (Sounds)
• Polyphone melodies (Sounds)
• Pictures for Screensaver

Alarm Clock

• activated/deactivated
• Period: Monday – Friday or daily
• Wake-up call is signaled with selected Sound

Appointments (Calendar)

• They can remember let up to 30 appointments
• Appointments of the day are indicated,
• Appointment can be supplemented with text,
• Appointment call is signaled with selected Sound,
• Indicated text, date and time are indicated.
• List of missed appointments

Phone Book

• Storage possibility of the directory
• Up to 500 entries for all directories
• Fast access on a number (speed dialing)
• Up to three phone numbers with accompanying name, surname (private/office/mobile), e-mail address, appointments with signaling, VIP-notation, CLIP pictures
• phone book administration via PC (Gigaset QuickSync = PC application)
• via Bluetooth-Interface
• via Mini- USB interface
• Saving/loading phone book data from/to HiPath Manager (HiPath Cordless Enterprise)
• Access to System phone book
• LDAP system telephone database (only with HiPath Cordless Office/HiPath Cordless IP)
• HiPath Manager (HiPath Cordless Enterprise)

Message Signaling

• Illuminated MWI (Message Waiting Indication) key alerts users of new messages
• Signaling of the new message through press the MWI-key

Call Signaling

• Automatic call acceptance when the handset is removed from the charging unit (configurable)
• Silent alarm (vibration alarm)
• Visual/acoustic call signaling
• Display of call number and caller name
• Distinction between internal and external calls
• Ring tones and melodies:
• 5 standard ringer tones
• 15 polyphonic ringer melodies
• Ring tones can be deactivated while attention tone is activated
• Setting of different ringers for internal and external calls
• Volume can be set in 5 steps plus crescendo

Handset Lock

• with 4-digit PIN

Battery

• Lithium-Ionen battery pack
• capacity: 1000mAh
• a battery pack is supplied with the phone
• Charging
• in power-off mode
• in power-off mode with activated PIN protection
• in operating mode
• Low battery warning tone (configurable)

Headset Connection Via:

• Corded: 2,5 mm jack
• Cordless: Bluetooth
• Tested Corded- Headsets:
• Jabra/GN2000
• Jabra BIZ 2400
• Jabra BIZ 1900 Mono
• -> the Jabra adapter cable 880-00-55 is required to connect Jabra/GN headsets

Tested Cordless (Bluetooth)- Headsets:

• Jabra Supreme UC
• Jabra Motion UC
• Jabra GO 6430
• Plantronics Voyager PRO UC V2
• Accessories (e.g. carrying aids) 2
• One Belt clip is supplied with the phone

PC Interface

• Bluetooth, Mini- USB
• Bluetooth Specification: V2.1, the following profiles are available:
• Headset-HSP, Data-SPP, Handset-HFP, Object-Push- profile OPP

PC Application

• Gigaset QuickSync
• Phone book synchronization
• Loading from Screensaver, CLIP-pictures, melodies and ringer tones
• Compatible with HiPath Positioning System (HPS)
• Localization of mobile users (only with HiPath Cordless Enterprise) using HiPath Positioning System
