Project Telecom PT103-CB Autodial Outdoor Phone

The Project Telecom PT103-CB Autodial Outdoor Phone is a heavy-duty industrial communications solution designed for locations where rapid access to reliable voice communications is essential.

Featuring simple lift-to-call autodial operation, the PT103-CB allows users to immediately connect with a pre-programmed contact simply by lifting the handset, making it ideal for emergency help points, transport infrastructure, public-access locations and industrial facilities. Available with Analogue, SIP or GSM / 4G connectivity, the PT103-CB can be integrated into traditional telephone systems, modern IP networks or mobile communications infrastructure, providing a flexible solution for a wide range of applications.

Featuring a rugged corrosion-resistant die-cast aluminium enclosure, open-access weatherproof design, vandal-resistant construction and IP66-rated weather protection as standard, this heavy-duty telephone is engineered to deliver dependable communications in demanding industrial and outdoor environments. Available in Yellow, Blue, Red and Grey finishes, the PT103-CB can be selected to suit site visibility requirements, safety standards or installation preferences.

Ideal for factories, warehouses, manufacturing facilities, transport hubs, utility sites, ports, marine environments, tunnels, car parks, security installations, construction projects and public assistance points, the PT103-CB combines exceptional durability with flexible connectivity options, making it well suited to critical communications and infrastructure applications.

Designed for Demanding Environments

The PT103-CB has been specifically engineered for locations where conventional telephones may be exposed to harsh weather, dust, moisture, impacts or vandalism. Manufactured from corrosion-resistant die-cast aluminium, the telephone provides outstanding protection and long-term performance in challenging industrial and outdoor environments.

Its IP66-rated enclosure protects against dust ingress and water exposure, making it ideal for exposed outdoor installations. Unlike traditional weatherproof telephones that utilise a protective front door, the PT103-CB features an open-access design that provides immediate access to communications without requiring users to open a cover before use.

Whether deployed in manufacturing plants, warehouses, rail networks, ports, tunnels, utility facilities, construction sites, transport infrastructure or public-access areas, the PT103-CB is built to provide reliable communications where performance and durability cannot be compromised.

Its vandal-resistant construction, armoured handset cord and heavy-duty components make it particularly suitable for public-facing environments, remote locations and critical infrastructure applications where equipment must continue operating despite heavy daily use, accidental damage or deliberate abuse.

Simple Autodial Operation & User-Friendly Design

The PT103-CB has been designed for simple and intuitive operation in demanding environments. Unlike conventional telephones requiring manual dialling, the PT103-CB automatically initiates a call to a pre-programmed destination when the handset is lifted.

This lift-to-call operation enables immediate communication with security personnel, control rooms, help desks, emergency services or site management teams, helping to reduce response times and simplify user operation.

An integrated inductive coupler is fitted as standard to improve accessibility for hearing aid users, while the high-output warble ringer ensures incoming calls can be clearly heard in noisy industrial and outdoor environments.

Built for Long-Term Reliability

Designed for continuous operation in harsh conditions, the PT103-CB combines a corrosion-resistant die-cast aluminium housing and stainless-steel armoured handset cord to withstand years of demanding use.

With a calculated MTBF exceeding 50,000 hours, the PT103-CB is engineered to minimise maintenance requirements, maximise system availability and provide dependable communications in mission-critical applications.

The telephone incorporates an electric and magnetic hook switch with no visible moving parts, helping to further improve reliability whilst reducing wear and maintenance requirements.

Flexible Connectivity Options

The PT103-CB is available in three connectivity variants, allowing it to integrate into virtually any communications infrastructure.

Analogue Version

The analogue version connects directly to standard analogue telephone lines, including PSTN and PABX systems. Powered directly from the telephone line, it provides a simple and reliable communication solution for sites utilising traditional telephony infrastructure.

The analogue model supports remote configuration via DTMF programming and provides both lift-to-call autodial functionality and inbound call capability.

SIP Version

The SIP version connects directly to SIP telephone systems, IP-PBX platforms and VoIP networks via standard RJ45 Ethernet connections. Supporting SIP 2.0, dual SIP servers, PoE (Power over Ethernet) and web-based configuration, it provides a flexible and scalable communication solution for modern IP telephony environments.

The SIP model supports G.711A/u, G.722, G.723.1, G.726 and G.729 codecs, echo cancellation, VLAN support, DHCP, PPPoE and STUN, delivering enterprise-grade communication performance.

GSM / 4G Mobile Network Version

The GSM / 4G version communicates via GSM and 4G mobile networks using a Micro SIM card, providing a flexible communication solution where fixed telephone lines or IP networks are unavailable.

Supporting LTE FDD, LTE TDD, WCDMA and GSM frequency bands, the telephone can be remotely configured via SMS messaging and supports remote status reporting for simplified management of deployed units.

This version is particularly suitable for remote infrastructure, utility sites, transport networks, construction projects and temporary installations.

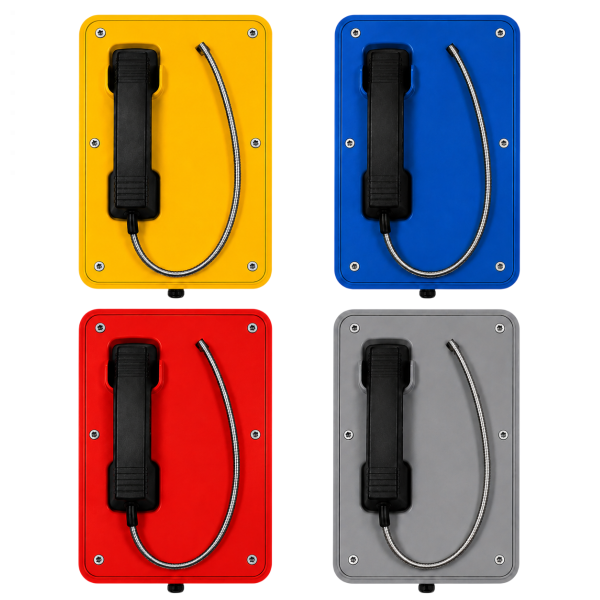

Available In Four Colours

The PT103-CB is available in Yellow, Blue, Red and Grey finishes, allowing the telephone to be selected to suit site requirements, visibility needs and installation environments.

Features

• Designed for Harsh Outdoor and Industrial Environments Including Warehouses, Factories, Manufacturing Facilities, Transport Infrastructure, Car Parks, Public Areas, Construction Sites, Ports, Docks and Airports
• Lift-to-Call Autodial Telephone Operation
• Available with Analogue, SIP or GSM / 4G Mobile Network Connectivity
• Open-Access Weatherproof Design
• IP66 Weatherproof Protection
• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Robust Vandal-Resistant Construction
• Impact-Resistant ABS Handset
• Stainless-Steel Armoured Handset Cord
• Electric / Magnetic Hook Switch with No Visible Moving Parts
• Inductive Coupler Fitted as Standard for Hard of Hearing Users
• High Quality Two-Way Voice Communication
• High Output Shrill Warble Ringer
• Non-Volatile Memory
• Remote Programming Capability
• GSM / 4G Remote Status Reporting
• Dry Contact Relays Available on Request
• Choice of Customised Labelling Available
• Easy Installation with Tamper-Resistant Mounting Bars and Fixings
• MTBF Exceeding 50,000 Hours
• CE, FCC and RoHS Compliant
• Available in Yellow, Blue, Red and Grey Finishes

Specifications

Connectivity Options

Analogue Version

• Standard Analogue Telephone Line Connection
• Compatible with PSTN and PABX Systems
• Lift-to-Call Autodial Operation
• Inbound Call Capability
• DTMF Remote Programming
• Powered Directly from Telephone Line
• MF (Tone) Dialling
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels

SIP Version

• SIP 2.0 (RFC3261) Compatible
• Supports Dual SIP Servers
• Supports Full Duplex
• RJ45 WAN Port (10/100Base-T Ethernet)
• RJ45 LAN Port (10/100Base-T Ethernet)
• Power over Ethernet (PoE)
• Optional 12V–24V DC Power Supply
• Web-Based Configuration Interface
• Compatible with SIP Telephone Systems and IP-PBX Platforms
• Supports G.711A/u, G.722, G.723.1, G.726 and G.729 Codecs
• G.168 Echo Cancellation
• DHCP, VLAN, PPPoE and STUN Support
• Bridge Mode Support
• SIP Authentication Support (None, Basic and MD5)

GSM / 4G Version

• GSM / 4G Mobile Network Operation
• Micro SIM Card
• 4G LTE FDD - B1 / B3 / B5 / B7 / B8 / B20
• LTE TDD - B38 / B40 / B41
• WCDMA - B1 / B5 / B8
• GSM - B3 / B8
• Remote Programming via SMS
• Remote Status Reporting
• 7.4V–12V DC Power Supply
• Idle Current - 75mA
• Off-Hook Current - 160mA

Construction

• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Impact-Resistant ABS Handset
• Stainless-Steel Armoured Handset Cord
• Electric / Magnetic Hook Switch
• Tamper-Resistant Mounting Bars and Fixings
• Open-Access Weatherproof Design
• Robust Vandal-Resistant Construction

Protection Ratings

• IP66 Weatherproof Protection
• Conforms to EN60529
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels (Analogue Version)
• Vandal-Resistant Construction

Audio Features

• High Quality Two-Way Voice Communication
• Shrill Warble Ringing Tone
• Approx. 80–90 dBA at 1 Metre (Version Dependent)
• Inductive Coupler Fitted as Standard

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +75°C
• MTBF Exceeding 50,000 Hours

Compliance

• CE Certified
• FCC Compliant
• RoHS Compliant

Version Specific Powering

• Analogue Version - Powered via Telephone Line
• SIP Version - PoE Powered (Optional DC Power Supply Available)
• GSM / 4G Version - Requires 7.4V–12V DC Power Supply

Dimensions & Weight

• Dimensions - 204mm x 334mm x 109mm
• Gross Weight - 6kg

Package Contents

• Project Telecom PT103-CB Autodial Outdoor Telephone with Open Front (Connection and Colour Option to be Selected at Checkout)
• Weatherproof Handset with Stainless-Steel Armoured Cord
• Tamper-Resistant Mounting Hardware
• User Documentation
