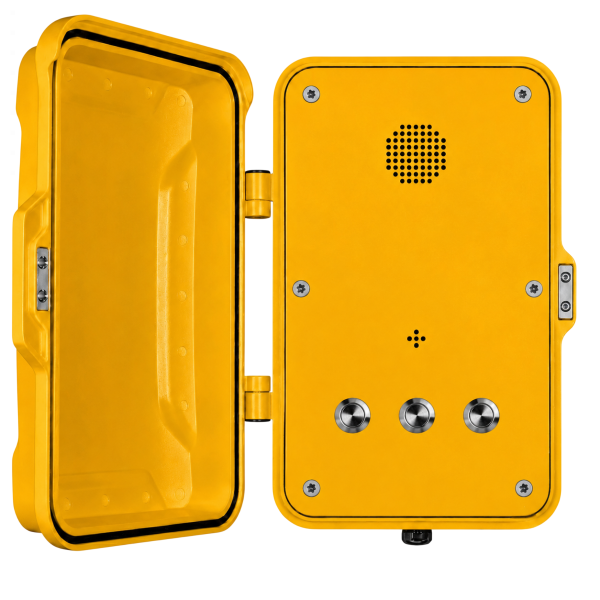

Project Telecom PT102-3B SIP Push-to-Call Outdoor Phone - Yellow

The Project Telecom PT102-3B SIP Push-to-Call Outdoor Phone is a professional-grade VoIP communications solution designed for dependable operation in harsh industrial, outdoor and public-access environments. Featuring triple push-to-call functionality, a weatherproof protective front door, IP66 weatherproof protection, vandal-resistant construction and SIP/VoIP connectivity, the PT102-3B delivers reliable communications where conventional telephones may be unsuitable.

Designed for factories, warehouses, transport infrastructure, utility sites, rail networks, ports, marine environments, tunnels, construction projects, car parks and public assistance points, the PT102-3B enables users to connect with one of three pre-programmed destinations at the press of a button. This three-button configuration provides greater flexibility, allowing separate contacts for functions such as security, customer assistance, maintenance teams, control rooms or emergency support services.

Its corrosion-resistant die-cast aluminium housing and weather-sealed front door help protect internal components against dust, moisture and harsh weather conditions, ensuring reliable operation in demanding environments.

Heavy-Duty Construction for Harsh Environments

Engineered specifically for industrial and public-access applications, the PT102-3B features a corrosion-resistant die-cast aluminium enclosure with an industrial epoxy powder-coated finish.

This robust construction provides excellent resistance to weather exposure, dust, moisture, impacts and vandalism. Tamper-resistant mounting bars and fixings further enhance security, making the PT102-3B suitable for exposed locations where dependable operation is essential.

Built to withstand years of continuous service, the telephone provides reliable performance in factories, transport infrastructure, utility facilities, marine environments, construction projects and other demanding applications.

Triple Programmable Call Buttons

The PT102-3B provides straightforward operation through three vandal-resistant stainless-steel call buttons. Users simply press the required button to automatically connect to one of three pre-programmed destinations without requiring manual dialling.

The three-button design provides greater operational flexibility, allowing organisations to offer direct access to multiple departments or support services from a single communication point. Typical applications include Security, Customer Assistance and Maintenance, Control Room, Technical Support and Site Management, or Emergency Assistance, Information Services and Operations.

This functionality makes the telephone particularly suitable for transport facilities, public help points, industrial communications systems and customer assistance locations where multiple contact options may be required.

SIP Connectivity

The PT102-3B SIP version is designed for deployment across modern IP telephone networks and VoIP infrastructures. Supporting SIP 2.0 (RFC3261), the telephone integrates with SIP PBX systems, hosted telephony platforms and enterprise communications networks.

The telephone supports dual SIP server registration, allowing flexible call routing and network redundancy. Configuration and management can be performed remotely through a web-based interface, simplifying installation and administration.

Power can be supplied via Power over Ethernet (PoE) or an optional 12V DC power supply, enabling straightforward deployment across a wide range of network environments.

Handsfree Full Duplex Communication

Designed as a handsfree communication device, the PT102-3B provides high-quality full duplex voice communication, allowing natural conversations without interruption.

Advanced echo cancellation technology helps maintain clear audio performance in challenging environments, while support for multiple industry-standard codecs ensures compatibility across a wide range of VoIP platforms.

The handsfree design removes the need for a handset, helping improve reliability while reducing maintenance requirements in busy industrial, transport and public-access environments.

IP66 Weatherproof Protection

The PT102-3B is housed within a fully weatherproof enclosure featuring a weather-sealed protective front door designed to help provide IP66-rated protection against dust ingress, moisture and water exposure. An IP67 version is also available on request for applications requiring enhanced environmental protection.

Designed for year-round outdoor deployment, the enclosure helps protect internal components from harsh environmental conditions while maintaining reliable communications in exposed industrial, transport and public-access locations.

Accessibility & User Safety Features

For applications where hearing aid compatibility is required, an inductive coupler can be fitted on request. This optional feature helps improve accessibility for users with hearing impairment while maintaining the telephone's simple handsfree operation.

*Note – Hearing aid symbol shown in product images for illustrative purposes only. Inductive coupler available on request at an additional cost.

The non-volatile memory helps retain programmed settings during power interruptions, ensuring reliable operation and minimising maintenance requirements throughout the life of the installation.

Features

• Heavy-Duty SIP Push-to-Call Outdoor Phone
• Three Independently Programmable Stainless-Steel Call Buttons
• Designed for Harsh Outdoor and Industrial Environments Including Warehouses, Factories, Manufacturing Facilities, Transport Infrastructure, Car Parks, Public Areas, Construction Sites, Ports, Docks and Airports
• SIP Connectivity – Supports SIP 2.0 (RFC3261)
• Dual SIP Server Registration Support
• Handsfree Full Duplex Voice Communication
• Power over Ethernet (PoE) Powered
• Optional 12V DC Power Input
• Web-Based Configuration and Management
• IP66 Weatherproof Protection
• IP67 Version Available on Request
• Weather-Sealed Protective Front Door
• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Vandal-Resistant Construction
• Tamper-Resistant Mounting Bars and Fixings
• Non-Volatile Memory
• Supports VLAN, DHCP and PPPoE
• Supports STUN NAT Traversal
• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)
• Operating Temperature Range from -30°C to +65°C
• MTBF Exceeding 50,000 Hours
• CE, FCC and RoHS Compliant

Specifications

Connectivity

• SIP 2.0 (RFC3261) Compliant
• Dual SIP Server Support
• Peer-to-Peer SIP Calling
• SIP Domain Support
• SIP Authentication (None, Basic and MD5)
• DNS Server Support
• Web-Based Programming and Management
• WAN Port - 10/100Base-T RJ45 Auto MDIX
• LAN Port - 10/100Base-T RJ45 Auto MDIX
• DHCP Client Support
• VLAN Support
• PPPoE Support
• STUN NAT Traversal Support

Audio Features

• High Quality Handsfree Full Duplex Voice Communication
• Acoustic Echo Cancellation (G.168 Compatible)
• Supports up to 96ms Echo Cancellation
• Support - G.711 A-law / µ-law, G.722, G.723.1, G.726, G.729

Construction

• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Three Stainless-Steel Call Buttons
• Tamper-Resistant Mounting Bars and Fixings
• Weather-Sealed Protective Front Door
• Vandal-Resistant Construction

Protection Features

• IP66 Weatherproof Protection
• IP67 Available on Request
• Conforms to EN60529
• Vandal-Resistant Design

Accessibility Features

• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +75°C
• MTBF Exceeding 50,000 Hours

Power

• Power over Ethernet (PoE)
• Optional 12V DC Power Supply
• Power Consumption - Idle - 1.5W
• Power Consumption - Active - 1.8W

Compliance

• CE Certified
• FCC Compliant
• RoHS Compliant

Dimensions & Weight

• Dimensions - 204mm × 334mm × 126mm
• Gross Weight - 7kg

Package Contents

• Project Telecom PT102-3B SIP Push-to-Call Outdoor Phone (Yellow)
• Tamper-Resistant Mounting Hardware
• User Documentation
