Project Telecom PT101-FK Outdoor Phone

The Project Telecom PT101-FK Weatherproof Outdoor Telephone is a robust industrial communications solution engineered for environments where reliability, durability, and environmental protection are critical. Available with Analogue, SIP or GSM / 4G connectivity, the PT101-FK can be integrated into traditional telephony systems, modern IP networks, or mobile communications infrastructure, providing a versatile solution for a wide range of applications.

Featuring a rugged cast aluminium enclosure, weather-sealed front door, full keypad, reinforced steel faceplate, and IP66-rated weather protection, this heavy-duty telephone is designed to deliver dependable communication in demanding industrial and outdoor environments. Available in Yellow, Red, Blue, and Grey, the PT101-FK can be selected to suit site visibility requirements, safety standards, or installation preferences.

Ideal for factories, warehouses, manufacturing facilities, transport hubs, utility sites, ports, marine environments, tunnels, car parks, security installations, construction projects, and public assistance points, the PT101-FK combines exceptional durability with flexible connectivity options, making it well suited to critical communications and infrastructure applications.

Designed for Demanding Environments

The PT101-FK has been specifically engineered for locations where conventional telephones may be exposed to harsh weather, dust, moisture, impacts, or vandalism. Manufactured from corrosion-resistant die-cast aluminium, the telephone provides outstanding protection and long-term performance in challenging conditions.

Its IP66-rated enclosure protects against dust ingress and powerful water jets, making it ideal for exposed outdoor installations. The integrated weather-sealed front door provides additional protection for the handset and keypad, helping to maintain reliable operation throughout the year.

Whether deployed in manufacturing plants, warehouses, rail networks, ports, tunnels, utility facilities, construction sites, transport infrastructure, or public access areas, the PT101-FK is built to provide dependable communications where reliability cannot be compromised.

Its IK10-rated vandal-resistant construction makes it particularly suitable for public-facing environments, remote locations, and high-traffic areas where equipment must continue operating despite heavy use, accidental damage, or deliberate abuse.

Full Keypad Operation & User-Friendly Design

The PT101-FK has been designed for simple and intuitive operation in demanding environments. Large tactile rubber buttons allow reliable use while wearing protective gloves, while the full keypad provides access to essential functions including speed dial, recall, mute, and last number redial.

The protective front door opens easily for access and helps shield the handset and keypad from dust, moisture, and environmental exposure when not in use.

An integrated inductive coupler is fitted as standard to improve accessibility for hearing aid users, while the high-output warble ringer helps ensure incoming calls are clearly heard in busy industrial and outdoor environments.

Built for Long-Term Reliability

Designed for continuous operation in harsh conditions, the PT101-FK combines a corrosion-resistant cast aluminium housing, protective weather-sealed front door, reinforced steel faceplate, and stainless-steel armoured handset cord to withstand years of demanding use.

With a calculated MTBF exceeding 50,000 hours, the PT101-FK is engineered to minimise maintenance requirements, maximise system availability, and provide dependable communications in mission-critical applications.

Flexible Connectivity Options

The PT101-FK is available in three connectivity variants, allowing it to integrate into virtually any communications infrastructure.

Analogue Version

The analogue version connects directly to standard analogue telephone lines, including PSTN and PABX systems. Powered directly from the telephone line, it provides a simple and reliable communication solution for sites utilising traditional telephony infrastructure.

SIP Version

The SIP version connects directly to SIP telephone systems, IP-PBX platforms and VoIP networks via standard RJ45 Ethernet connections. Supporting SIP 2.0, dual SIP servers, PoE (Power over Ethernet) and web-based configuration, it provides a flexible and scalable communication solution for modern IP telephony environments.

GSM / 4G Mobile Network Version

The GSM / 4G version communicates via GSM and 4G mobile networks using a Micro SIM card, providing a flexible communication solution where fixed telephone lines or IP networks are unavailable.

Supporting multiple GSM, WCDMA and LTE frequency bands, the telephone can be remotely configured via SMS messaging and supports remote status reporting for simplified management of deployed units. This version is ideal for remote infrastructure, utility sites, transport networks and temporary installations.

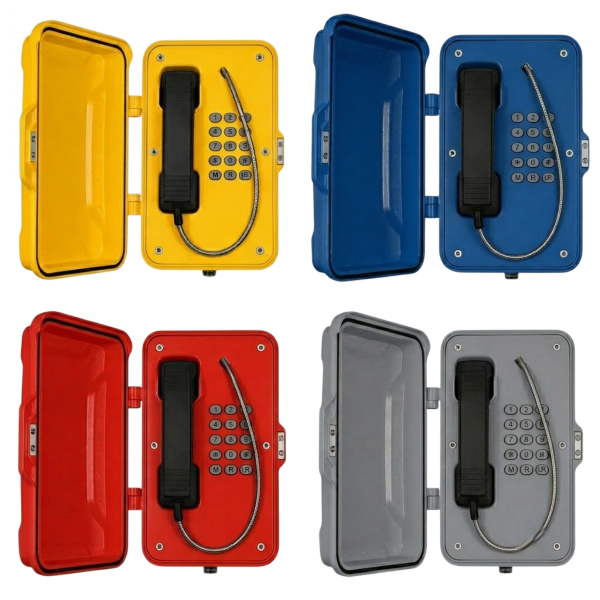

Available in Four Colours

The PT101-FK is available in Yellow, Blue, Red and Grey finishes, allowing the telephone to be selected to suit site requirements, visibility needs and installation environments.

Features

• Designed for Harsh Outdoor and Industrial Environments Including Warehouses, Factories, Manufacturing Facilities, Transport Infrastructure, Car Parks, Public Areas, Construction Sites, Ports, Docks, Airports and More
• IP66 Weatherproof Protection & Protective Weatherproof Front Door
• Full Keypad Including R (Recall), M (Mute), LR (Last Number Redial) and Speed Dialling (On Demand)
• Large Rubber Buttons for Operation Whilst Wearing Gloves
• Non-Corrosive Cast Aluminium Body with Steel Faceplate
• Robust IK10 Vandal-Resistant Construction
• Inductive Coupler Fitted as Standard for Hard of Hearing Users
• Easy Installation with Tamper-Proof Bars & Fixings
• Non-Volatile Memory
• Key Lock Available On Demand
• Customised Labelling Available On Demand
• RoHS, CE, FCC and ISO9001:2015 Compliant
• Available with Analogue, SIP VoIP or GSM / 4G Mobile Network Connectivity
• Available in Yellow, Red, Grey and Blue Finishes

Specifications

Connectivity Options

Analogue Version

• Standard Analogue Telephone Line Connection
• Compatible with PSTN and PABX Systems
• DTMF Remote Programming
• Powered Directly from Telephone Line

SIP Version

• SIP 2.0 (RFC3261) Compatible
• Supports Dual SIP Servers
• RJ45 WAN Port (10/100Base-T Ethernet)
• RJ45 LAN Port (10/100Base-T Ethernet)
• Power over Ethernet (PoE)
• Optional 12VDC Power Supply
• Web-Based Configuration Interface
• Compatible with SIP Telephone Systems and IP-PBX Platforms
• Supports G.711A/u, G.722, G.723.1, G.726 and G.729 Codecs
• Echo Cancellation (G.168)
• DHCP, VLAN, PPPoE and STUN Support

GSM / 4G Version

• GSM / 4G Mobile Network Operation
• Micro SIM Card
• 4G LTE FDD - B1 / B3 / B5 / B7 / B8 / B20
• LTE TDD - B38 / B40 / B41
• WCDMA - B1 / B5 / B8
• GSM - B3 / B8
• Remote Programming via SMS
• Remote Status Reporting
• 7.4V–12V DC Power Supply
• Idle Current - 75mA
• Off-Hook Current - 160mA

Construction

• Non-Corrosive Cast Aluminium Body
• Steel Faceplate
• Industrial Epoxy Powder-Coated Finish
• Impact-Resistant ABS Handset
• Stainless Steel Armoured Handset Cord

Protection Ratings

• IP66 Weather Protection with Sealed Door
• IP67 Available On Request
• IK10 Vandal Resistance
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels

Audio Features

• Full Duplex Communication
• Shrill Warble Ringing Tone
• Approx. 80-90 dBA at 1 Metre (Version Dependent)
• Inductive Coupler Fitted as Standard

Environmental Specifications

• Operating Temperature: -40°C to +70°C
• Storage Temperature: -45°C to +85°C

Compliance

• RoHS Compliant
• CE Certified
• FCC Approved
• ISO9001:2015 Certified

Version Specific Powering

• Analogue Version - Powered via Telephone Line
• SIP Version - PoE Powered (Optional 12VDC PSU Available)
• GSM / 4G Version- Requires 7.4V–12V DC Power Supply or Supplied PSU Depending on Configuration

Dimensions & Weight

• Phone Dimensions - 204mm x 334mm x 126mm
• Gross Weight - 7kg

Package Contents

• Project Telecom PT101-FK Weatherproof Outdoor Telephone with Weather Sealed Front Door (Connection / Colour Option to be Selected at Checkout)
• Weatherproof Handset with Stainless Steel Armoured Cord
• Tamper-Resistant Mounting Hardware
• User Documentation
