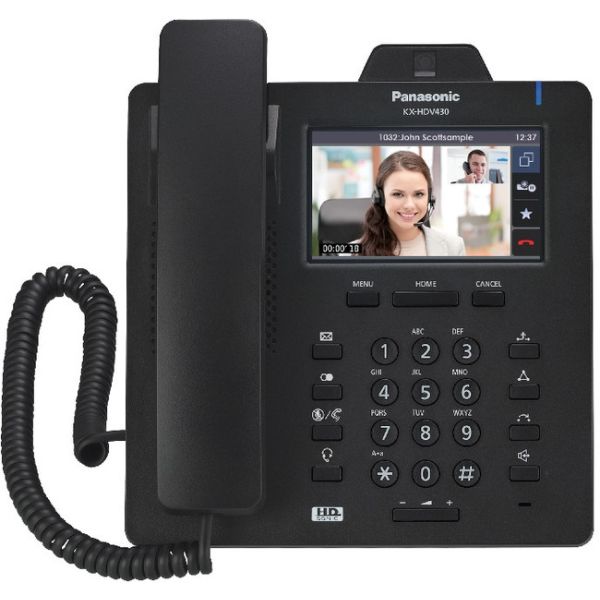

Panasonic KX-HDV430 HD IP Video Phone (Black)

The versatile KX-HDV430 marks the high-end addition to Panasonic’s now complete range of desk phones, thanks to its built-in video camera, offering multi way video communication and remote visual monitoring.

The innovative KX-HDV series of SIP deskphones offers you flexible, world-leading communication, faultless reliability and long-term cost savings in one complete package.

Colour TFT Touch Panel

• The KX-HDV340’s 4.3” Colour LCD Touch Panel with Backlight Makes Video Images Crisp and Clear and Encourages Simple and Intuitive Operation

Video Communication

• The Built-In Video Camera allows Face-to-Face Conversation via the Phone’s Colour LCD Screen, While a 3-Party Video Conferencing Feature Enables Remote and Increasingly Flexible Business Meetings

IP Camera Linking Feature

• By Linking with an IP Camera you Can Visually Monitor and Manage On-Site Environments Such as your Factory or Sales Floor without Leaving your Desk

Key Features

• Built-In Video Camera Offers Video Conferencing Capabilities
• Built-In Bluetooth® for Wireless Capability
• Support for UC Features Including BroadSoft Integration
• HD SONIC Sound for Maximum Voice Quality
• Up to 16 SIP Accounts
• 2 x Gigabit Ethernet & PoE
• Ability to Link with an IP Camera to Enable Off-Site Monitoring and Management from your Office
• HD Voice (G.722)
• Compatible with Broadsoft UC One
• XML Application Interface
• Wall Mountable

Specifications

• 4.3” Colour TFT LCD Touch Panel can be Used With Videophone Function
• LCD Backlight - Active - 8 Levels - Inactive - Low/Off
• Changeable Angle Stand - 2 Positions
• Wall Mount Included
• Up to 16 SIP Accounts
• Built in Camera
• Built-In Video Camera Offers Video Conferencing Capabilities
• Built-In Bluetooth® for Wireless Capability

Audio Features

• Handset, Speaker, Headset Volume - 8 Levels (Includes Echo Cancellation and Distortion Prevention)
• 27 Ringtones
• 8 Ringer Volume Levels + Off
• Electronic Hook Switch Control Port - 3.5mm
• Bluetooth - V2.1 (Class1 / HFP)
• Audio Codec - G.711a-law / G.711µ-law / G.722 (Wideband) / G.729a
• HD Voice
• Full Duplex Speakerphone

Keys

• Flexible Function Keys - 24 (Touch Screen on LCD)

Software Features

• Music on Hold- Supplied by Host Service (PBX / SIP Server)
• XML Application
• Local Phonebook - Up to 2,500 - 500 Items x 5 Numbers
• LDAP Phonebook
• XML Remote Phonebook
• 30 Incoming Call Entries - 30 Outgoing Call Entries
• 3 Party Conferencing - Within Terminal - Multi-Party Dependant on Server

IP Features

• 16 SIP Accounts
• IP Version - IPv6 / IPv4
• SIP Compatibility - RFC 3261 Standard SIP Server, Asterisk, Broadsoft, Panasonic IP PBX
• DHCP Client, DNS, HTTP, HTTPS SNTP Client, VLAN, QoS - Layer 3 ToS DSCP / 802.1p/ Q tagging (VLAN)

Configuration

• Plug and Play Confirguration - Server Based Configuration, TR-069
• Manual Configuration - Internal Web Configurator, Local (LCD Based) Network Configuration

Interface

• 2 x Ethernet Ports
• Ethernet Interface - 10/100/1000Mbps
• PoE - Power Over Ethernet

Weight and Dimensions

• Weight (With Handset, Cord and Stand) - 870g
• Dimensions - With Stand - Excluding Handset - High Position - 195mm x 190mm x 209mm, Low Position - 195mm x 184mm x 188mm (W x D x H)

In the Box

• Panasonic HDV430 IP Video Phone
• Desktop Stand
• Wall Mount Bracket and Fixing Kit
• Handset
• Curly Cord
• Quick Start Guide
