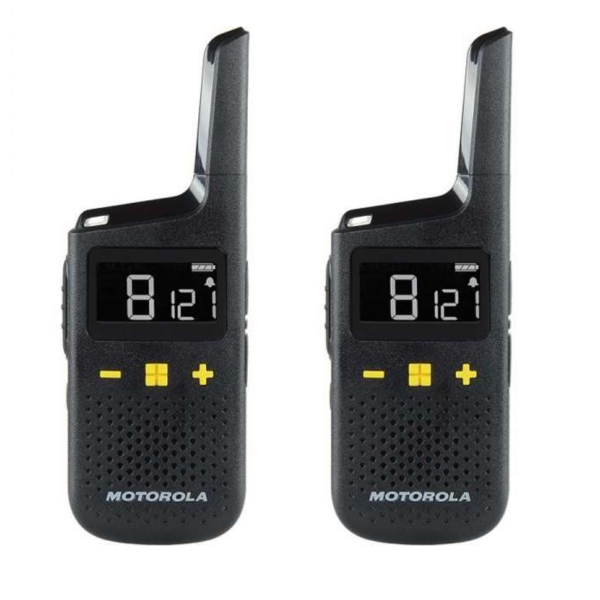

Motorola XT185 Portable - Twin Pack - Two-Way Radio - PMR446

£110.40 £92.00
Motorola
  • Easy Pairing Function
  • 121 Privacy Codes
  • PMR446 - Licence Free
  • Up to 8km Range
  • Up to 24 Hours of Battery Life
  • IP54 Rating
  • 16 Channels with Channel Monitor/Scan
  • Twin Pack
Stock status
In Stock
Goods Condition
Brand New
PMC Product code
18843


Twin Pack - Cost Effective Two Way Radios - Ideal for all Types of Environments

The Motorola XT185 are a licence free Two Way Radio, the compact, lightweight and rugged design of the Radios make them ideal for business and commercial use. Across the warehouse, shop floor or school playground, the Motorola XT185 enables clear and instant communication at the touch of a button. The XT185 is a general purpose Two Way Radio that is ideal for users who need to contact colleagues, team members or other staff members quickly and and easily. Its long battery life of up to 24 hours and easy pairing make it the perfect radio for any user whether they are a beginner or an advanced Radio user.

A LCD screen allows users to esily see battery level and the channel being used, its simplified pairing system enables multiple Radios to be paired a the touch of a button with no complex configuration.

The XT185 deliver all the benefits of Two Way Radio communication without the need to purchase an operating licence.

License Free PMR446 Two Way Radio

No Licence is required to operate the Motorola XT185 Radios, they can be used as soon as they have been taken out of the box

iVOX | VOX Handsfree - Communicate Easily

On the Motorola XT185 - iVOX mode allows handsfree communication without any accessories, while VOX is for use with Earbuds or Headsets. You can turn iVOX on from your Radio and then clip the Radio to your shirt or belt for unrestricted movement during outdoor activities

Weatherproof IP54

The XT185 is protected against dust and splashes of water, communicate whenever you need to whatever the weather

Channel Scan | Monitor

The Radios show scan and monitor modes on the LCD Display

16 Channels + 121 Privacy Codes

16 Channeks with channel monitor/scan and 121 Privacy Codes

Easy Paring and Simple Set-Up

Program all of your teams Radios to the same channel and code simultaneously

Battery Life of up to 24 Hours

With the Lithium-Ion Battery the XT185 can provide users with up to 24 hours of battery life

Up to 8km Range

Up to 8km Range dependent on terrain and local conditions

Main Features

  • Licence Free Two Way Radio | Walkie Talkie
  • IP54 Ingress Protection Against Dust and Water Splashes
  • Built in Rechargeable Lithium-Ion Battery Provifing up to 24 Hours of Battery Life
  • Quick, Easy Pairing
  • Automatic Keypad Lock
  • Weight of 1 Radio with Battery - 100g
  • Compact and Lightweight
  • LCD Screen
  • VOX | iVOX Function
  • Up to 8km Range - Depending on Terrain and Conditions
  • Handsfree Mode Available
  • 16 Channels with Channel Monitor/Scan
  • Auto Squelch
  • 500mW Power Transmission
  • Compatible with Single Pin Accessories

General Specifications

  • Frequency Band - PMR446 - 446.0-446.2 MHz
  • Range - Up to 8km - Depending on Terrain and Conditions
  • Channel Capacity - 16
  • Channel Bandwidth - 12.5kHz
  • PL Codes (Privacy Codes) - 38
  • DPL Codes (Privacy Codes) - 83
  • Battery Life with Standard Li-Ion Battery - 24 Hours
  • Single Radio Dimensions - 136mm x 47mm x 21mm
  • Single radio Weight with Standard Li-Ion Battery - 100g

Transmitter

  • RF Output - 0.5 Watts
  • Frequency Stability: < 2.5 ppm
  • Spurs and Harmonics (<1 GHz) <-42 dBm
  • Spurs and Harmonics (1 GHz)> <-36 dBm
  • FM Hum & Noise <-35 dB
  • Modulation Limiting ±2.5 kHz
  • Adjacent Channel Power <-60 dB
  • Radiated Spurious Emissions (<1 GHz) <-36 dBm
  • Radiated Spurious Emissions (>1 GHz) <-30 dBm
  • Audio Frequency Response (0.3 - 3.0 kHz) ±1.5 kHz
  • Audio Distortion <2 %

Receiver

  • Sensitivity (12 dB SINAD) <-119 dBm
  • Adjacent Channel Selectivity >60 dB
  • Intermodulation Rejection >56 dB
  • Spurious Response Rejection (Blocking 1Mhz) >70 dB
  • Audio Distortion 3%
  • CSQ Hum & Noise @ 12.5kHz <-45 dB
  • PL Hum & Noise @ 12.5kHz <-45 dB
  • Radiated Spurious Emissions (<1 GHz) <-63 dBm
  • Radiated Spurious Emissions (>1 GHz) <-53 dBm
  • Audio Output @ 5% Distortion 500 mW @ 16 ohms

Package Contents

  • 2 x XT185 Two Way Radios
  • 2 x Charger Pods
  • 2 x Rechargeable Lithium-Ion Batteries
  • 2 x Belt Clips
  • 2 x Short Lanyards
  • 2 x Earbuds
  • 1 x Mains Adapter
  • 1 x User Manual
More Information
Manufacturer's Code:D3P01610BDLMAW
EAN5031753009816
Warranty12 months
ManufacturerMotorola
Radios for...Sports & Leisure
Transmission TypePMR446 (Licence Free)
Digital or AnalogueAnalogue
Single radio or multipackSingle Radio
WaterproofingSplash / Weatherproof
IP RatingIP54
Vibrate AlertNo
Battery TypeNi-MH
Battery Capacity mAh
Standby Time-
Talk Time-
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
