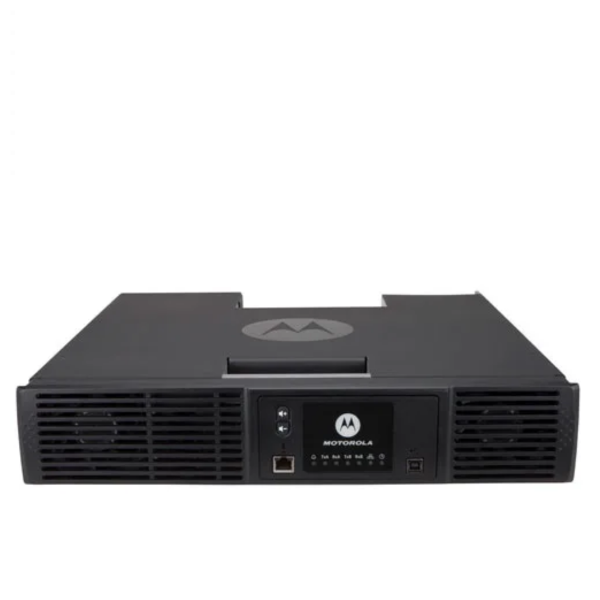

Motorola MOTOTRBO™ SLR8000 Repeater - Refurbished - UHF

About the Motorola SLR8000

Reliable voice and data communications are essential for organisation wide safety and operational efficiency. The MOTOTRBO SLR8000 Repeater offers a high performance, high reliability platform that delivers robust Two Way Radio service, expertly optimised to meet the demanding requirements of any workplace.

Delivering the next generation of performance, the SLR8000 is engineered for superior reliability and flexibility.

Combining the best of two-way radio with the power of digital technology, MOTOTRBO is both versatile and robust. It seamlessly integrates voice and data, provides easy to use advanced features, and boosts communication capacity across your entire operation, whether in the field or on the factory floor.

The Motorola SLR8000 brings the power of digital two-way radio to your workforce, supporting everything from simple single-site conventional systems and wide-area IP Site Connect, to powerful trunking solutions like Capacity Plus, Capacity Max, and Connect Plus. Furthermore, it ensures a seamless migration by operating as an analogue repeater (conventional or MPT 1327) or in mixed analogue / digital mode during your transition from a legacy system.

Next Generation MOTOTRBO Repeater

The SLR8000 is the next generation of repeaters, combining a wealth of field experience, customer feedback, and technological innovation into one powerful product. Its advanced, efficient modular design and flexible installation options ensure outstanding performance and reliability for your business radio system.

High Performance

The SLR8000 provides radio coverage over an enormous area, thanks to its powerful $100$ W transmitter output and high sensitivity receiver. Its excellent performance characteristics also make it ideally suited for congested sites that demand tighter operational specifications.

Compatible with every MOTOTRBO system, including single site conventional, IP Site Connect, Capacity Plus, Capacity Max, and Connect Plus, the SLR 8000 supports the platform's full feature set. The integrated IP interface also enables direct development of applications and consoles for your system.

To ensure your system achieves top performance, you can purchase optional MOTOTRBO RF Planning and IP Integration Services.

High Reliability

Offering reliable round-the-clock operation at a continuous $100$ W, the SLR8000 has been validated against stringent quality criteria using Motorola's Accelerated Life Testing (ALT). Its next-generation receiver features high sensitivity and improved noise blocking, ensuring you maintain clear voice quality even in the worst operating conditions.

The unit features internal monitoring circuitry that lets you measure key parameters, including input voltage and current, output power, module temperatures, and VSWR. This data can be easily accessed either locally via the front panel maintenance interface or remotely through a management application like RDAC.

Total Flexibility

The SLR8000 is highly adaptable to your operation. To enable a simple one-box installation, you can add an internal preselector and antenna relay module. Furthermore, an optional internal wireline card is available to provide tone control capabilities, 4-wire audio, and extra external inputs.

Power can be supplied via $110$-$240$ Vac, $12$-$24$ Vdc, or AC with battery fallback, complete with a built-in $5$ A battery charger. The $2$U unit is designed for efficient rack mounting, requiring no ventilation space above or below. Serviceability is further improved by the local voice capability, which includes an internal speaker and volume control, along with provision for an external microphone.

MOTOTRBO SLR8000

The SLR8000 Repeater delivers excellent performance, high reliability, and a flexible design within a slim and efficient unit, making it the central component of any superior MOTOTRBO professional two-way radio system.

Features

• Frequency - UHF - 400-470 MHz
• Channel Capacity - 64 Channels
• High Power Output - Delivers up to $100$W of Vontinuous Transmit Power for Wide Area Coverage
• $100\%$ Duty Cycle - Designed for Reliable, Continuous $24/7$ Operation at Full Power
• Flexible Power Options -  Supports $110$-$240$ Vac, $12$-$24$ Vdc, or AC with Battery Fallback (Revert)
• Built-in Battery Charger - Includes an Integrated $5$A Battery Charger to Manage Battery Backup Systems
• Rugged Design - Quality is Validated Through Motorolas Accelerated Life Testing (ALT) Program
• Supports IP Site Connect, Capacity Plus, Capacity Max, Connect Plus
• Analogue / Digital Operation - Can Operate in Digital Mode, Analogue Mode (Conventional or MPT 1327), or Mixed Analogue / Digital Mode for Seamless Migration from Legacy Systems
• Efficient Mounting - Requires no Ventillation Space Above or Below in the Rack
• Remote Management - Diagnostics and Control are Accessible Remotely via Applications Including RDAC (Repeater Diagnostics and Control)

Specifications:

General

• Frequency - UHF - 400-470 MHz
• Channel Spacing - 12.5 / 20 / 25 kHz
• Channel Step Size - 5 Hz
• Frequency Stability - 0.5 ppm
• Channel Capacity - 64 Channels
• RF Power Output - 1-100W
• Dimensions (H x W x D) - 89mm x 483mm x 438mm (3.5 Inches x 19 Inches x 17.25 Inches)
• Weight - 14.1kg (31 lbs)
• Input Voltage (AC) - 100-240 Vac, 47-63 Hz, Current (Standby), 110 / 240 V - 0.25 / 0.3A, Current (Transmitting at 100 W), 110 / 240V - 2.0 / 1.1A (Typical)
• input Voltage (DC) - 12 V (11.0-15.5 V) / 24 V (21.6-32.0 V), Current (Standby), 24V 0.5A, Current (Transmitting at 100 W), 24V - 8.2A (Typical)
• Input Power Mode - AC Only, DC Only, AC with Battery Revert
• Max Duty Cycle - 100%
• Digital Vocoder Type - AMBE+2™
• Battery Charger Capacity (12 / 24 V) - 5A
• Connectivity Front Panel - USB-B Receptacle, Microphone (RJ45), Speaker (Integrated)
• Connectivity Reat Panel - Tx (N female), Rx (BNC female), USB A Receptacle, 2x Ethernet, DB25 Accessory Connector, External Reference (BNC Female)
• External Reference - 5 / 10 MHz (Auto Detect)
• Supported System Types - Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus, Analogue Conventional, Analogue Conventional Voting, MPT 1327
• Audio Types - Input - Balanced (600 ohms and Country Specific Impedances), Unbalanced (1000 ohms), Microphone Accessory Port. Output: Balanced (600 ohms and Country-Specific Impedances), Unbalanced (600 ohms), Integrated Speaker
• Audio Levels - Input - Balanced: +10 to -30 dBm, Unbalanced: Adjustable, 80 mV rms nominal for 60% RSD, Output: Balanced - +7 to -30 dBm, Unbalanced: Adjustable, 330 mV rms Nominal @ 60% RSD
• FCC Emission Designators - 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W
• FCC Type Acceptance - ABZ99FT4098
• IC Description - 109AB-99FT4098

Receiver

• Frequency - UHF - 400-470 MHz
• Sensitivity - 12dB SINAD - 0.3 uV (0.22 uV Typical)
• Sensitivity, - 5% BER - 0.25 uV (0.18 uV Typical)
• Selectivity (TIA603D) - 25 / 20 / 12.5 kHz - 78 / 78 / 52 dB
• Selectivity (TIA603) - 25 / 20 / 12.5 kHz - 80 / 80 / 75 dB
• Intermodulation Rejection (TIA603D/ETSI) - 85 / 73 dB (87 / 78 dB Typical)
• Spurious Rejection (TIA603D/ETSI) - 85 / 75 dB (95 / 90 dB Typical)
• Audio Distortion  < 3% (<1.5% Typical)
• Hum and Noise - 25 / 20 / 12.5 kHz: -50 / -50 / -45 dB (-56 / -56 / -52 dB Typical)
• Blocking - > 110 dB (113 dB Typical)

Transmitter

• Frequency - UHF - 400-470 MHz
• RF Output Power - DC (24 V) or AC 1-100W, DC (12 V) 1-50W
• Max Duty Cycle -100%
• Intermodulation Attenuation - 55 dB
• Adjacent Channel Power (TIA603D) - 25 / 20 / 12.5kHz 75 / 75 / 60 dB
• Adjacent Channel Power (ETSI) - 25 / 20 / 12.5 kHz 75 / 75 / 60 dB (78 / 78 / 62 dB Typical)
• Conducted Spurious Emissions - 40 dBm < 1 GHz, -30 dBm > 1 GHz
• Audio Response TIA603D
• Audio Distortion < 3% (<1% Typical)
• Hum and Noise - 25 / 20 / 12.5 kHz -50 / -50 / -45 dB (-55 / -55 / -52 dB typical)
• Rated System Deviation - 25 / 20 / 12.5 kHz ±5.0 / ±5.0 / ±2.5 kHz

Package Contents

• Motorola MOTOTRBO™ SLR8000 Repeater - Refurbished (UHF)
• Power Cable
