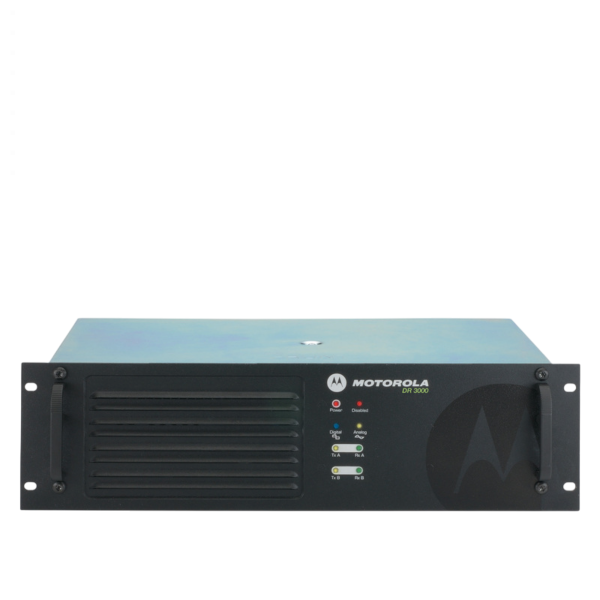

Motorola DR3000 Digital Two Way Radio Repeater - Refurbished

About the Motorola DR3000

The Motorola DR3000 Repeater supports two simultaneous voice or data paths via digital TDMA, is designed for continuous use and can be easily mounted in racks or on walls.

This Repeater is a core part of the MOTOTRBO system, providing a comprehensive solution that improves communication capacity, optimizes spectrum use, and integrates both data and enhanced voice features.

Integrates Voice and Data

The DR3000 Repeater combines voice and data into a single unit, which boosts your operational efficiency and supports applications such as MOTOTRBO Text Messaging Services and third-party location-tracking using its built-in GPS module.

Time Division Multiple Access (TDMA)

Using Time-Division Multiple Access (TDMA) digital technology, the Motorola DR3000 repeater doubles your calling capacity without the need for a second frequency license, which helps you save on equipment costs.

Clearer Voice Communication

In digital mode, the Motorola DR3000 delivers clearer voice communication across the entire coverage area by rejecting static and noise, a significant improvement over analogue radios.

Easy Integration

The Motorola DR3000 makes migrating from analogue to digital simple, as it can operate in both modes. With its dynamic mixed-mode functionality, the repeater automatically switches between analog and digital to accommodate both types of radios.

Additional Functionality

Unlock more functionality with the DR3000 Repeater, including dispatch data, advanced call signaling, and both basic and enhanced privacy-scrambling. It also offers expandability for additional features via an option board.

ETSI

Adhering to the global ETSI Digital Mobile Radio (DMR) Tier 2 standard, this Repeater is built to meet the rigorous demands of professional Two Way Radio communication.

Transmit Interrupt

The Motorola DR3000 features a transmit interrupt suite - including voice interrupt, remote voice dekey, emergency voice interrupt, and data over voice interrupt, that helps prioritise critical communication exactly when you need it.

IP Site Connect

IP Site Connect allows you to link your MOTOTRBO system through an IP network, enabling seamless communication across the globe. This expanded coverage leads to improved customer service and increased productivity by ensuring your team is always connected.>

Capacity Plus

To handle the communication needs of a large team, Capacity Plus provides a scalable, single-site digital trunking solution. It can boost the capacity of your MOTOTRBO system, supporting more than a thousand radio users on a single site.

Partner Programme

Motorola's Professional Radio Application Partner Programme allows for the creation of custom data applications, tailoring MOTOTRBO Radios to meet your business's specific needs.

Features

• Frequency - UHF 1 - 403-470 MHz or VHF - 136-174 MHz
• 16 Channels
• Dual Mode - Analogue & Digital
• High Powered Performance
• Industry Leading Applications
• Added Functionality
• Expanded Capacity and Coverage
• Migrate at Your Own Pace
• Reliable and Durable
• Rack Mount or Wall Mount
• Clear LED Indicators on Front Panel to Indicate Operating Status
• Capacity Plus, IP Site Connect
• Motorolas Professional Radio Application Partner Programme

Specifications:

General

• Frequency - UHF1 - 403-470 MHZ or VHF- 136-1741MHZ
• Typical RF Output - UHF1 Low Power - 1.25W, UHF1 High Power - 25-40W, Low Power - VHF Low Power - 1-25W, VHF High Power - 25-45W
• Dimensions - 132.6mm x 482.6mm x 296.5mm (H x W x L)
• Weight - 14kg
• Voltage Requirements - 100-240 V AC (13.6 V DC)
• Current Drain Standby - >0.2A (100 V AC), >0.1A (240 V AC), >1.5A (typical) (13.4 V DC
• Transmit Low Power - >2.0A (100 VAC), >1.0A (240 VAC), >9.0A (typical) (13.4 VDC)
• Transmit High Power - >2.5A (100 V AC), >1.25A (240 V AC), >12.0A (typical) (13.4 V DC)
• Digital Protocol - ETSI-TS 102 361-1, 2 & 3

Receiver

• Frequency - 403-470 MHz (UHF1) or 136-174 MHz (VHF)
• Channel Spacing - 12.5 kHz / 20 kHz / 25 kHz
• Frequency Stability ( -30° C, +60° C, +25° C) - +/- 0.5 ppm
• Analogue Sensitivity - 0.30 uV (12 dB SINAD), 0.22 uV (Typical) (12 dB SINAD), 0.4 uV (20 dB SINAD
• Digital Sensitivity - 5% BER: 0.3 uV
• Intermodulation - 70 dB
• Adjacent Channel Sensitivity - 60 dB @ 12.5 kHz, 70 dB @ 20/25 kHz
• Spurious Rejection - 70 dB
• Audio Distortion @ Rated Audio - 3% (Typical)
• Hum and Noise: -40 dB @ 12.5 kHz, -45 dB @ 20/25 kHz
• Audio Response - +1, -3 dB
• Conducted Spurious Emission: -57 dBm < 1GHz

Transmitter

• Frequency - 403-470 MHz (UHF1) or 136-174 MHz (VHF)
• Channel Spacing - 12.5 kHz / 20 kHz / 25 kHz
• Frequency Stability ( -30° C, +60° C, +25° C) - +/- 0.5 ppm
• UHF1 Low Power - 1.25W, UHF1 High Power - 25-40W, Low Power - VHF Low Power - 1-25W, VHF High Power - 25-45W
• Modulation Limiting - +/- 2.5 kHz @ 12.5 kHz, +/- 4 kHz @ 20 kHz, +/- 5.0 kHz @ 25 kHz
• FM Hum and Noise: -40 dB @ 12.5 kHz, -45 dB @ 20/25 kHz
• Conducted / Radiated Emission: -36 dBm < 1 GHz, -30 dBm > 1 GHz
• Adjacent Channel Power: -60 dB @ 12.5 kHz, -70 dB @ 20/25 kHz/li>
• Audio Response - +1, -3 dB
• Audio Distortion - 3%
• Digital Vocoder Type - AMBE+2

Package Contents

• Mototola DR3000 Repeater UHF1 or VHF - (Select at Checkout)
• Power Supply<
