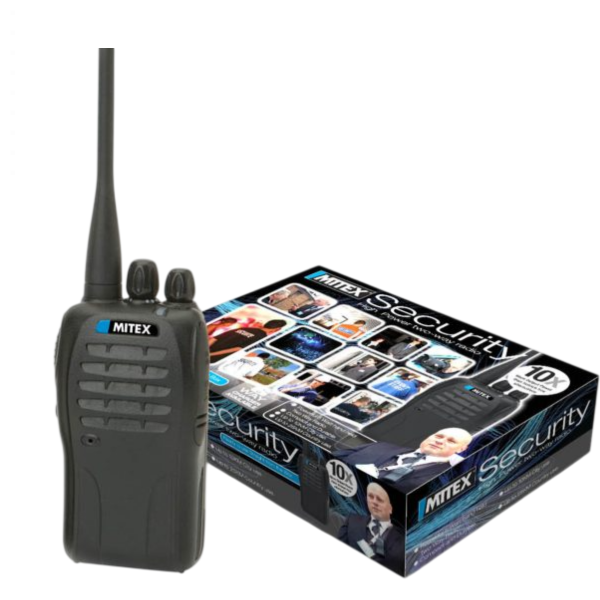

Mitex Security UHF Two-Way Radio

About the Mitex Security

A dedicated security 2 Way Radio for all security industry applications. Professional 2 way hand held radio complete, programmed and ready to go. Ideal for individuals and small business in the security industry who have a communication need.

Legal operation of the Mitex Security Two Way Radio requires a current Business Radio UK Simple Light Licence, available from Ofcom. One License covers an unlimited number of Two Way Radios. The License Application form is included in the box and simple to fill out, alternatively click the link below to purchase your License.

Please Click Here to Purchase an Ofcom License

Radio Functions

• Scan Function
• Time-out Timer (TOT)
• Battery Saver, Low Battery Alert
• Monitor
• VOX Function - VOX is Programmed into the Radio as standard. This Enables a User to Transmit and Call Other Users (When using a VOX Enabled Headset) Without Having to Press the PTT Button
• Ideal for Built up Areas (Shopping Malls, Schools etc)

Technical Specifications

• Frequency Range - (UHF) 403-470MHZ
• Number of Channels - 16CH
• Span of Channels - 25KHZ / 12.5 KHZ
• Step of Channels - - 5, 6.25KHZ
• Working Voltage - 7.2V DC +/- 20%
• Battery - Lithium Battery (1300mHA)
• Working Cemperature - 20?C to +60?C
• Frequency - Ctability +/-2.5ppm (-20?C to +60?C)
• Antenna Impedance - 50’?
• Dimensions - 52 x 28 x 100 mm (not including bulge)
• Weight - 200g (including Battery and antenna)

Transmitter

• Carrier Frequency Error <5 x 10-6
• Carrier Output Power <5W
• Modulate Limit <5KHz
• Audio Distortion <5%
• Modulate Characteristics ±3dB
• Adjacent Channel Power >65dB
• Spurious Response <7.5?W
• In use Band <16Khz

Receiver

• Reference Sensitivity 12dB (SINAD) 0.18?V
• Audio Distortion <5%
• Audio Response +2dB~ -10dB
• Common Channel Rejection -8dB
• Adjacent Channel Selectivity >55dB
• Intermodulation Distortion >55dB
• Spurious Response >55dB
• Blocking Characteristic >85dB

Package Contents

• Mitex Security Radio
• Li-ion Battery Pack
• AC Adapter
• Intelligent Charger Pod
• Antenna, Wrist Strap
• Belt Clip, User Manual
• License Application
