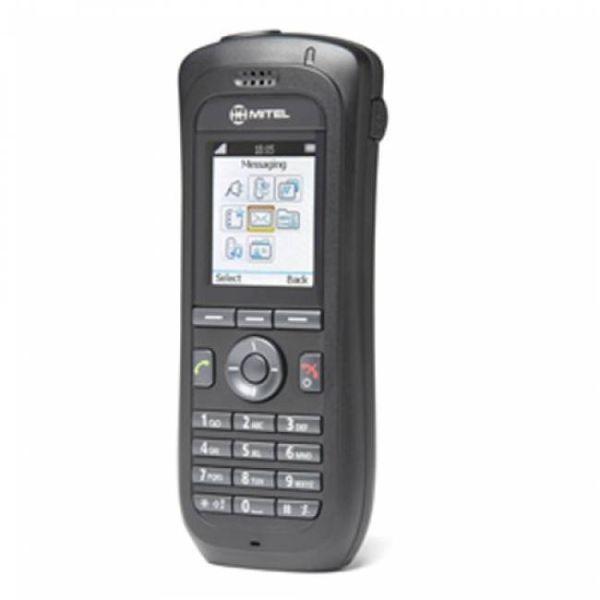

Mitel 5624 WiFi Phone - Refurbished

The Mitel 5624 WiFi Phone is designed to be used in office and medium demanding environments such as hospitals. It is suitable for users who are dependent on voice and messaging features which make it ideal for applications where the user needs 2-way messaging or to be able to interact with other users.

The Mitel 5624 is a feature rich SIP Enabled VoWiFi Phone with Colour Display providing telephony and messaging over 802.11 a/b/g/n/ standards. The Mitel 5624 is delivered with standard telephony features, which can them be enhanced using Services, Personal Alarm, Location and Shared Phone Licences.

WiFi is ideally suited to businesses who have a need for both wireless voice and wireless data capabilities and prefer to deploy these services over a single, converged infrastructure.

WiFi involves deploying a VoIP compatible wireless LAN (WLAN) infrastructure that can support both VoIP (Voice) applications and data applications concurrently. This provides for broader multipurpose use, but requires more wireless access points, more precise site engineering, and ongoing management.

The 5624 is Mitel’s first VoWiFi handset operating on 802.11n networks, it supports the deployment of voice over the network without degrading the performance of an existing 802.11n network’s capacity. A Mitel 5624 WiFi Phone based solution delivers trouble-free WLAN vendor interoperability and scalability, as well as the capacity to integrate and communicate with a comprehensive range of external sources.

The Mitel 5624 can be managed and configured using the Mitel WSM Server along Mitel 5603/5604 handsets enabling a wide range of devices to be managed and configured in a mixed IP-DECT and WiFi environment.

Features

• Full Duplex Handsfree Speakerphone
• Hearing Aid Compatible (HAC)
• Centralised Management
• Shared Phone (Requires License), Supports Virtual SIM
• Push to Tal (PTT)
• Voicemail (System Dependent)
• Message Acknowledgement
• Coloured Messaging
• Interactive Messaging
• Messaging
• Location WiFi (AP, Ekahau RTLSc and Cisco MSE ) (Requires License)
• Automatic Call After Alarm (Applicable to Mitel 5624 Personal Alarm Only)
• Acoustic Location Signal (ALS) at Alarm (Applicable to Mitel 5624 Personal Alarm Only)
• Push Button Alarm, with Ability to Send Different Alarm Types (Applicable to Mitel 5624 Personal Alarm Only)
• Upgradeable by Licenses, Services, Personal Alarm, WiFi Location and Shared Phone
• Water, Dust and Chemical Resistant for Easy Cleaning
• 9 Programmable Hot Keys
• 3 Programmable Soft Keys
• TFT Colour Display with Multiple Colours with High Resolution, more than 65000 Individual Colours, 176 x 220 pixel LCD with White LED Back lighting
• Dynamic Output Power According to 802.11h Standard
• Supports WiFi 802.11 a/b/g/n Standards
• WiFi Handset with High Quality Voice, Personal Alarm ((Applicable to Mitel 5624 Personal Alarm Only), and Messaging (Applicable to Mitel 5624 Services and Mitel 5624 Personal Alarm only)

Audio

• Ring Signal - Adjustable in 8 Steps and in Silent
• Earpiece - Adjustable in 8 Steps of 3dB Each
• Max Sound Ring Signal Level - 88 dBA @ 10cm
• Loudspeaker - Full Duplex Handsfre Function
• Buttons - Keypad - Soft Keys - 3
• Call Key
• End Key and Power On/Off on the Same Key
• Five Way Navigation (OK Button In Centre of the Key)
• Numerical Keys
• Sound Off Key
• Volume Button - Up/Down
• Multi function Button (This is not Available for Alarm Licensed Phones)
• Mute Button

Alarm

• Location Types - Associated WLAN Access Point and Cisco MSE as Standard, Ekahau as Option
• Alarm Types - Single Button with 2 Alarm Types - Long-Press and Double-Press

Central Phone book

• Max Name and Number Length - 40 Characters in a Name and 20 Digits in a Number (System Dependent)

Company Phone book

• Max Name and Number Length - 24 Characters in a Name and 24 Digits in a Number (1 Number per Name) Entries - 1000

Local Phone book

Storage of Contacts - 48 Character Name - Entries - 250

• 24 Digit Work Number
• 24 Digit Mobile Phone Number
• 24 Digit Other Number
• Selectable Ringtones Per Contact

Messaging

• Max Message Length - 160 Characters - 5624 Phone
• Message Length to 5624 Phone is System Dependent
• Storage Capacity - 30 Received/Sent Messages

Settings

• Languages -18 (Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese (Brazilian), Russian, Slovak, Spanish, Swedish, and Turkish), + 1 Customizable

Telephony

• Indication - 14 ring Signals, Flashing LED and Vibrator
• Answer Call - Button Press or Auto Answer
• Call List Storage Capacity - 25 Calls (Received, Dialed and Missed) with Time Stamp and Name

User Interface

• Indicator - LED on Top/Front for Visual Indication of Events and Normal Function. The LED May also be Used for Visual Indication of a Message
• Vibrator - Incoming Calls, Other Audio Events and Messages
• Time and Date Indication
• Manual and Automatic Keypad Lock
• Customisable UI
• Profiles, System and Personal

Additional Features

• Clear Lists in Charger
• Site Survey Tool

Technical Specification

Battery

• Type - Li-Polymer
• Speech Time - 15 Hours
• Stand-by Time - (7) 100 Hours
• Charging Time - 2.5 Hours
• Discharge/Charge Cycles: >=80% Capacity Left after 400 Full Charge/Discharge Cycles
• Easy Replaceable Battery

Connectors

• Multi Purpose Connector - For Battery Charging, Software Download and Configuration
• Headset Connector - Standard 2.5mm
