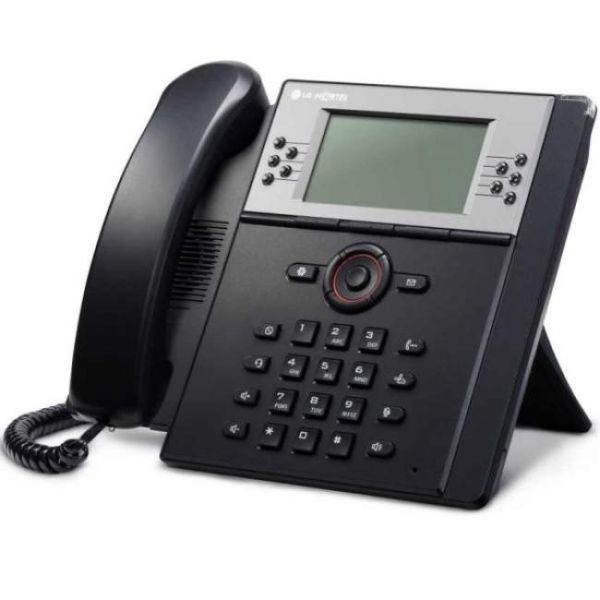

LG-Nortel 8840 VoIP Desktop Phone

LG Nortel's IP 8840 Phone is a strategic information & communications Telephone with high-end functionality designed to boost the productivity of knowledge workers and other critical employees including administrative personnel. The enhanced voice quality afforded by wideband codecs in the IP 8840 creates a more comfortable communication experience for offices.

Fully-supported, customisable functions with 5 programmable buttons on each side of the LCD, and LCD Key labeling give users the opportunity to communicate with less time wasted dealing with a clunky desktop phone. The IP 8840 also benefits users with flexible deployment with Wi-Fi connectivity and offers the advantage of mobility with the optional Bluetooth™ interface for a wireless headset.

The remote no-touch provisioning feature also saves the hassle and expenses of managing, preloading and re-configuring customer premise equipment for mass deployment, and provides high end functionality and its sleek combination of colours and features will fit into any office.

Main Features

• 10 Flexible Programmable Keys with LCD Labels
• 9 Lines - 240 x 144 Backlit Graphic LCD
• Mute Button | Volume Button
• Call Log - Last 100 Calls Received, Dialed or Missed
• Call Forwarding and Call Hold
• Encrypted Confguration Files
• 2 Ethernet Ports, PoE
• Conference Mode
• LED's Indicating Line Status
• Full Duplex Speakerphone
• Supports Multiple Protocols - SIP or MGCP

Features

• Enhanced User Interface via Grayscale 240 x 1440 Pixels LCD Display (9 Lines) with White Backlight for Rich and Convenient User Experience
• Crystal Clear Voice with Wideband Codecs for your Comfort
• 3 Soft Keys Provide Easy Access to Key Features
• Supports up to 10 Line Buttons on the Phone and up to 34 with the LED or LCD Expansion Module
• Flexible connectivity options with Traditional Wired LAN (10/100 Base-T Fast Ethernet) or Wireless LAN Access with the Optional IEEE 802.11b/g (Wi-Fi) Radio Module
• One Button Access to a Wired Headset
• Full Duplex Speakerphone with Wideband Codecs for Excellent Voice Quality
• Enhanced Navigation / Input Options Improve Ergonomics with Four Way Navigation Cluster for Menu Operations
• Voice Message and Incoming Call Status LED Indicator
• Convenient Volume Control Button Provides Easy Adjustment for the Speakerphone, Handset, Headset and Ringer
• Enhanced Configuration using Auto Provisioning with Encrypted files for Security and Password Protected Web and Phone based Configuration
• Integrated Directory/Phonebook for up to 100 Contacts (Stored in the Local Directory/Phonebook)
• Call History for the last 100 Calls (Missed, Received, Dialed Calls and Redial for the last 100 Numbers)
• Small Desktop Footprint with Dual Angle Foot Stand
• Numerous Security Features plus Cost Effective Power Options with IEEE 802.3af Power-over-Ethernet (PoE), or Local Power through an Optional Power Adaptor
• User Friendly Interface with Fixed and Interactive Soft Key Features for Common Telephone Tasks - Call Hold/Call Waiting/Call Park/Call Pick up/Call Forwarding/ Conference Call
• Call Routing Table for Power users; Configure the call Routing Table to Store Data and Recall any Customised Number String

Technical Specifications:

Platform

• IP 8840 is Interoperable with Several Industry Leading Carrier Class Servers (SIP and MGCP) - BroadSoft, Sylantro, Comverse, Cirpack, Nortel, NSN and more

Display

• Backlit Graphic LCD
• 240 x 144 Pixels, 9 Lines

Processor & Memory

• CPU - TNETV 1050
• RAM - 32MB SDRAM
• Flash - 8MB Flash

IP Phone Mounting

• Integrated Wall Mount
• Desktop Foot Stand - 35° or 55°

Programmable Keys

• Programmable Keys (10) LCD icons for Clear Status Indications
• Supports up to Two Optional DSS Modules w/LCD or Paper Label
• 12 Flexible Buttons DSS Module

Fixed & Soft Label Keys

• Fixed Buttons (8) w/3- Colour LED (Red, Green, and Orange), Headset, Volume Up/Down, Hold, Transfer, Mute, Speakerphone, DND Context Sensitive Soft Keys (3)

Navigation Cluster

• Four Way Navigation Cluster (Left, Right Up, Down Arrows, and OK Button)
• Configuration Setting Key (2)
• Message Key (Voice Message System Access)

Administration

• Static and DHCP (Factory Default), FTP
• Auto Provisioning via HTTP/TFTP
• Auto/Remote Firmware Upgrade

Connectivity / Data Rates

• Wired Connection - Integrated 10/100 Base-T Fast Ethernet (Auto Negotiation)
• Wireless Connection - IEEE802.11b/g Wi-Fi Radio Privacy (WEP), WPA -WPA-PSK & WPA2-PSK
• Bluetooth™ Headset Profile, Class2 [4dBm] for Call Answer/ End, Volume Control and Call Transfer)

Protocol Support

• Transport - UDP, TCP/IP, STUN, DHCP, NAT, DNS, FTP, TFTP, HTTP/HTTPS, ARP, NTP/SNTP
• Signaling - -MGCP, SIP, DTMF
• Voice - RTP / RTCP

Power

• PoE Support -IEEE802.3af (Class2)
• Optional Power Adapter - 48 VDC

Audio Quality of Service

• Wideband and Narrowband

Multi-Language Menu Support

• English, French, Spanish, Korean , German, Danish and others

Weight & Dimensions

• Dimensions - 23.5cm x 20.6cm x 12.93cm (W x D x H)
• Weight - 0.95kg
