JPL Scout Push-to-Talk Trigger Switch

The Ergonomically Designed Push-to-Talk Headset Amplifier from JPL is for use in Situations Where Secure Mission Critical Conversations are Needed - Available with Selectable Momentary and Lockable Operation and Momentary Operation Only

About the Scout

Push to Talk (PTT) Headsets are a type of communication device that allow users to communicate with each other by pressing and releasing the microphone trigger switch that opens and closes the microphone on the Headset. This type of Headset is used in environments where privacy and security are important and these types of Headsets are used frequently by Emergency Services, Military, Dispatch Centres and Airlines.

The JPL Scout Push to Talk Switch enables users to attach a Headset with a Quick Disconnect (QD) Connection or a Headset with a 3.5mm Connection to the Scout to enable Push to Talk features to be used.

Advantages of PTT

The main advantages of using Push to Talk (PTT) Headsets are that they allow users to communicate clearly and quickly in noisy, high pressure environments. Sensitive information that is exchanged is protected and secure as you have full control over the transmitting of audio simply by using the trigger switch.

Trigger Switch

With your finger naturally resting on the trigger switch, you can simply press to activate the microphone and speak freely. Release the trigger switch to instantly mute the microphone, Information is only transmitted when the trigger switch is pressed - giving you complete control of the call at your fingertips.

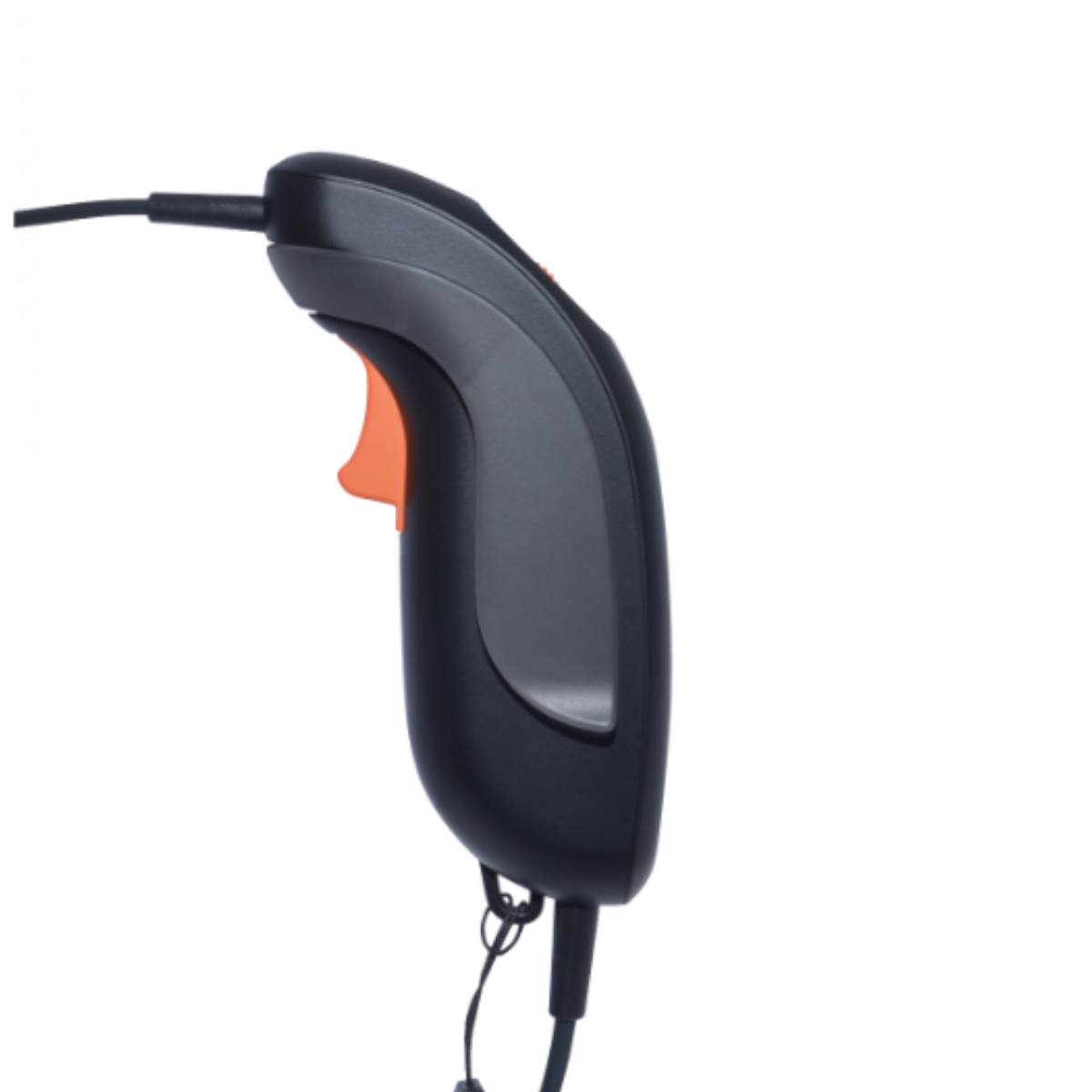

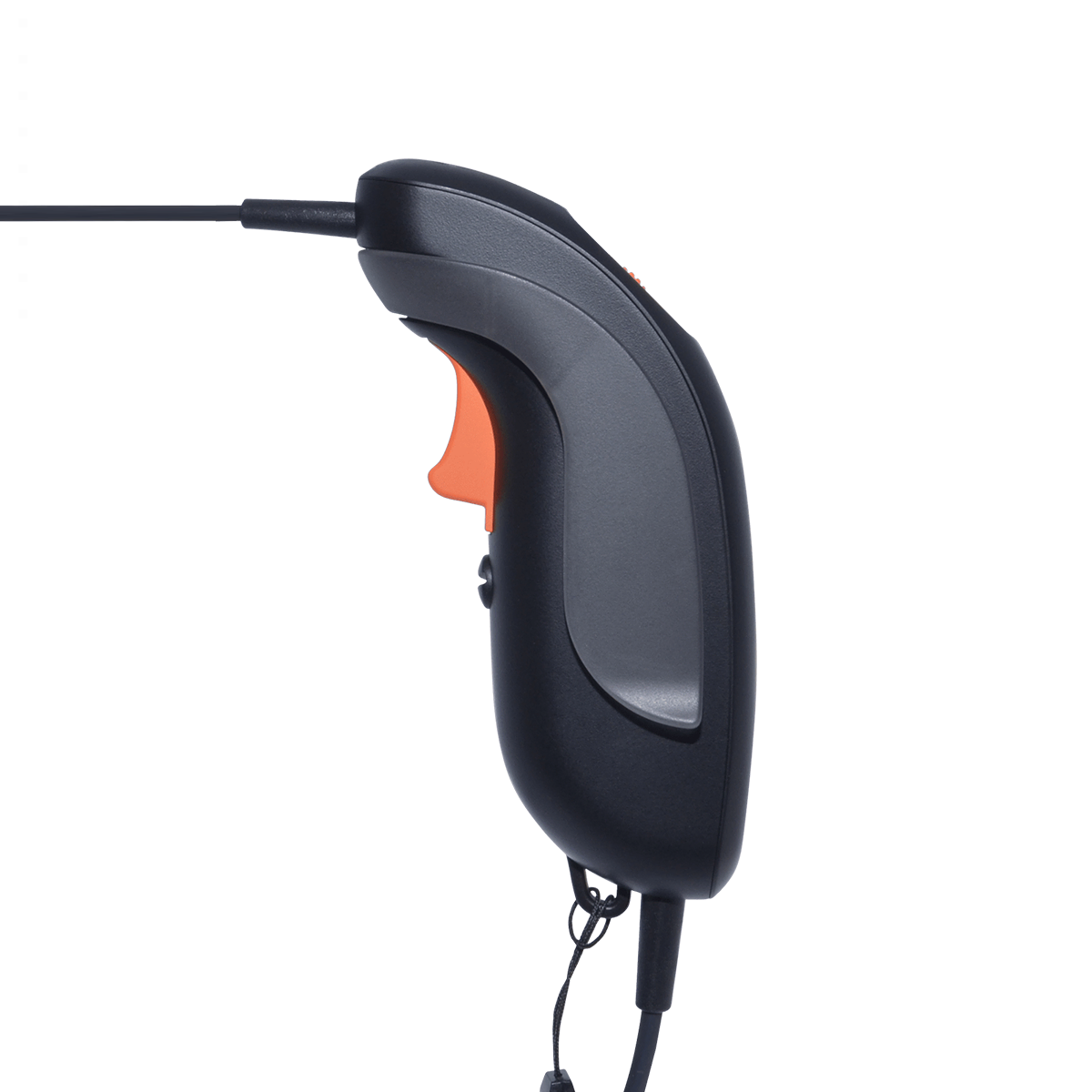

Two versions are available - Selectable Momentary and Lockable Operation and Momentary Operation only (Non Lockable)

LED Indicator

The Scout has been designed with an LED indicator - this lights up green when the microphone is active and in use, and turns to red when the microphone is muted, giving users peace of mind when relaying sensitive and confidential information.

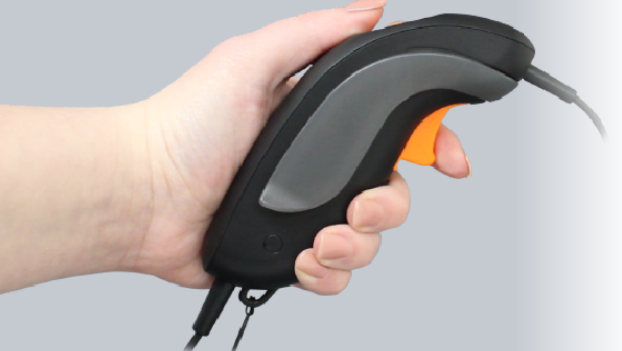

Ergonomic Design

The Scout has been ergonomically designed to fit in the palm of your hand, it also comes with a replaceable belt clip that can be clipped either on the left hand or right hand side depending on the users preference. It is made from durable toughend plastics to that allows the Scout to withstand heavy and constant use in the harshest of conditions.

TAA & NDAA Compliant:

What is TAA & NDAA Compliant

TAA Compliant refers to products that adhere to the U.S. Trade Agreements Act (TAA) of 1979. This legislation mandates that products listed on the GSA Schedule must be either manufactured or significantly altered in the U.S. or a specific TAA-approved country.

The National defence Authorization Act (NDAA) further restricts the purchase of certain telecommunications and video surveillance equipment and components produced by specific foreign entities (e.g., Huawei, ZTE, and their subsidiaries) for government use, particularly by the Department of Defence.

By complying with TAA and relevant NDAA regulations, these products are eligible for purchase by the U.S. federal government, including the Departments of Defence and Homeland Security.

Features

• Essential Product for Emergency Services, Military, Dispatch Centres, Airlines and more
• Compatible with all Major Softphones and Platforms Including Zoom, Microsoft Teams and RingCentral
• Ideal for Situations where Highly Sensitive Information needs to be Exchanged
• Have Full Control of the Microphone by Pressing and Releasing the Trigger
• Ultra Noise Cancelling Enabling Clear and Concise Communication
• LED to Show Microphone in Use and Microphone Muted
• Thumbwheel “Fast Throw” Volume Control
• Push to Talk Trigger Switch with Selectable Locking or Momentary Operation
• Replaceable Belt Clip - Belt Clip has Left or Right Side Wearing Style
• Supplied with Lanyard Strap
• Ergonomic Design - Fits into the Palm of your Hand
• Plastic Screwdriver Supplied to Enable Locking or Momentary Operation of Trigger Switch (Supplied with Selectable Lockable & Momentary Version Only)
• TAA & NDAA Compliant

Technical Information

• Scout 100, 200, 400, 1100 and 1200 - Cord Length - 5ft (1.5m) Straight Cord, Scout 300 and 1300 - Cord Length 15ft (4.5m) Coiled Cord
• Certifications - UKCA, CE, FCC, RoHS - Made in South Korea - TAA Compliant
• Warranty - 2 Year Repair or Replace Warranty

Package Contents

• JPL Scout PTT Switch with Lockable Operation or Momentary Operation - Connection Type - QD (Quick Disconnect), USB-A/C or PJ-7 (2 Prong Plug) Connection - Selectable at Checkout
• Lanyard
• Plastic Screwdriver - with Lockable Version Only

Variants Available

For Quick Disconnect Wired Headsets

• JPL Scout 100 - Selectable Momentary & Lockable Operation & has a QD to QD Connection
• JPL Scout 200 - Selectable Momentary & Lockable Operation & has a QD to USB-A / USB-C Connection
• JPL Scout 300 - Selectable Momentary & Lockable Operation & has a QD to PJ-7 (2prong Plug) Connection
• JPL Scout 1100 - Momentary Operation Only & has a QD to QD Connection
• JPL Scout 1200 - Momentary Operation Only & has a QD to USB-A / USB-C Connection
• JPL Scout 1300 - Momentary  Operation Only & has a QD to PJ-7 (2prong Plug) Connection

_{*Scout 100 and Scout 1100 are QD to QD Connection Only - A Headset Bottom Cord is Required to Connect to your Phone / PC and is not Included*}

For 3.5mm Wired Headsets

• JPL Scout 400 - Selectable Momentary & Lockable Operation & has a 3.5mm to USB-A / USB-C Connection
