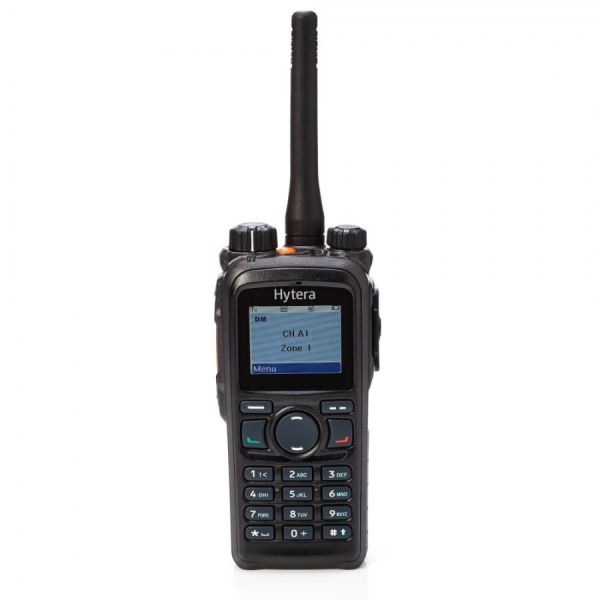

Hytera PD785 UHF Digital Two Way Radio

The Hytera PD785 is a Versatile, Professional, Digital Two Way Radio with full keypad and screen offering a vast array of functionality, with remarkable build quality, enabling reliable and secure communications in any situation and in any environment.

Innovative Design

Separate Control Buttons

The two control buttons are separated from each other by the Antenna, this facilitates easy operation even with gloves.

Large Colour Display

The high resolution, transflective 1.8 Inch LCD Colour Display provides a good readability even under very bright lighting conditions.

Ergonomic Keypad

The Robust hand held Radio has a large keypad and is easy to operate even under difficult operating conditions.

Robustness and Reliability

The Radio meets the requirements of MIL-STD-810 C/D/E/F/G Standards and has passed the HALT tests (Highly Accelerated Life Test).

Dust and Waterproof

The PD785 meets the requirements of degree of protection IP67 and has passed the corresponding immersion test of up to 30 minutes in a water depth of 1 metre.

Emergency Mode

Raise an alarm with top priority to a base station or to other Radios with the pre-programmed emergency mode, identifying the ID of the person who is issuing the alarm. Also receive emergency notifications.

Lone Worker

The Lone Worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

Pseudo Trunking

Using Pseudo Trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

Radio Programming & Licencing

This Radio Requires a License to Operate.

• An Ofcom radio operator's license will need to be Purchased before using the Radio - Please Click Here to Purchase a License
• At PMC, we will program the Radio/s to your new or existing Licensed frequency before we dispatch the radio/s to you.

Highlights

Improved use of the Radio Spectrum

Thanks to the TDMA process the PD785 allows an assignment of the available bandwidth with double channel capacity. This results in a clear relief of the increasing spectrum scarcity.

Ease of Use

Large push buttons allow an easy and comfortable use of the Radio. The large TFT Colour Display provides a good readability even under difficult light conditions. More than 20 programmable keys allows quick access to the various services and functions.

Powerful Battery

Compared to the analog technology using FDMA, with TDMA the battery life can be improved by approx. 40%.

Excellent Voice Quality

With the combined application of the narrow band codex and digital technologies for error correction the PD785 ensures an excellent voice quality even in loud environment and in peripheral areas of Radio coverage.

Functions

• Analog or Digital Operation
• Versatile Voice Calls - Individual Call, Group Call, Broadcast Call, Emergency Call
• Data Services - Text Messages, Group Text Messages, Control of the Radio via API
• Different Analog Dialing Methods - HDC1200, DTMF* - DTMF Available in Future Versions of PD785 (2 Tone and 5 Tone Dialing), Squelch Procedure/Tone Call CTCSS/CDCSS
• Additional Services - Radio Check, Remote Monitor, Call Alert, Radio Enable/Disable
• Languages - German, English, French, Spanish, Polish, Italian, Russian, Turkish, Simplified and Traditional Chinese, Korean)
• One Touch Functions Including Text Messages, Voice Calls and Supplementary Services
• Scanning - of Analog Voice and Signaling, of Digital Voice and Data, Mixed Scanning of Analog and Digital Activities
• Automatic Cell Reselection (Roaming) in IP Multi-Site Systems
• Analog Scrambling and Digital Encryption for Voice and Data using the Advanced Encryption Standard (AES) and ARCFOUR (ARC4) Process
• Upgradeable Software

Technical Data

• Frequency Range - UHF - 400-470 MHz
• Channel Capacity - 1024 Channels
• 64 Zones with up to 16 Channels each
• Channel Spacing (Analog) - 12.5 / 20 / 25 kHz
• Channel Spacing (Digital) - 12.5 kHz
• Operating Voltage - 7.4V (Nominal)
• Standard Battery - 2000 mAh (Lithium-ion Battery)
• Up to 13.5 Hours Talk Time in Analog Mode, Up to 15.5 in Digital Mode
• Frequency Stability - ± 0.5 ppm
• Antenna Impedance - 50 Ω
• Dimensions with Battery, without Antenna - 125mm x 55mm x 37mm
• Weight with Antenna and Standard Battery - 355g
• LCD Display - 160 x 125 Pixels, 65, 536 Colours, 4.57cm, 4 Lines
• Receiver Sensitivity (Analog) - 0.3 μV (12 dB SINAD) 0.22 μV (typical) (12 dB SINAD) 0.4 μV (20 dB SINAD)
• Receiver Sensitivity (Digital) - 0.3 μV/BER 5%
• Transmitting Power - UHF - 1/4W

Package Contents

• Hytera PD785 UHF Radio
• 2000 mAh Li-ion Battery
• Belt Clip
• Leather Strap
• Charger
• Power Supply (PSU)
