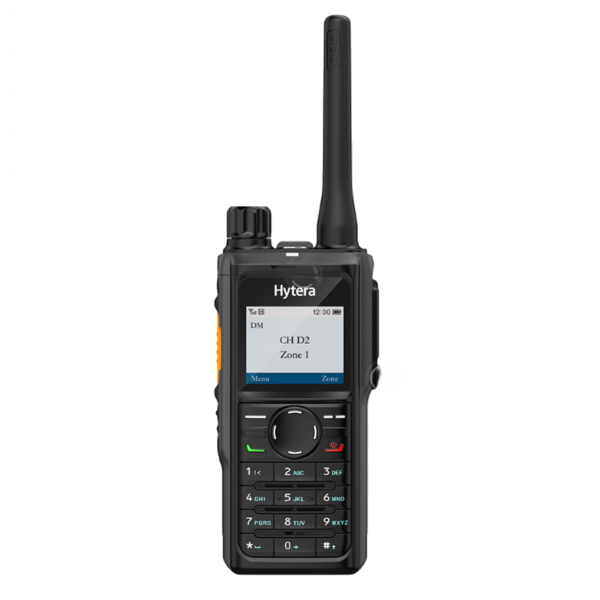

Hytera HP685G Digital & Analogue Two Way Radio

About the Hytera HP685G

The HP685G improves communication efficiency whether you're working in customer service or tough environments. This compact, lightweight Digital Radio helps staff stay safe and connected with superior audio clarity and a long lasting 24 hour battery, allowing them to focus completely on their work.

The Hytera HP685G includes all same features as the Hytera HP685, the HP685G is the upgraded model and features Integrated Bluetooth for wireless accessories and GPS for location tracking.

Lightweight and Stylish

The streamlined HP685G is compact and light, built for ease of use with a tactile Push-to-Talk (PTT) and programmable buttons for frequently used functions.

Clear Audio

The Hytera HP685G utilises cutting edge, AI based Noise Cancellation to suppress unwanted background noise and eliminate audio feedback (howling). This ensures users maintain exceptionally clear audio, allowing them to hear and be heard clearly in any environment.

Long Battery Life

Standard with the HP685G is a long battery life exceeding 20 hours (at a 5-5-90 cycle). This capability ensures that users can complete their shifts without the inconvenience of having to recharge or swap the battery.

Rugged and Durable

Hytera HP685G is rugged and reliable, designed for the most challenging work sites. It meets the MIL-STD-810 G military standard, holds an IP67 rating, and can survive drops from up to 2 metres.

Bluetooth Audio

Seamless wireless connections to audio accessories for enhanced user mobility.

GPS

Facilitates location-based services for enhanced staff safety and rapid incident response.

Advanced Encryption

Advanced encryption delivers robust, reliable security for all communications.

Roaming

Roaming enables radios to transition seamlessly across multiple IP Multi-site Connect or XPT sites, ensuring uninterrupted connectivity.

Frequencies

The Hytera HP685G is available in both UHF and VHF Frequencies.

The Frequency UHF (400-527 MHz), is generally better for indoor use, built-up areas, and environments with obstructions like buildings and concrete, as UHF waves can penetrate these materials more effectively.

The Frequency VHF (136-174 MHz), is generally better for outdoor use and open areas, as VHF waves travel further over clear lines of sight.

_{*This Radio Requires an Ofcom License to operate - if you do not already have an Existing Ofcom Radio License, you will need to purchase a License before using the Radio*}

Please Click Here to Purchase an Ofcom License

Features

• UHF - 400-527 MHz or VHF - 136 - 174 MHz
• Licensed Radio
• 1.8 Inch Colour Display - 160 x 128 Pixels
• Long Battery Life - Over 20 Hours @ 5-5-90 as Standard
• IP67 Rated - Can Withstand a 2 Metre Drop and Meets MIL-STD-810 G Standard
• Two Programmable Buttons
• 1024 Channels, 64 Zone Capacity
• Channel Spacing - 12.5kHz / 20kHz / 25kHz
• Private Call, Group Call and All Call
• Emergency Call, PSTN/PABX Call
• Dual Mode - Analogue and Digital
• Lone Worker, Man Down
• Roaming, Advanced Encryption
• Bluetooth Audio and Bluetooth Data
• GNSS - GPS, GLONASS

Specifications:

General

• Frequency Range - UHF - 400-527 MHz or VHF - 136-174 MHz
• Channel Capacity - 1024
• Zone Capacity - 64
• Channels Per Zone - 256
• Channel Spacing - 12.5kHz / 20kHz / 25kHz
• Operating Voltage - 7.7V (Rated)
• Battery - 2000 mAh Polymer
• Battery Life - 20 Hours
• Frequency Stability - ±O.Sppm
• Antenna Impedance - 50 Ω
• Dimensions - 122mm x 55mm x 31.5mm (H x W x D)
• Weight with Battery and Antenna - 280g
• 1.8 Inch Colour Display - 160 x 128 Pixels

Receiver

• Sensitivity - Analogue - 0.18µV (12dB SINAD),  0.16µV (Typical) (12dB SINAD), Digital - 0.18µV/BERS%
• Selectivity - TIA-603 - 60dB@l2.5kHz / 70dB@20/25kHz, ETSI - 60dB@l 2.SkHz / 70dB@20/25kHz
• Intermodulation - TIA-603 - 70dB@l 2.5/20/25kHz, ETSI - 6SdB@l 2.5/20/25kHz
• Spurious Response - TIA-603 - 70dB@l 2.5/20/25kHz, ETSI - 70dB@l 2.5/20/25kHz
• Blocking - TIA-603 - 80dB ETSI: 84dB
• Hum and Noise - 40dB@l 2.SkHz; 43dB@20kHz;45dB@2SkHz
• Rated Audio Power Output - 0.5W
• Rated Audio Distortion - <3%
• Audio Response - +1 to -3 dB
• Conducted Suprious Emission - < -57 dBm

Transmitter

• RF Power Output - UHF - 1W / 4W, VHF - 1W / 5W
• FM Modulation - 11 KOF3E@l 2.SkHz, 14KOF3E@20kHz, 16KOF3E@25kHz
• 4SFK Digital Modulation - 12.SkHz Data Only - 7K60FXD, 12.SkHz Data and Voice - 7K60FXW
• Conducted/Radiated Emission -36dBm< 1 GHz;-30dBm> 1 GHz
• Modulation Limiting - ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
• FM Hum & Noise - 40dB@l 2.SkHz; 43dB@20kHz; 45dB@25kHz
• Adjacent Channel Power - +1 ~-3dB
• Audio Distortion - <3%
• Digital Vocoder Type - AMBE+2™

Location Services

• GNSS - GPS, GPS+GLONASS, GPS+BDS
• TTFF(TimeTo First Fix) Cold Start - <1 Minute
• TTFF(Time To First Fix) Hot Start - <10 Seconds
• Horizontal Accuracy - <S Metres

Bluetooth

• Bluetooth Version 5.0 BLE+EDR

Environmental

• Dustproof and Waterproof - IEC60529-IP67
• Humidity - MIL-STD-810 G
• Shock and Vibration - MIL-STD-810 G

Package Contents

• Hytera HP685G Two Way Radio
• UHF or VHF Antenna (Select at Checkout)
• 2000 mAh Battery
• Belt Clip
