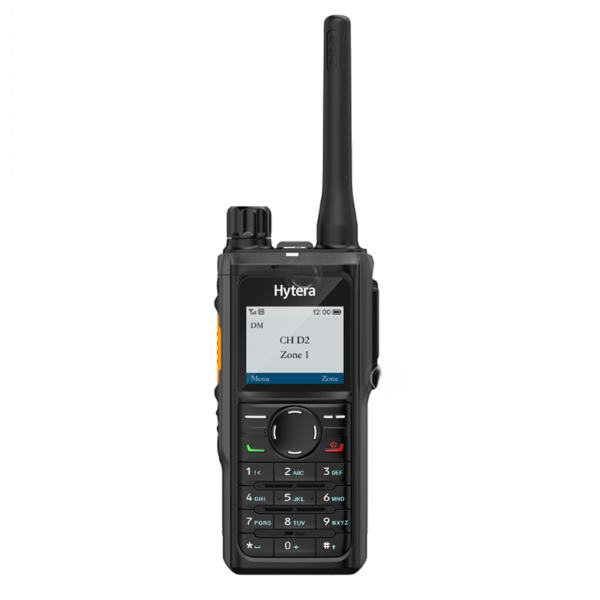

Hytera HP685 Digital & Analogue Two Way Radio

About the Hytera HP685

The HP685 improves communication efficiency whether you're working in customer service or tough environments. This compact, lightweight Digital Radio helps staff stay safe and connected with superior audio clarity and a long lasting 24 hour battery, allowing them to focus completely on their work.

Lightweight and Stylish

The streamlined HP685 is compact and light, built for ease of use with a tactile Push-to-Talk (PTT) and programmable buttons for frequently used functions.

Clear Audio

The Hytera HP685 utilises cutting edge, AI based Noise Cancellation to suppress unwanted background noise and eliminate audio feedback (howling). This ensures users maintain exceptionally clear audio, allowing them to hear and be heard clearly in any environment.

Long Battery Life

Standard with the HP685 is a long battery life exceeding 20 hours (at a 5-5-90 cycle). This capability ensures that users can complete their shifts without the inconvenience of having to recharge or swap the battery.

Rugged and Durable

The HP685 is rugged and reliable, designed for the most challenging work sites. It meets the MIL-STD-810 G military standard, holds an IP67 rating, and can survive drops from up to 2 metres.

Extended Range

With enhanced receiver sensitivity the Hytera HP685 ensures reliable connectivity even in areas of weak signal or indoors, thereby boosting field safety and operational efficiency.

Frequencies

The Hytera HP685 is available in both UHF and VHF Frequencies.

The Frequency UHF (400-527 MHz), is generally better for indoor use, built-up areas, and environments with obstructions like buildings and concrete, as UHF waves can penetrate these materials more effectively.

The Frequency VHF (136-174 MHz), is generally better for outdoor use and open areas, as VHF waves travel further over clear lines of sight.

_{*This Radio Requires an Ofcom License to operate - if you do not already have an Existing Ofcom Radio License, you will need to purchase a License before using the Radio*}

Please Click Here to Purchase an Ofcom License

Features

• UHF - 400-527 MHz or VHF - 136 - 174 MHz
• Licensed Radio
• 1.8 Inch Colour Display - 160 x 128 Pixels
• Full Reliable and Durable Keypad for Direct Dialling, SMS Messages and Menu Navigation
• Tactile PTT Button
• Long Battery Life - Over 20 Hours @ 5-5-90 as Standard
• IP67 Rated - Can Withstand a 2 Metre Drop and Meets MIL-STD-810 G Standard
• Two Programmable Buttons
• 1024 Channels, 64 Zone Capacity
• Channel Spacing - 12.5kHz / 20kHz / 25kHz
• Private Call, Group Call and All Call
• Emergency Call, PSTN/PABX Call
• Dual Mode - Analogue and Digital
• Lone Worker, Man Down

_{*Please Note that This Version Does Not Include Bluetooth and GPS*}

Specifications:

General

• Frequency Range - UHF - 400-527 MHz or VHF - 136-174 MHz
• Channel Capacity - 1024
• Zone Capacity - 64
• Channels Per Zone - 256
• Channel Spacing - 12.5kHz / 20kHz / 25kHz
• Operating Voltage - 7.7V (Rated)
• Battery - 2000 mAh Polymer
• Battery Life - 20 Hours
• Frequency Stability - ±O.Sppm
• Antenna Impedance - 50 Ω
• Dimensions - 122mm x 55mm x 31.5mm (H x W x D)
• Weight with Battery and Antenna - 280g
• Display - 1.8 Inch - 16 x 128 Pixels - 65536 Colours, 6 Rows

Receiver

• Sensitivity - Analogue - 0.18µV (12dB SINAD),  0.16µV (Typical) (12dB SINAD), Digital - 0.18µV/BERS%
• Selectivity - TIA-603 - 60dB@l2.5kHz / 70dB@20/25kHz, ETSI - 60dB@l 2.SkHz / 70dB@20/25kHz
• Intermodulation - TIA-603 - 70dB@l 2.5/20/25kHz, ETSI - 6SdB@l 2.5/20/25kHz
• Spurious Response - TIA-603 - 70dB@l 2.5/20/25kHz, ETSI - 70dB@l 2.5/20/25kHz
• Blocking - TIA-603 - 80dB ETSI: 84dB
• Hum and Noise - 40dB@l 2.SkHz; 43dB@20kHz;45dB@2SkHz
• Rated Audio Power Output - 0.5W
• Rated Audio Distortion - <3%
• Audio Response - +1 to -3 dB
• Conducted Suprious Emission - < -57 dBm

Transmitter

• RF Power Output - UHF - 1W / 4W, VHF - 1W / 5W
• FM Modulation - 11 KOF3E@l 2.SkHz, 14KOF3E@20kHz, 16KOF3E@25kHz
• 4SFK Digital Modulation - 12.SkHz Data Only - 7K60FXD, 12.SkHz Data and Voice - 7K60FXW
• Conducted/Radiated Emission -36dBm< 1 GHz;-30dBm> 1 GHz
• Modulation Limiting - ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
• FM Hum & Noise - 40dB@l 2.SkHz; 43dB@20kHz; 45dB@25kHz
• Adjacent Channel Power - +1 ~-3dB
• Audio Distortion - <3%
• Digital Vocoder Type - AMBE+2™

Environmental

• Dustproof and Waterproof - IEC60529-IP67
• Humidity - MIL-STD-810 G
• Shock and Vibration - MIL-STD-810 G

Package Contents

• Hytera HP685 Two Way Radio
• UHF or VHF Antenna (Select at Checlout)
• 2000 mAh Battery
• Belt Clip
