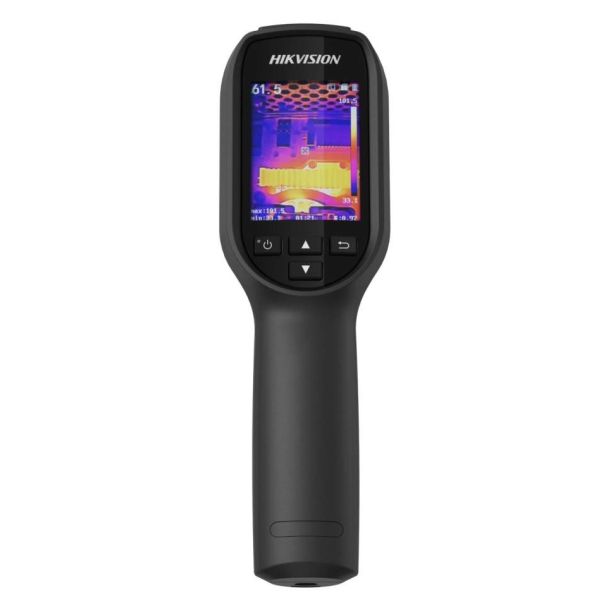

Hikvison Handheld Thermal Fever Screening Camera

Hikvison Handheld Thermal Fever Screening Camera

Contact Free - Multi-Person Detection - One Second to Detect Skin Surface Temperature - Up to 8 Hours Continuous Operation - 2.4 Inch LCD Display

The Hikvision Handheld Thermal Camera is specially designed to detect elevated skin surface temperature with high accuracy in real time. Equipped with a 160 x 120 Resolution Thermal Detector, it can be widely used for preliminary temperature screening in Office Buildings, Factories, Airports, Stations and other public places.

The DS-2TP31B-3AUF Handheld Camera records thermal images in a choice of four Colour Palettes - Black Hot, White Hot, Rainbow or Ironbow, and will run for up to 8 hours on a full charge and is then charged via a USB Cable which is included.

The images are displayed on a 2.4 Inch LCD Screen with 320 x 240 resolution.

Key Features

• 160 x 120 Resolution
• Thermographic Accuracy up to ±0.5 °C
• 320 x 240 Resolution 2.4 Inch LCD Display
• Built in Rechargeable Li-ion Battery
• Up to 8 Hours Continuous Running Time

Functions:

Thermography

Device Detects the Real Time Temperature, and Displays the Temperature on the Screen.

Storage

The Device is Equipped with a Replaceable Memory Card to Store Recorded Capture Snapshots, and Important Data.

Palette

The Device Supports 4 Palettes - Black Hot, White Hot, Rainbow and Ironbow.

Specifications:

• Model - DS-2TP31B-3AUF
• Parameter - Handheld Thermography Camera
• Image Sensor - Uncooled Focal Plane Arrays
• Max Resolution - 160 x 120
• Pixel Pitch - 17μm
• Response Waveband - 8μm to 14μm
• NETD - < 40mK (@ 25 °C,F#=1.0)
• Field of View - 37.2° × 50 °
• Focal Length - 3.1mm
• IFOV (mrad) - 5.48 mrad
• Min Focus Length - ≥ 150 mm
• Aperture - F1.1
• Monitor - 320 x 240 Resolution - 2.4 Inch LCD Display
• Palettes - Black Hot, White Hot, Rainbow and Ironbow
• Rules - 3 Thermometry Points - Maximum Temperature, Minimum Temperature, Centre Temperature
• Thermographic Range - 30°C to 45 °C
• Thermographic Accuracy - ±0.5 °C
• Battery Type - Rechargeable Lithium Battery
• Battery Operating Time - 8 Hours Continuous Running
• Storage - Replaceable Memory Card (Default 8G, Support up to 125G Storage
• Photo - Thermal Image
• Language - English
• Power - 3.7V DC/0.4A
• Power Consumption - Less than 1.2W
• Hardware Interface - Micro USB
• Protection Level - IP54
• Drop Test Height - 2m (6.56 Feet)
• Dimensions - 196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
• Weight - Approximately - 350g (0.77lb)
