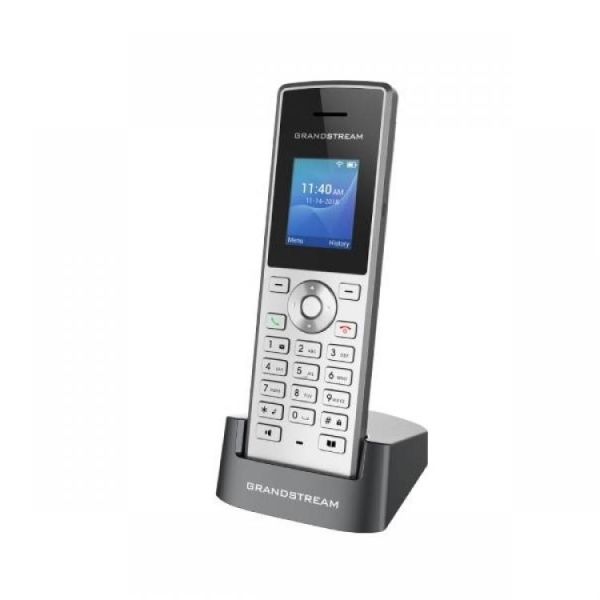

Grandstream WP810 - Cordless Wi-Fi IP Phone

2 SIP Accounts | 2 Lines | Dual Band Wi-Fi | Micro USB Port & 3.5mm Headset Jack | Configurable Push to Talk Button | 6 Hours of Talk Time | 120 Hours of Standby Time

The WP810 is a portable Wi-Fi IP Phone that is designed to suit a variety of enterprises and vertical market applications, including retail, logistics, security and medical. The Cordless IP Phone comes equipped with integrated dual band 802.11 a/b/g/n/ac (2.4GHz & 5GHz) Wi-Fi and an advanced antenna that allows users to seamlessly roam throughout any Wi-Fi environment. The six hour talk time and HD Voice with Dual Microphones make the Grandstream WP810 and affordable option and comes equipped with a combination of features, mobility and durability to suit all portable telephony needs.

Key Features

• Dual-Band Wi-Fi with Efficient Antenna Design and Advanced Roaming and Support
• 2 SIP Accounts, 2 Lines
• HD Voice & Dual Mic Design with AEC and Noise Shield Technology
• Rechargeable 1500mAh Battery | 6 Hour Talk Time | 120 Hour Standby Time
• Configurable Button for Push to Talk
• Micro USB Port and 3.5mm Headset Jack

Technical Specifications:

Power & Green Energy Efficiency

• Universal Power Adapter Included - Input - 100-240VAC, Output - +5VDC, 1A (5W)
• 1500mAh Li-ion Battery, 120 Hours Standy Time and 6 Hours Talk Time

Protocol/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, 802.1x, TLS, SRTP, IPv6

Voice Codecs and Capabilities

• Support for G.711µ/a, G.729A/B, G.722 (Wide-Band), iLBC, Opus, In-Band and Out-of-Band DTMF (In Audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Wi-Fi

• Integrated Dual Band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz)

Wi-Fi Encryption

• WEP, WPA/WPA2, WPA Enterprise

Telephony

• Hold, Transfer, Forward, 3-Way Audio Conference, Call Waiting, Call Log (Up to 100 Records), Off Hook Auto Dial, Auto Answer, Flexible Dial Plan, Personalised Music Ringtones, Server Redundancy and Fail-Over, Push to Talk

Push to Talk

• Customisable Button for Push to Talk

Graphic

• 1.8 Inch (128 x 160) TFT Colour LCD

Peripherals

• 2 Soft Keys, Dial, Hangup, Speakerphone, Phonebook, Backlit Keypad, Proximity Sensor, Vibration Motor, Volume Button and Navigation Keys

Auxiliary Ports

• 3.5mm Headset Jack, Micro USB Port for Charging, Dual-MIC, Dual-Colour MWI LED

Security

• User and Administrator Level Passwords, MD5 and MD5-sess based Authentication, 256-bit AES based Secure Configuration Fle, SRTP, TLS, 802.1x Media Access Control

HD Audio

• Both on Handset and Speakerphone with Support for Wideband Audio, HAC Supported

QoS

• 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS

Multi-Language

• English, Chinese, German, French, Italian, Portuguese, Russian, Spanish, and more

Upgrade/Provisioning

• Firmware Upgrade via TFTP/HTTP/HTTPS/FTP/FTPS, Mass Provisioning using Encrypted XML Configuration File, Manual Upload

Physical

• Dimensions - 158.5mm x 50mm x 22.5mm
• Charging Cradle Dimensions - 81.5,, x 75.89mm x 36.36mm
• Handset Weight - 120g
• Handset Package Weight ( Not Including QIG) - 340g

Compliance

• FCC, CE, RCM, IC

Package Contents

• Handset Unit
• Universal Power Supply
• Charging Cradle
• Belt Clip
• 1 x Li-ion Battery
• Quick Start Guide
