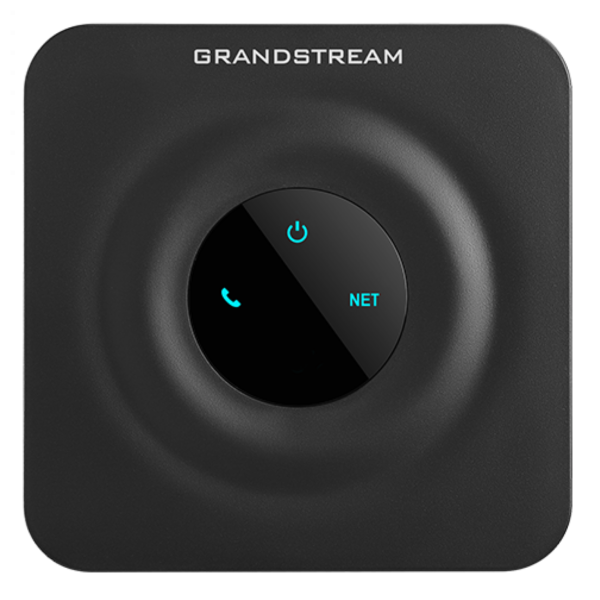

Grandstream HT801 V2 - 1 Port FXS ATA

About the HT801-V2

The HT801 V2 is a single-port AnalogueTelephone Adapter (ATA) that enables users to establish a high-quality, easily managed IP telephony solution for both home and office settings.

In an ultra-compact form factor, the HT801 V2 delivers exceptional voice quality, advanced VoIP features, and robust security protection. These capabilities, along with auto-provisioning, make it easy for users to integrate VoIP with analog phones and allow service providers to deploy high-quality IP services in both small and large commercial settings.

Features

• Supports 1 SIP Profile Through a Single FXS Port and a Single 10/100Mbps Port
• TLS and SRTP Security Encryption Technology to Protect Calls and Accounts
• Automated Provisioning Options Include TR-069 and XML Config Files
• Supports 3 Way Voice Conferencing
• Failover SIP Server Automatically Switches to Secondary Server if Main Server Loses Connection
• Supports T.38 Fax for Creating Fax-over-IP
• Supports Wide Range of Caller ID Formats
• Use with Grandstreams UCM Series of IP PBX`s for Zero Configuration Provisioning
• Supports a Wide Range of Caller ID Formats, Call Transfer, Call Forward, Call Hold, Do not Disturb and more

Specifcations

Interfaces

• Telephone Interfaces - One FXS Ports
• Network Interfaces - One 10/100Mbps Auto-Sensing Ethernet Ports (RJ45)
• LED Indicators - POWER, NET, PHONE
• Factory Reset Button - A Factory Reset Button is Included

Voice, Fax, Modem

• Telephony Features - Caller ID Display or Block, Call Waiting, Flash, Blind or Attended Transfer, Forward Hold, Do Not Disturb, 3 Way Conference
• Voice Codecs - G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, Dynamic Jitter Buffer, Advanced Line Echo Cancellation
• Fax Over IP - T.38 Compliant Group 3 Fax Relay up to 14.4kpbs and Auto-Switch to G.711 for Fax Pass-Through
• Short / Long Haul Ring Load - 5 REN - Up to 1km on 24 AWG
• Caller ID - Bellcore Type 1 & 2, ETSI, BT, NTT and DTMF Based CID
• Dial Methods - DTMF, Pulse
• Disconnect Methods - Busy Tone, Polarity Reversal/Wink, Loop Current

Signalling

• Network Protocols - TCP/IP/UDP, RTP/RTCP (RFC1889,1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE
• QoS - Layer 2 (802.1Q VLAN, SIP/RTP 802.1p), Layer 3 (ToS, DiffServ, MPLS)
• DTMF Method - In Audio, RFC2833 and/or SIP INFO
• Provisioning and Control - HTTP, HTTPS, SSH, TFTP, TR-069, Secure and Automated Provisioning using AES Encryption, Syslog

Security

• Media - SRTP
• Control - TLS/SIPS/HTTPS
• Management - Syslog Support, SSH, Remote Management Using Web Browser

Weight and Dimensions

• Weight - 114g (Without Packaging)
• Dimensions - 100mm x 100mm x 29.5mm

Universal Power Supply

• Input - 100-240VAC, 50-60Hz
• Output - 5.0VDC / 1.0A

Package Contents

• Grandstream HT801-V2 2 Port FXS Gateway
• Power Supply
• Ethernet Cable
• User Documentation
