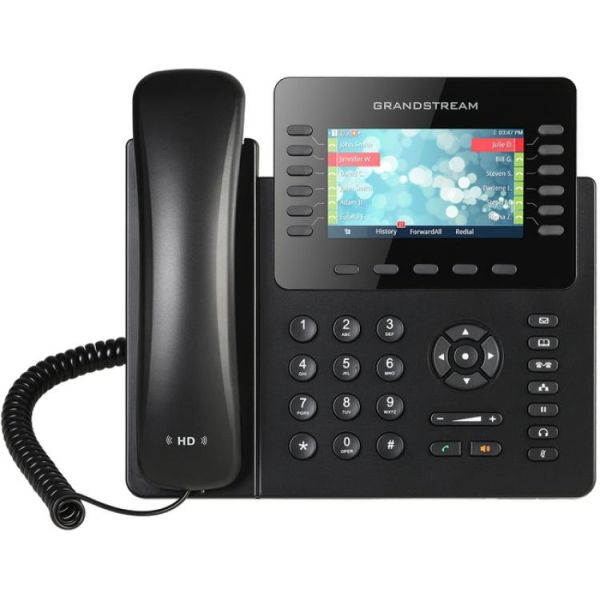

Grandstream GXP2170 12 Line Enterprise Colour IP Phone

Users are provided with the fastest possible connection speeds thanks to the devices dual Gigabit PoE Network Ports, Maximised call control, expandable speed dial/BLF capabilities and its sleek design make the phone the ultimate high volume experience.

As all Grandstream IP Phones do, the GXP2170 features state of the art security encryption technology (SRTP and TLS), whilst supporting a variety of automated provisioning options including zero configuration with Grandstreams UCM Series IP PBXs, encrypted XML files and TR-069, making mass deployment easier.

Features

• 12 Lines
• 6 SIP Accounts, 5 Soft Keys and 5-Way Voice Conferencing
• 48 On-Screen Digitally Customisable BLF/Speed Dial Keys
• 4.3 Inch (480 x 272) Colour Screen LCD
• Dual Gigabit Ports, Integrated PoE
• Integrated Bluetooth
• Supports up to Four GXP2200EXT Modules for BLF/Speed Dial Access up to 160 Contacts
• Multi-Language - English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese
• Dimensions - 228mm(W) x 206mm(L) x 46mm(H)

Feature Keys

• 12 Line Keys with up to 6 SIP Accounts
• 5 XML Programmable Context Sensitive Keys
• 5 Navigation/Menu Keys
• 11 Dedicated Function Keys for - Message (With LED Indicator), Phonebook, Transfer, Conference, Hold, Headset, Mute, Send/Redial. Speakerphone, Vol+, Vol-

Graphic Display

• 4.3 Inch (480x272) TFT Colour LCD

Voice Codecs

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722(Wide-Band), In-Band and Out-of-Band DTMF(In Audio, RFC2833, SIP INFO)

Telephony Features

• Hold, Transfer, Forward, 5 Way Conference, Call Park, Call Pickup, Shared Call Appearance (SCA) Bridged Line Appearance (BLA), Downloadable Phonebook (XML, LDAP, up to 2000 Items),Call Waiting, Call Log(up to 500 Records), XML Customization of Screen, Off Hook Auto Dial, Auto Answer, Click to Dial, Flexible Dial Plan, Hot Desking, Personalised Music Ringtones and Music on Hold, Server Redundancy and Fail Over

Network Interfaces

• Dual Switched Auto-Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration File, SRTP, TLS, 802.1 x Media Access Control

Package Contents

• Grandstream GXP2170 Enterprise IP Phone
• Handset with Cord
• Base Stand
• Universal Power Supply
• Network Cable
• Quick Installaton Guide
• GPL License
