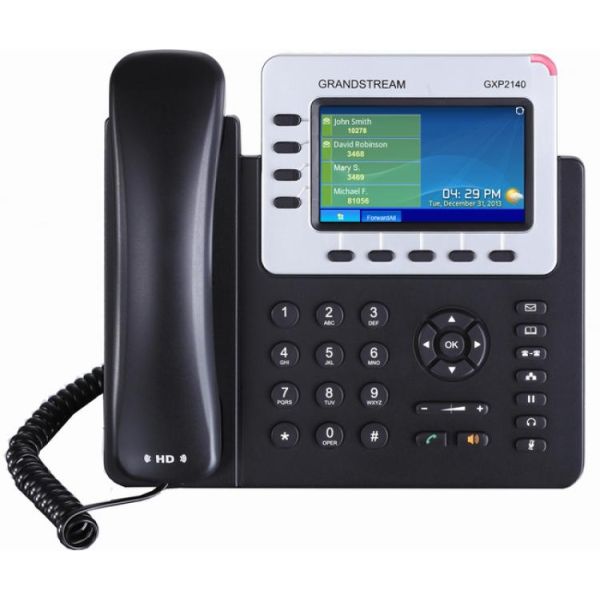

Grandstream GXP2140 Enterprise Colour IP Phone

The Grandstream GXP2140 is a versatile Enterprise IP Phone that brings a rich and vibrant display and call control to the medium to high volume call user. Providing the perfect balance for the call-intensive users desktop with its 4 lines, 5 programmable soft keys and feature loaded controls.

Its 4.3 Inch Colour Display creates a high quality user experience, and its dual Gigabit Poe Ports, HD Audio and Integrated Bluetooth makes the GXP2140 highly versatile. The phone also comes preloaded with weather and currency exchange apps and up to four GXP2200 Extension Modules can be added making an additional 160 lines.

Features

• Supports 4 Lines
• 4 SIP Accounts and 5 Way Voice Conferencing
• HD Audio on Speakerphone and Handset
• 5 Pogrammable Context Sensitive Soft Keys
• Compatible with GXP2200 LCD Extension Module (GXP2200 EXT)
• 4.3 Inch (480 x 272) Colour Screen LCD
• Dual Gigabit Ports, Integrated PoE
• Integrated Bluetooth for Use with Bluetooth Headsets and Bluetooth Enabled Mobile Devices (Transferring Phonebooks and Calls), USB, EHS for Plantronics Headsets
• Dimensions - 228mm (W) x 206mm (L) x 46.5mm (H)
• Multi-Language - English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish

Feature Keys

• 4 Line Keys with up to 4 SIP Accounts
• 5 Programmable Context Sensitive Soft Keys
• 5 Navigation/Menu Keys
• 11 Dedicated Function Keys for Message (With LED Indicator), Phonebook, Transfer, Conference, Hold, Headset, Mute, Send/Redial, Speakerphone, Vol+, Vol-

Graphic Display

• 4.3 Inch (480x272) TFT Colour LCD

Voice Codecs

• Support for G.729A/B, G.711µ/a-law, G.726, G.722 (Wide-Band), and iLBC, In-Band and Out-of-Band DTMF (In Audio, RFC2833, SIP INFO)

Telephony Features

• Hold, Transfer, Forward, 5 Way Conference, Call Park, Call Pickup, Shared Call Appearance (SCA), Bridged Line Appearance (BLA), Downloadable Phonebook (XML, LDAP, up to 2000 Items), Call Waiting, Call Log (Up to 500 Records), Customisation of Screen, Off Hook Auto Dial, Auto Answer, Click to Dial, Flexible Dial Plan, Hot Desking, Personalized Music Ringtones and Music On Hold, Server Redundancy and Fail Over

Network Interfaces

• Dual Switched Auto-Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE

Upgrade/Provisioning

• Firmware Upgrade Via TFTP/HTTP/HTTPS, Mass Provisioning Using TR-069 or Encrypted XML Configuration File

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, AES Based Secure Configuration File, SRTP, TLS, 802.1x Media Access Control

Package Contents

• Grandstream GXP2140 Enterprise IP Phone
• Handset
• Curly Cord
• Base Stand
• Universal Power Supply
• Network Cable
• Quick Start Guide
