- Integrated Wi-Fi 7 & 4x4:4 MU-MIMO on 5G and 6G Band and 2x2:2 MU-MIMO on 2.4G Band with MLO, 4KQAM, MRU, Premable Puncturing Technology
- Up to 175m Coverage Range
- Supports 768 Concurrent Wi-Fi Client Devices
- Advanced QoS, PoE++
- Anti-Hacking Secure Boot
-
Tri-Band

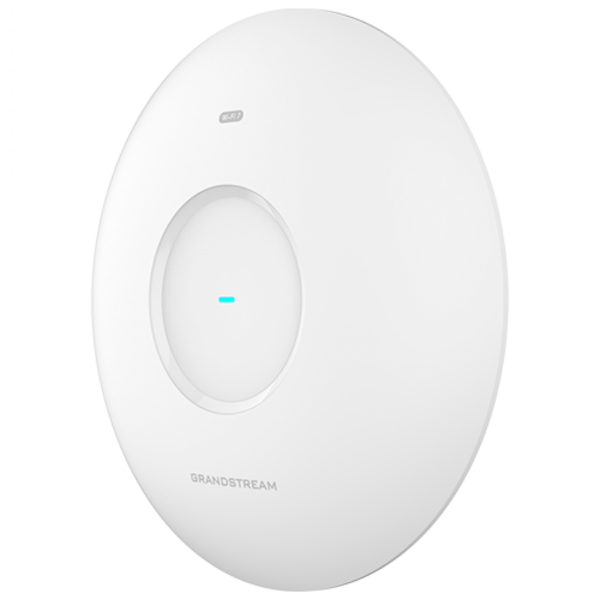

Grandstream GWN7674 Tri-Band Wi-Fi 7 Access Point
PMC Product code
21051
Manufacturer's Product Code
GWN7674
In Stock
Condition
Brand New
£221.00 £265.20
About the Grandstream GWN7674
The GWN7674 is a high-performance, enterprise-grade Wi-Fi 7 access point engineered for demanding, high-density environments. Delivering aggregate speeds up to 21Gbps (BE21000), it utilises a sophisticated 4x4:4 MU-MIMO antenna array on the 5GHz and 6GHz bands to maximize throughput and coverage.
At its core, the GWN7674 leverages cutting-edge Wi-Fi 7 features including MLO, 4096-QAM, and Preamble Puncturing - to ensure ultra-low latency and seamless connectivity. An integrated, independent scanning radio provides real-time monitoring of environmental airwaves and client signal health. Management is simplified through an embedded controller-less interface, with full support for Grandstream’s GDMS (Cloud) and GWN Manager (On-premise) platforms. With dual 2.5G/10G ports and support for 768 concurrent clients, it is the premier solution for voice-over-Wi-Fi and mission-critical enterprise networks.
Tri-Band Maximises Speeds and Clients
To deliver faster speeds and broader device support, the GWN7674 uses three wireless bands - 2.4 GHZ, 5 GHz and 6 GHz to make the most efficient use of every available signal.
Features
Gigabit
21Gbps Aggregate Wireless Tthroughput, 12.5Gbps Aggregate Wired Throughout.
175 Metre Range
Supports a wireless range of up to 175 metres.
Wi-Fi Client Devices
Supports 768 concurrent Wi-Fi client devices.
QoS
Advanced QoS ensures real time performance of low latency applications.
Anti-Hacking
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device.
PoE++
Self power adaptation upon auto detection of PoE++.
Embedded Controller
Embedded controller can manage up to 50 local GWN series APs, GDMS Networking offers unlimited AP management, GWN Manager offers premise based software controller.
Ideal for
The Grandstream GWN7674 can be deployed in various scenarios that include - Offices - Medium and large offices can create a mobile working enviroment, Commercial Shops - Commercial Shops can create Wi-Fi environments for both guests and staff, Education - In demanding education environmentsm the GWN7674 can hep staff and students by provding a rapid wireless connection.
Wi-Fi 7 Certified - 4X4 MIMO
Integrated Wi-Fi 7 & 4x4:4 MU-MIMO on 5G and 6G Band and 2x2:2 MU-MIMO on 2.4G Band with MLO, 4KQAM, MRU, Premable Puncturing Technology.
About Wi-Fi 7
Wi-Fi CERTIFIED 7™ has arrived to meet the increasing demand for immersive, high-interaction digital experiences. Built on the IEEE 802.11be standard, Wi-Fi 7 dramatically boosts performance across the 2.4 GHz, 5 GHz, and 6 GHz bands. It introduces the high throughput and ultra-low latency required for the next generation of home, enterprise, and industrial innovation. Even in high-density environments like campuses and stadiums, Wi-Fi 7 ensures a rock-solid, dependable connection for every device on the network.
Wi-Fi 7 Channels are twice the size of Wi-Fi 6 Channels, allowing Grandstream's Wi-fi 7 AP's to provide maximum speeds and capacity.
Technical Specifications
Antenna
- 12 Single Built-In Antennas
- 2.4GHz x 2, Gain 4.5dBi
- 5GHz x 4, Gain 5.5dBi
- 6GHz x 4, Gain 6.0dBi
- BT x 1, Gain 4.5dBi
- Scanning x 1, Gain 2.4G:4.5dBi/ 5G:5.5dBi
MIMO
- 2.4GHz - 2x2:2, MU-MIMO
- 5GHz - 4x4:4, MU-MIMO
- 6GHz - 4x4:4, MU-MIMO
Frequency Bands
- 2.4GHz Radio - 2400 - 2483.5 MHz
- 5GHz Radio - 5150 - 5850 MHz
- 6GHz Radio - 5945 - 7125 MHz
*Not all Frequency Bands can be used in all Regions
Channel Bandwidth
- 2.4G - 20 and 40MHz
- 5G - 20, 40, 80, 160 and 240MHz
- 6G - 20, 40, 80, 160 and 320MHz
Wi-Fi Data Rates
2.4G
- IEEE 802.11be - Up to 688 Mbps
- IEEE 802.11ax - 7.3Mbps to 574 Mbps
- IEEE 802.11n - 6.5Mbps to 300Mbps
- IEEE 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11b - 1, 2, 5.5, 11 Mbps
5G
- IEEE 802.11be - Up to 8647 Mbps
- IEEE 802.11ax - 7.3 Mbps to 4804 Mbps
- IEEE 802.11ac - 6.5 Mbps to 3466 Mbps
- IEEE 802.11n - 6.5 Mbps to 1200 Mbps
- IEEE 802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
6G
- IEEE 802.11be - Up to 11529 Mbps
- IEEE 802.11ax - 8 Mbps to 4804 Mbps
*Actual Throughput may Vary Depending on many Factors Including Environmental Conditions, Distance between Devices, Radio Interference in the Operating Environment and Mix of Devices in the Network
Maximum TX Power
- 2.4G - 27dBm
- 5G - 27dBm
- 6G - 25dBm
*Maximum Power Varies by Country, Frequency Band and MCS Rate
Receiver Sensitivity
2.4G
- 802.11b: -96dBm @1Mbps, -88dBm @11Mbps
- 802.11g: -93dBm @6Mbps, -75dBm @54Mbps
- 802.11n 20MHz: -73dBm @MCS7
- 802.11n 40MHz: -70dBm @MCS7
- 802.11ax 20MHz: -65dBm @MCS11
- 802.11ax 40MHz: -62dBm @MCS11
- 802.11be 20MHz: -65dBm @MCS13
- 802.11be 40MHz: -62dBm @MCS13
5G
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps
- 802.11n 20MHz: -73dBm @MCS7
- 802.11n 40MHz: -70dBm @MCS7
- 802.11ac 20MHz: -70dBm @MCS8
- 802.11ac 40MHz: -65dBm @MCS9
- 802.11ac 80MHz: -62dBm @MCS9
- 802.11ac 160MHz: -59dBm @MCS9
- 802.11ax 20MHz: -64dBm @MCS11
- 802.11ax 40MHz: -61dBm @MCS11
- 802.11ax 80MHz: -59dBm @MCS11
- 802.11ax 160MHz: -55dBm@ MCS11
- 802.11be 20MHz: -59dBm @MCS13
- 802.11be 40MHz: -56dBm @MCS13
- 802.11be 80MHz: -54dBm @MCS13
- 802.11be 160MHz: -52dBm @MCS13
6G
- 802.11ax 20MHz: -62dBm @MCS11
- 802.11ax 40MHz: -59dBm @MCS11
- 802.11ax 80MHz: -57dBm @MCS11
- 802.11ax 160MHz: -53dBm@ MCS11
- 802.11be 20MHz: -57dBm @MCS13
- 802.11be 40MHz: -54dBm @MCS13
- 802.11be 80MHz: -52dBm @MCS13
- 802.11be 160MHz: -50dBm @MCS13
- 802.11be 320MHz: -47dBm @MCS13
Coverage Range
- Up to 175 Metres
*Coverage Range can Vary Based on Environment
Bluetooth
- BLE 5.3
Network Ports
- 1x 10G Ethernet RJ45 Port, PoE Input
- 1x 2.5G Ethernet RJ45 Port, PoE Input
LED's
- 1 x Tri-Colour LED for Device Tracking and Status Indication
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington Lock
PoE Input
- 802.3bt
Maximum Power Consumption
- 36W
Wi-Fi Standards
- IEEE 802.11a/b/g/n/ac/ax/be
SSIDs
- 48 SSIDs Total, 16 Per Radio (2.4GHz & 5GHz & 6GHz)
Concurrent Clients
- 768
Basics
- Beamforming, OFDMA, Multi-RU, Preamble Puncturing, 4096-QAM
- Multilink Operation (MLO), Target Wake Time (TWT)
- Maximal Ratio Combining (MRC), Space-Time Block Coding (STBC)
- Low-Density Parity-Check (LDPC), 802.11 Dynamic Frequency Selection (DFS)
- BSS Colouring
SSID Hidden
- Restrict Access and Improve Wireless Network Security by SSID Hiding
Port Aggregation
- Multiple Uplink Ports for Port Aggregation to Increase Uplink Bandwidth
Multicast / Broadcast Suppression
- Multicast / Broadcast Enable Optimisation with ARP Proxy
Multicast Enhancement
- Convert Multicast Data into Unicast Data for Transmission
Bandwidth Limiting
- Support SSID/Client/MAC/IP-Based Rate Limiting
Band Steering / Client Steering
- Guide Client to the Frequency Band with more Abundant Spectrum Resources
Network
- IPv4 Static or DHCP
- IPv6 Static or DHCP
- DHCP Support server/client/relay
- NAT NAT Pool
- LLDP Link Layer Discovery Protocol, Discovering and Identifying other LLDP Enabled Devices and Neighboring Devices in the Network
Encryption
- Open System
- OSEN
- WPA2-PSK (Personal)
- WPA2-802.1x (Enterprise)
- WPA3-SAE (Personal)
- WPA3-802.1x (Enterprise)
- WPA/WPA2, WPA2/WPA3
- Anti-Hacking Secure Boot and Critical Data / Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
WLAN
- SSID Hidden Restrict Access and Improve Wireless Network Security by SSID Hiding
- Port Aggregation Multiple Uplink Ports for Port Aggregation to Increase Uplink Bandwidth
- Multicast/Broadcast Suppression - Multicast / Broadcast Enable Optimisation with ARP Proxy
- Multicast Enhancement - Convert Multicast Data into Unicast Data for Transmission
- Bandwidth Limiting - Support SSID/Client/MAC/IP-Based Rate Limiting
- Band Steering / Client Steering - Guide Client to the Frequency Band with more Abundant Spectrum Resources
- RRM Dynamically Assign rRadio Power, Channel
- VPN - L2TPv3
- VLAN Support Interface / SSID / MAC Binding VLAN Based, Management VLAN, Dynamic VLAN
- Time Policy - Track the Time that the Client Connects to Wi-Fi, Support Setting the Amount of Time for the Client to Connect to Wi-Fi and the Reconnect Type after a Timeout
- Schedule Supports SSID, LED, Reboot Schedule
Weight and Dimensions
- Weight - Grandstream GWN7674 - 1132.9g
- Package Weight - 1648.6g
- Dimensions - Grandstream GWN7674 - 250mm x 250mm x 54.5mm
- Package Dimensions - 307mm x 299.5mm x 92mm
Package Contents
- Grandstream GWN7674
- Mounting Kits
- Quick Installation Guide
| Product Details | |
|---|---|
| Colour | White |
| Manufacturer's Code: | GWN7674 |
| EAN | 6947273705895 |
| Warranty | 3 Years |
| Manufacturer | Grandstream |
| Access Point or WiFi Extender | Access Point |
| Please Note | |
| Please note | All information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information. |
