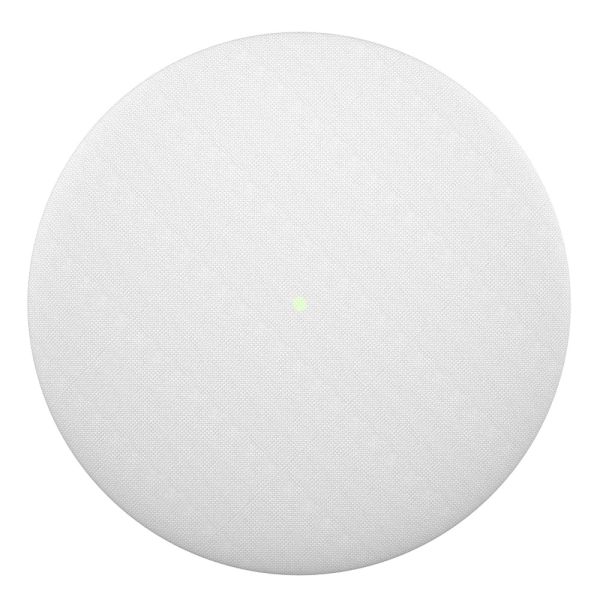

Grandstream GSC3510 | SIP Intercom Speaker | Microphone

Powerful Robust SIP Intercom with 2-Way Communication

Full Duplex Speakerphone | One 10/100Mbps Network Port with PoE/ PoE+ | Integrated Dual-Band Wi-Fi 802.11 a/b/g/n Wi-Fi and Bluetooth | 3 Directional Microphones

The Grandstream GSC3510 is a SIP Intercom Speaker and Microphone that allows Offices, Schools, Hospitals, Apartments and more to build powerful intercom solutions that expand security and communication. The Robust SIP Intercom offers 2 Way Voice Functionality with both a High Fidelity 8W HD Speaker and 3 Directional Microphones with Multichannel Microphone Array Design (MMAD) that offer a 4.2 metre pickup distance.

The Grandstream GSC3510 supports a wide range of peripherals including Bluetooth devices, built-in whitelist and blacklists to easily block unwanted calls, Integrated Dual-Band Wi-Fi and Advanced Acoustic Echo Cancellation.

Pair with Other Devices

By pairing the GSC3510 with other Grandstream Devices, including Desktop and Cordless IP Phones as well as the GDS series of Facility Access products, users can easily sculpt a state-of-the-art security and voice intercom solution. Thanks to it’s modern industrial design and rich features, the GSC3510 is the ideal Intercom Speaker/Microphone for any setting.

Full Duplex Speakerphone

• Full Duplex Speakerphone with HD Acoustic Chamber, Advanced Acoustic Echo Cancellation

Directional Microphones

• 3 Directional Micrphoness with MMAD & Microphone Beamforming Array

HD

• Full Band and Wide Band Audio Codec Support Including Opus & G.722

Integrated Dual Band Wi-Fi and Bluetooth

• Integrated Dual Band 802.11 a/b/g/n Wi-Fi and Bluetooth

PoE

• One 10/100Mbps Network Port with PoE/ PoE+

2 Pin Multi-Purpose Input

• The GSC3510 features a 2 Pin Multi-Purpose input that Supports Peripherals Including Call Buttons

Protocols | Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

• One 10/100 Mbps Port with Integrated PoE/PoE+

Bluetooth

• Integrated Bluetooth 4.0 + EDR

Wi-Fi

• Dual Band 2.4 & 5GHz with 802.11 a/b/g/n, WMM

Auxiliary Port

• One 2 Pin Multi-Purpose Input Port, Reset

Voice Codecs and Capabilities

• G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Telephony Features

• SIP Paging, Multicast Paging, Call-Waiting with Priority Override

HD Audio

• HD Speakerphone with Support for Full Band Audio with 48KHz Voice Sampling Frequency

Speaker and Microphones

•  8W High-Fidelity HD Speaker; 3 Directional Microphones with Beam-Forming Capability and up to 4.2 Metre Voice Pickup Distance

Power & Green Energy Efficiency

• Integrated PoE 802.3af Class 3, PoE+ 802.3at Class 4

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration file, TLS, SRTP, HTTPS, 802.1x Media Access Control

Multi-Language

• English, German, French, Spanish, Portuguese, Russian & Chinese

Upgrade/Provisioning

• Firmware Upgrade via TFTP / HTTP / HTTPS or Local HTTP Upload, Mass Provisioning using AES Encrypted XML Configuration File

Weights and Dimensions

• Unit Dimensions - 215.32mm (Diameter), x 68.7mm ( Depth)
• Unit Weight - 0.8kg, Box Weight - 1.39kg

Package Contents

• Grandstream GCS3510 SIP Intercom Speaker/Microphone
• Mounting Kits
• Quick Installation Guide
• GPL License
