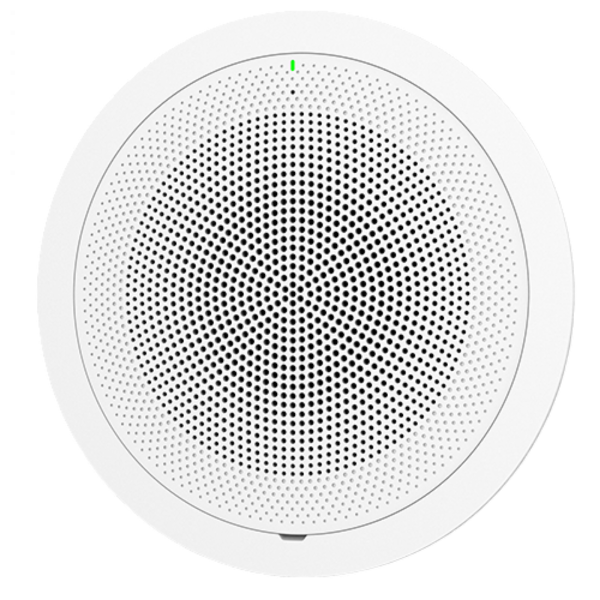

Grandstream GSC3506 V2 Multicast Paging Speaker

About the Grandstream GSC3506 V2

The GSC3506 V2 is a powerful Multicast Paging Speaker that delivers crystal clear HD audio through its 30 watt, High Fidelity Speaker. It's the ideal public address and security solution for expanding communication across diverse environments, including Offices, Schools, Hospitals, and Apartments. Key features include SIP and multicast paging, PTT, and integrated block lists / allow lists.

High Fidelity Speaker

Equipped with a 30W HD Speaker and High Fidelity Acoustic Chamber.

SIP Paging

Advanced communication features are supported, including SIP and multicast paging, along with call waiting that offers a priority override function.

Audio Codecs

Supports full band and wideband audio codecs including Opus and G.722.

Ports

Ports include 1x 2-pin switch-in input, 1x alarm-in input, 1x DC24V, 1x network, and 1x USB port;Keys include volume up / down, and reset.

Line Out Port

1 x 3-pin differential line out port.

PoE

One 10/100Mbps network port with PoE / PoE+ / POE++

Specifications:

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR,HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, SIMPLE, LDAP,TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

• 1 x 10 / 100 Mbps Port with Integrated PoE / PoE+ / PoE++

Auxiliary Ports

• 1x 2-Pin Switch-in Input Port, 1x 2-Pin Alarm-in Input Port, 1x Differential Line Out Port, 1x Network Port, 1x DC24V Port, Volume Up and Down Key (+/-), Reset

USB Port

• USB 2.0 - Supports External USB Storage Devices

Voice Codecs and Capabilities

• G.711µ/a, G.722 (Wide-Band), G.726-32, iLBC, Opus, G.723, G.729A/B, In-Band and Out-of-Band DTMF (In Audio, RFC2833, SIP INFO), VAD, CNG, PLC, AJB, AGC, ANS

Telephony Features

• SIP Paging, Multicast Paging, Group Paging, Push to Talk (PTT), Call Waiting with Priority Override

HD Audio

• HD Speaker with Support for Full Band Audio

Speaker

• 30W High-Fidelity HD Speaker (Coaxial), Frequency - 110Hz-20000 Hz, Sensitivity - Up to 95 dBA at 1W Power at 1 Metre, Maximum Sound Pressure Level (SPL): 99dB

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Memory

• 256MB RAM

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration File, TLS, SRTP, HTTPS, 802.1x Media Access Control, Secure Boot

Multi-Language

• English, German, French, Spanish, Portuguese, Russian, and Chinese

Upgrade / Provisioning

• Firmware Upgrade via TFTP / HTTP / HTTPS or Local HTTP Upload, Mass Provisioning using GDMS/TR069 or AES Encrypted XML Configuration File

Green Energy Efficiency

• 2-Pin DC Input - 24VDC / 2.5A Integrated PoE 802.3af Class 3, PoE+ 802.3at Class 4, PoE++ 802.3bt Class 6

Call Blocking Lists

Features Built-in Whitelists, Blacklists, and Greylists to Easily Manage and Block Unwanted Calls

Physical

• Unit Dimensions - 257.5mm (Diameter) x 118mm (Depth)
• Unit Weight - 2.14kg, Box Weight - 2.76kg

Compliance

• FCC: FCC 47 CFR Part 15 Subpart B, IC: ICES-003, CE: EN 55032:EN 55035; EN IEC 61000-3-2: EN 61000-3-3; EN IEC 62368-1, UKCA: BS EN 55032;BS EN 55035;BS EN IEC 61000-3-2;BS EN 61000-3-3;BS EN IEC 62368-1, RCM: AS/NZS CISPR 32:AS/NZS 62368.1

Package Contents

• Grandstream GSC3506 V2 Multicast Paging Speaker
• Mounting Kit
• Quick Installation Guide
