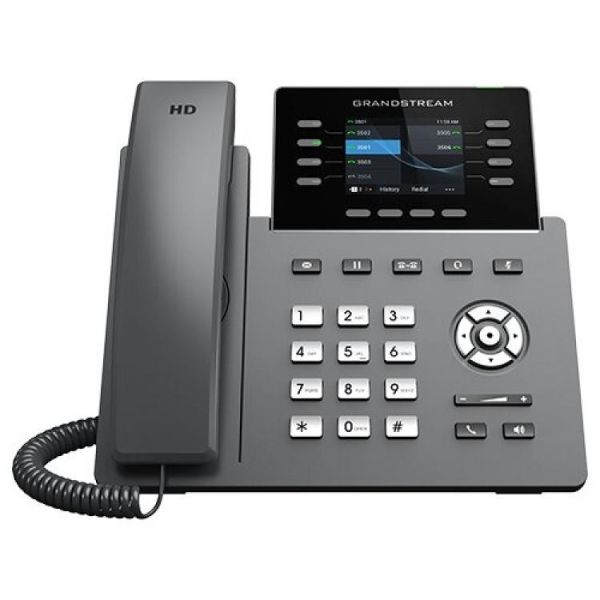

Grandstream GRP2624 - 8 Line Professional Carrier Grade IP Phone

The Grandstream GRP2624 is part of the GRP Series of Carrier Grade IP Phones, it is an 8-Line Model, designed with Zero Touch Provisioning for mass deployment and easy management. It features a sleek design and a suite of next generation features that include 5 Way Voice Conferencing to maximise productivity, Integrated Wi-Fi, Bluetooth Support, Full HD Audio on both the Speaker and the Handset that provides the utmost clarity.

EHS support for Plantronics Headsets and USB to support Grandstream’s GUV Series of Headsets. The GRP2624 is compatible with the Grandstream GBX20 Extension Module that adds functionality, versatility and flexibility with up to 40 contacts per Module and support for up to 160 contacts by connecting 4 Extension Modules. The GRP series includes Carrier Grade Security Features to provide Enterprise Level Security, including Secure Boot, Dual Firmware Images and Encrypted Data Storage. For cloud provisioning and centralized management, the GRP2624 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. The GRP2624 is the perfect choice for busy professionals and receptionists who need to manage high call volumes, with advanced functionality. Designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2624 offers an easy-to-use and easy to-deploy voice endpoint.

Features

• 8 Lines, 4 SIP Accounts
• Supported by GDMS Which Provides a Centralised Interface to Configure, Provision, Manage and Monitor Grandstream Devices
• Integrated Bluetooth to Connect Headsets, Sync Contacts, Calendars and more
• Full Duplex Speakerphone with HD Audio to Maximise Audio Quality and Clarity
• Equipped with Noise Shield Technology to Minimise Background Noise
• Dual Switched Autosensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE
• Supports 5 Way Audio Conferencing for Easy Conference Calls
• Enterprise Level Protection Including Secure Boot, Dual Firmware Images and Encrypted Data Storage
• Swappable Faceplate to Allow for Easy Logo Customisation
• Integrated Dual-Band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Interfaces

• Dual Switched Auto-Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE

Graphic Display

• 2.8 Inch (320x240) TFT Colour LCD

Wi-Fi

• Integrated Dual-Band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Bluetooth

• Integrated Bluetooth

Feature Keys

• 8 Line Keys with up to 4 SIP Accounts, 4 XML Programmable Context Sensitive Softkeys, 5 Navigation/Menu Keys, 9 Dedicated Function Keys for - MESSAGE(with LED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL

Auxiliary Port

• RJ9 Headset Jack Allowing EHS with Plantronics Headsets, USB to Support Grandstream’s GUV Series Headsets and other USB Headsets

Voice Codecs and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony Features

• Hold, Transfer, Forward, 5 Way Conference, Call Park, Call Pickup, Shared Call Appearance(SCA)/Bridged Line appearance(BLA), Downloadable Phonebook(XML, LDAP, up to 2000 Items), Call Waiting, Call Log(up to 2000 Records), XML Customisation of Screen, Off-Hook Auto Dial, Auto Answer, Click-to-Dial, Flexible Dial Plan, Hot Desking, Personalised Music Ringtones and Music on Hold, Server Redundancy and Fail-Over

HD Audio

• HD Handset and Speakerphone with Support for Wideband Audio and Dual Microphone

Extension Module Compatible

• Grandstream GBX20 Extension Module

Power & Green Efficiency

• Universal Power Adapter Included - Input: 100-240V ; Output: +12V, 1A - Integrated Power-over-Ethernet (802.3af) Max Power Consumption 9.5W (Power Adapter) or 10.8W (PoE)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration file, SRTP, TLS, 802.1x Media Access Control, Secure Boot

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more

Upgrade/Provisioning

• Firmware Upgrade via FTP/TFTP / HTTP / HTTPS, Mass Provisioning using GDMS/TR069 or AES Encrypted XML Configuration File

Base Stand

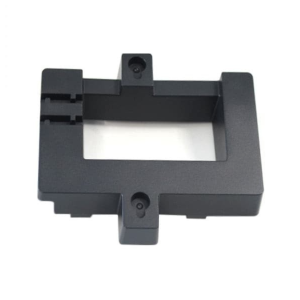

• 2 Angle Positions Available, Wall Mountable (Wall Mount Sold Separately - Not Included)

Weights and Dimensions

• Weights - Unit Weight - 880g, Package Weight - 1260g
• Dimensions - 220mmx 210mmx 82mm

Package Contents

• GRP2624 IP Phone
• Handset with Cord
• Phone Stand
• 12V Power Adapter
• Network Cable
• Quick Installation Guide
• GPL License
