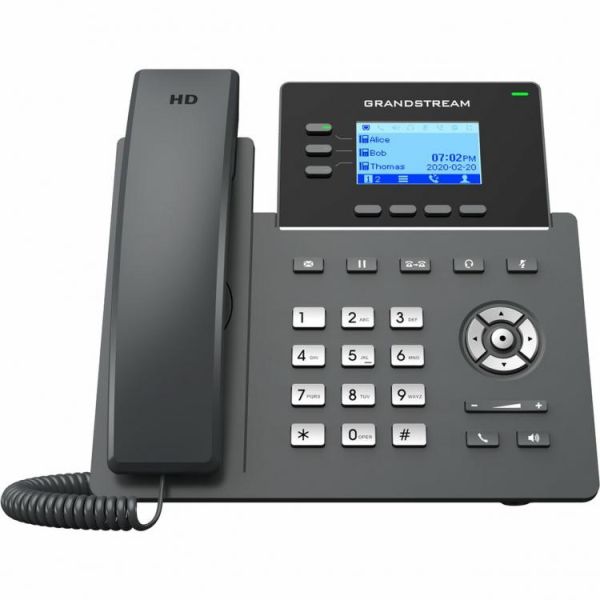

Grandstream GRP2603P 3 Line Essential IP Phone

3 Line IP Phone, 5 Way Voice Conferencing, Noise Shield Technology, EHS Support, PoE Version - No Power Supply Included, Full Duplex Speakerphone

The Grandstream GRP2603P is part of the GRP Series of Carrier Grade IP Phones, the GRP2603P is an Essential 3 Line Model, designed with Zero Touch Provisioning for mass deployment and easy management. It features a sleek design and a suite of next generation features that include 5 Way Voice Conferencing which maximises productivity, Full HD Audio on both the Speaker and the Handset to allow users to communicate with the utmost clarity, EHS Support for Plantronics, Jabra and Sennheiser Headsets and Multi-Language Support.

The GRP Series includes Carrier-Grade Security Features to provide Enterprise-Level Security, including Secure Boot, Dual Firmware Images and Encrypted Data Storage. For cloud provisioning and centralized management, the GRP2603P is supported by Grandstream’s Device Management System (GDMS), which provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high volume markets, the GRP2603P offers an easy-to-use and easy-to-deploy voice endpoint.

Features

• 6 SIP Accounts, 3 Lines, Up to 3 Call Appearances
• Supported by GDMS - This Provides a Centralised Interface to Configure, Provision Manage and Monitor Grandstream Devices
• 5 Way Audio Conferencing for Easy Conference Calls
• Equipped with Noise Shield Technology to Minimize Background Noise
• Full Duplex Speakerphone with HD Audio to Maximise Audio Quality and Clarity
• Electronic Hook Switch (EHS) Support for Plantronics, Jabra, and Sennheiser Headsets
• Enterprise Level Protection Including Secure Boot, Dual Firmware Images and Encrypted Data Storage
• Gigabit - Dual Switched Autosensing 10/100/1000 Mbps Gigabit Ethernet Ports, with Integrated PoE (GRP2603P Only)
• Swappable Faceplate to Allow for Easy Logo Customisation
• PoE Version - Built in PoE to Power the Device - PSU (Power Supply Unit) Not Included

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6

Network Interfaces

• Dual Switched Auto-Sensing 10/100/1000 Mbps Ethernet Ports, Integrated PoE (GRP2603P Only)

Graphic Display

• 132 x 64 (2.7’’) Backlit Graphical LCD Display

Feature Keys

• 3 Line Keys with Dual Colour LED and Support for 6 SIP Accounts
• 4 XML Programmable Context Sensitive Soft Keys
• 5 (Navigation, Menu) Keys
• 9 Dedicated Function Keys for - Message (with LED Indicator), Transfer, Hold, Headset, Mute, Send/Redial, Speakerphone, Vol+, Vol-

Auxiliary Ports

• RJ9 Headset Jack (Allowing EHS with Plantronics & Jabra & Sennheiser Headsets)

Voice Codecs and Capabilities

• Support for G.729A/B, G.711µ/a-law, G.726, G.722(Wide-band), G.723,iLBC, OPUS, In- Band and Out-of-Band DTMF(in Audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony Features

• Hold, Transfer, Forward, 5-Way Conference, Call Park, Call Pickup, Shared Call Appearance (SCA)/Bridged-Line-Appearance (BLA), Downloadable Phonebook(XML, LDAP, up to 2000 Items), Call Waiting, Call Log( up to 800 Records), Off-Hook Auto Dial, Auto Answer, Click-to-Dial, Flexible Dial Plan, Hot-Desking, Personalised Music Ringtones and Music on Hold, Server Redundancy and Fail-Over

HD Audio

• HD Handset and Speakerphone with Support for Wideband Audio

Power & Green Energy Efficiency

• PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2603P Only)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration File, SRTP, TLS, 802.1x Media Access Control, Secure Boot

Multi-Language

• English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian, and more

Upgrade/Provisioning

• Firmware Upgrade via FTP/TFTP / HTTP / HTTPS, Mass Provisioning using GDMS/TR069 or AES Encrypted XML Configuration File

Base Stand

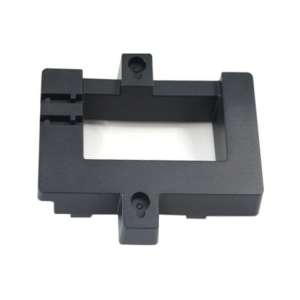

• 2 Angle Position Available (39° & 45°), Wall Mountable - Wall Mount Sold Separately (Not Included)

Weights and Dimensions

• Dimensions - 214mm (L) x 206mm (W) x 68mm (H) with Handset
• Weight - Unit Weight - 780g, Package Weight - 1090g

Package Contents

• GRP2603 IP Phone
• Handset with Cord
• Base Stand
• Network Cable
• Quick Installation Guide
