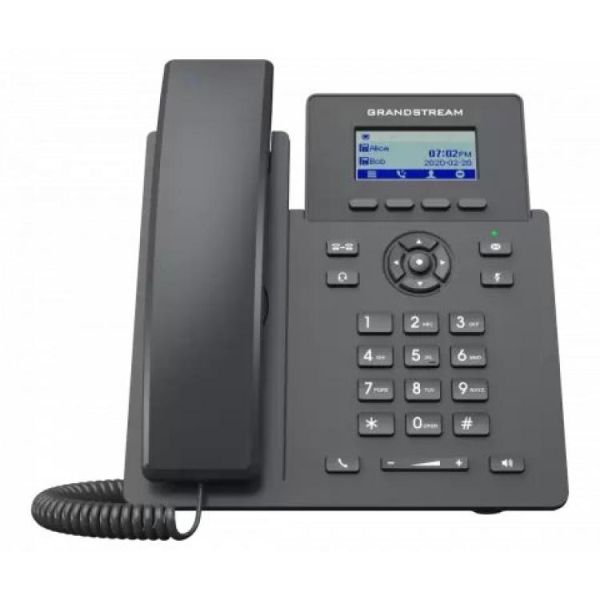

Grandstream GRP2601P - Essential IP Phone

2 Line IP Phone | 5 Way Voice Conferencing | Noise Shield Technology | EHS Support | PoE Version - No Power Supply Included

The Grandstream GRP2601P is an Essential 2 Line IP Phone designed with zero touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next generation features including 5-way voice conferencing to maximize productivity, EHS Support for Plantronics, Jabra and Sennheiser Headsets and Multi-Language Support.

The GRP Series includes carrier grade security features to provide Enterprise Level Security, including Secure Boot, Dual Firmware Images and Encrypted Data Storage. For cloud provisioning and centralized management, the GRP2601P is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the basic needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2601P offers an easy-to-use and easy-to-deploy voice endpoint.

The GRP2601P includes built-in PoE to power the device and give it a network connection.

Features

• 2 SIP Accounts | 2 Lines
• GDMS Online Device Management and Provisioning
• 5 Way Audio Conferencing for Easy Conference Calls
• Equipped with Noise Shield Technology to Minimize Background Noise
• Electronic Hook Switch (EHS) Support for Plantronics, Jabra, and Sennheiser Headsets
• Enterprise Level Protection Including Secure Boot, Dual Firmware Images and Encrypted Data Storage
• PoE Version - PSU (Power Supply Unit) Not Included

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6

Network Interfaces

• Dual Switched Auto Sensing 10/100 Mbps Ethernet Ports, integrated PoE (GRP2601P Only)

Graphic Display

• 132 x 48 (2.41’’) LCD Display

Feature Keys

• 4 XML Programmable Context Sensitive Soft Keys
• 5 (Navigation, Menu) Keys
• 8 Dedicated Function Keys for - Message (with LED Indicator), Transfer, Headset, Mute, Send/Redial, Speakerphone, Vol+, Vol-

Voice Codes and Capabilities

• Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony Features

• Hold, Transfer, Forward, 5-Way Conference, Call Park, Call Pickup, Downloadable Phonebook(XML, LDAP, up to 2000 Items), Call Waiting, Call Log( up to 800 Records), Off-Hook Auto Dial, Auto Answer, Click-to-Dial, Flexible Dial Plan, Hot-Desking, Personalised Music Ringtones and Music on Hold, Server Redundancy and Fail-Over

Power & Green Efficiency

• PoE - IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE)

Auxiliary Ports

• RJ9 Headset Jack (Allowing EHS with Plantronics & Jabra & Sennheiser Headsets)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration file, SRTP, TLS, 802.1x Media Access Control, Secure Boot

Multi-Language

• English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more

Upgrade/Provisioning

• Firmware Upgrade via FTP/TFTP / HTTP / HTTPS, Mass Provisioning using GDMS/TR069 or AES encrypted XML Configuration File

Base Stand

• 1 Angle Position - 45°, Wall Mountable - Wall Mount Sold Separately

Package Contents

• GRP2601P IP Phone
• Handset with Cord
• Base Stand
• Network Cable
• Quick Installation Guide
