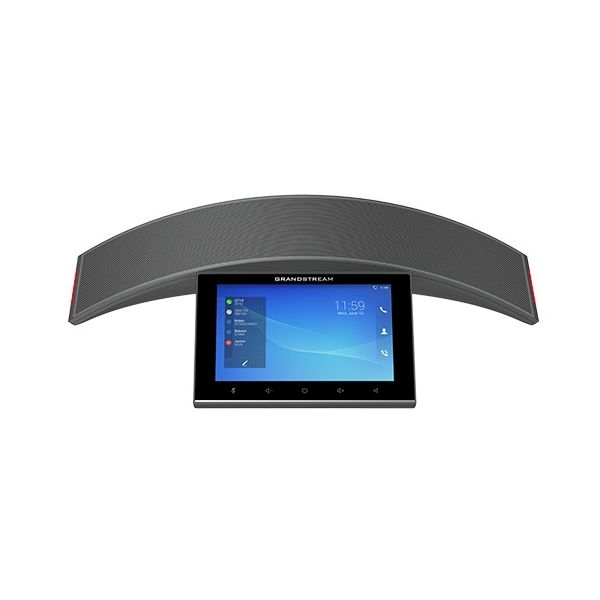

Grandstream GAC2570 - Enterprise Conference Phone

The Grandstream GAC2570 is a full duplex conferencing device featuring high quality voice communication for meeting rooms, huddle rooms and other conferencing spaces. The device features an exceptional speaker with MMAD (Multichannel Microphone Array Design) to deliver a natural and immersive conferencing experience to both local and remote participants.

The wireless design is composed by a wireless expansion microphone, modern Wi-Fi and Bluetooth support and built in battery. Featuring a 7 Inch (1280 x 800) IPS touch screen LCD with conferencing support for up to 12 participants.

The GAC2570 enables any ongoing conferences to remain uninterrupted if participants leave or enter the room. Supporting a pickup range of up to 5m the GAC2570 can be connected to two Grandstream GMD1208 Desktop Wireless Microphones up to 20m away to enhance and provide full room coverage. Additionally its modern industrial design and rich features make the GAC2570 a customisable conferencing solution for small to medium conference rooms and other day to day business conferencing spaces.

Main Features

• Full Duplex Speakerphone with HD Acoustic Chamber, Advanced Acoustic Echo Cancellation and Microphone Beamforming Array
• 12 Omni-Directional Microphones with MMAD (Multichannel Microphone Array Design)
• Supports 5m Pickup Range and can be Paired with Two Grandstream GMD1208 Desktop Wireless Microphones up tp 20m away for Full Room Coverage
• 10/100/1000Mbps Network Port with PoE+ and Dedicated Media Port for Collaboration
• Integrated Bluetooth 5.0 Support
• Integrated Wi-Fi 6, Dual Band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax
• Supports 12 Way Party Conferences

Features / Specifications

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Operating System

• Android 10 Operating System

Network Interface

• One 10/100/1000 Mbps Port with Integrated PoE+

Wi-Fi

• Wi-Fi 6, Dual Band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax

Bluetooth

• Integrated V2.1+EDR, V5.0 Dual Mode

Microphone

• 12 Omni-Directional Microphones with MMAD

External Microphone

• Grandstream GMD1208 Desktop Wireless Microphones - Cascade up to Two Microphones

Speaker

• 10 Watt High Fidelity Speaker, Freuency - 100-20000 Hz, Volume - Up to 83dBA at 1.0 Metre

Auxililary Ports

• 1 x Media Port, 1 x Network Port, 1 x HDMI IN, 1 x USB, 1 x Line Out, 1 x Micro USB, 1 x Kensington Lock

Voice Codecs

• G.711μ/a, G.722 (wide-band), G.722.1c, G.726-32, iLBC, Opus, G.729A/B in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield

Telephony Features

• SIP Paging, Hold, Call Park/Pickup, 12 Way Audio Conferencing (Including the Host), Multi-Party Calls Automatically from a Meeting, Virtual MPK, Downloadable Contacts (XML, LDAP - up to 2000 Items), Call Record (Local and Server), Call log (Up to 2000 Records), Call Waiting, Auto Answer, Flexible Dial Plan, Personalised Music Ringtones, Music on Hold

HD Audio

• HD Speakerphone with Support for Full Band Audio

Certification

• Zoom

Power & Green Energy Efficiency

• Integrated PoE+ 802.3at Class 4 Built-in Rechargeable 3300mAh Battery to allow up to 4 Hour Talktime

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess based Authentication, 256-bit AES Encrypted Configuration File, TLS, SRTP, HTTPS, 802.1x Media Access Control

Upgrade/Provisioning

• Firmware Upgrade via TFTP / HTTP / HTTPS or Local HTTP Upload, Mass Provisioning using AES Encrypted XML Configuration File

Package Contents

• Grandstream GAC2570 Conference Phone
• Ethernet Cable
• Micro USB Cable
• Quick Installation Guide
• PoE Injector
• HDMI Cable
