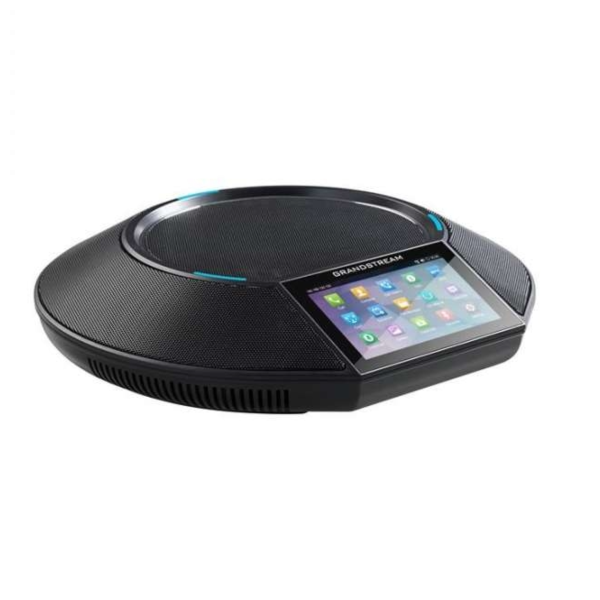

Grandstream GAC2500 Android Enterprise Conference Phone

The Grandstream GAC2500 is an ideal conferencing solution that delivers a modern design, paired with HD Audio and a suite of productivity features. The Android based GAC2500 offers access to features and functionalities not found in Conference Phones.

The Android Business Conference Phone offers flexibility and mobility, supporting up to 6 lines and 6 SIP accounts whilst offering access to the Google Play Store in order to hold conferences through Android Applications. The GAC2500 offers a variety of mobility options by supporting Bluetooth for Audio Pairing and data syncing with mobile devices as well as Wi-Fi for wireless calling/conferencing in any location.

A 7 way conference bridge allows the GAC2500 to easily create and hold a conference at any time, the 4.3 Inch Touch Screen with a familiar Android Interface offers easy use. The Android Enterprise Conference Phone also offers daisy chain support, combining all of these features the GAC2500 offers a foundation that gives any business the choice and flexibility to customise their Conference Phone based on their communication needs.

Features

• Runs Android 4.4 & Offers Access to the Google Play Store, and all its Applications such as Google Hangouts, Skype and more
• Gigabit - Auto Sensing 10/100/1000mbps Network Port
• Built in Bluetooth for Syncing Headsets and Mobile Devices
• PoE - Built in PoE+ to Power the Device and give it a Network Connection
• Wi-Fi Support
• Supports 6 SIP Accounts and 7 Way Voice Conferencing
• HD Audio
• Call List (up to 2000 Records)
• Applications - Skype, Google Hangouts, Skype for Business (Lync), Facebook, Twitter, YouTube, Internet Browser, Adobe Flash
• 4.3 Inch (800 x 480) Capacitive Touch Screen
• TLS and SRTP Security Encryption Technology to Protect Calls and Accounts
• Allows Chain Installation to Combine two GAC2500 Together

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A Record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 (Pending), OpenVPN (Pending)

Network Interface

• Auto-Sensing Gigabit Ethernet Port with Integrated PoE+ (IEEE 802.3at Class4)

Graphic Display

• 4.3” IPS LCD with 800x480 Resolution

Mic

• 3 Cardioid Microphones; 12 ft. Pickup Distance, 360° Capture

Speakerphone

• Frequency - 220-18,000 Hz
• Volume - Up to 86 dB at 0.5 Metre
• Audio - Full Duplex

Bluetooth

• Integrated Bluetooth 4.0

Wi-Fi

• Integrated Wi-Fi - 802.11 b/g/n

Auxiliary Ports

• 3.5mm Audio Port, USB Micro-B, RJ48 Daisy Chain Port

Voice Codecs

• Support for G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1 and G.722.1c (Pending), In-Band and Out-of-Band DTMF (In Audio, RFC2833, SIP INFO), G.729A/B, VAD, CNG, AEC, PLC, AJB, AGC

Telephony Features

• 6 SIP Accounts, Hold, Transfer, Forward, 7-Way Conference, Call Park, Call Pickup, Downloadable Phonebook (XML, LDAP, up to 2000 Items), Call Waiting, Call Log (up to 2000 Records), XML Customisation of Screen, Auto Answer, Click-to-Dial, Flexible Dial Plan, Hot Desking, Personalized Music Ringtones and Music on Hold, Server Redundancy and Fail-Over

Sample Applications

• Web Browser, Adobe Flash, Facebook, Twitter, YouTube, Google Calendar, Mobile Phone Data Import/Export via Bluetooth, etc. API/SDK Available for Advanced Custom Application Development

HD Audio

• HD Audio on Speakerphone with Support for Wideband Audio

Power & Green Energy Efficiency

• Universal Power Supply:Input - 100-240VAC 50-60Hz; Output:12VDC,2A (24W)

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and Administrator Level Passwords, MD5 and MD5-Sess Based Authentication, 256-bit AES Encrypted Configuration file, TLS, SRTP, HTTPS, 802.1x Media Access Control

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more

Upgrade/Provisioning

• Firmware Upgrade via TFTP / HTTP / HTTPS or Local HTTP Upload, Mass Provisioning Using TR-069 or AES Encrypted XML Configuration File

Physical

• Unit Dimensions - 280mm x 285mm x 60mm (W x L x H)
• Unit Weight - 1.34kg
• Package Weight - 2.35kg

Package Contents

• Grandstream GAC2500 Conference Phone
• Universal Power Supply
• Network Cable
• USB Cable
• RJ48 Cascade Cable
• Quick Installation Guide
