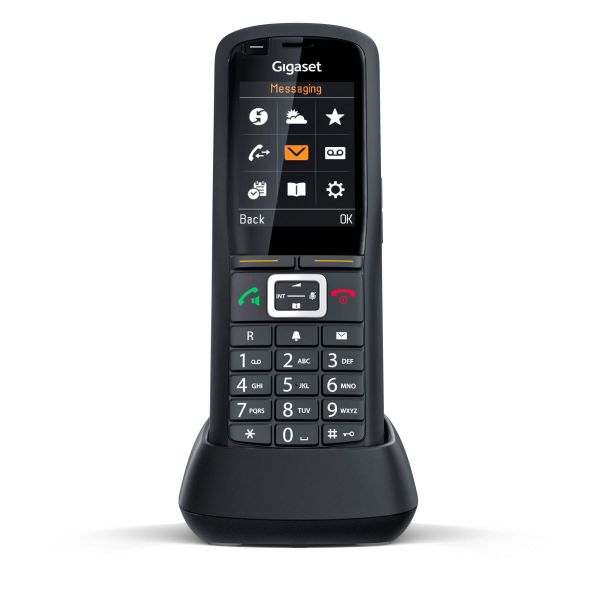

Gigaset R700H PRO - Robust Additional Handset

Replacing the R650H PRO, the R700H PRO is a Robust, Shockproof, Dustproof and Waterproof Handset with an Ingress Protection Rating of IP65. The Handset is designed to be protected against the majority of external impacts including shocks from falling, water jets or dust. In addition to these features, the R700H PRO is equipped with a rubber surface that is resistant to disinfectants, the rubber surface gives the perfect in hand grip and the R700H has an elegant design.

The R700H is equipped with many business functions, and has a 2.4 Inch Colour Display and a 3.5mm Headset Jack Connection. As an enduring companion due to the outstanding battery life, the integrated LED for visual call indication or use as a torch and the convenient vibrating alert, the Handset allows you to maintain your communication even in a noisy work environment e.g. in a production facility outdoor area a service garage or a logistics environment. The Handset is optimised for use with all professional Gigaset DECT systems. In addition, the R700H PRO can also be used on CAT-iq & GAP compatible base stations in third party single and multi-cell environments.

IP65 Rated and Disinfectant Resistant

In addition to the rubberised suface which gives the Gigaset R700H the perfect grip,, it has been designed in such a way that it can be operated with work gloves. The display glass is resistant to scratches thanks to a harder surface and can therefore be used in harsher, extreme working environments. With an IP65 certification the R700H PRO is protected against shocks and against the ingress of dust and water jets. In addition the special magnetic shielding makes the R700H PRo resistant to metal dust. The Handset has a disinfectant resistant surface , which simplifies cleaning and thus protects against bacteria and viruses.

Business Functions and Security Gadgets

The new Gigaset R700H PRO scores in the professional environment with its large 2.4" TFT Colour Display and a wide range of business functions such as SUOTA, Bluetooth and a brilliant sound quality. The R700H PRO is completed by the vibration alert, the integrated LED for visual call indication or use as a torch and the separately programmable alarm button to quickly and easily trigger a direct dial or an alarm call. Optimized for Gigaset single and multi-cells and for use behind alarm systems.

Optimised for Multi-Cells - Indoors and Outdoors

Whether in dusty production facilities or in wet outdoor conditions: you can be reached everywhere. This is ensured by seamless roaming and call transfer when operating with Gigaset multicell systems. The new R700H PRO offers full freedom of movement and high flexibility for all employees throughout the company premises in all environments.

Feature Highlights

• Shockproof, Dustproof and Waterproof According to IP65
• Non Slip Rubberised Surface
• Programmable Alarm/Function Button
• Large Illuminated 2.4" TFT Colour Display
• Headset Operation via Bluetooth 4.2 or 3.5mm Jack
• Handsfree Talking with Brilliant HDSP™/CAT-IQ 2.0 Acoustic Quality and High Maximum Volume
• Spot LED as Torch and for Call Signalling
• Hotel Option - Call Lists are Automatically Cleared
• Audio Profiles for Quick Selection in a Meeting, in a Loud Environment or with Individual Settings
• SUOTA - Software Update Over the Air
• Disinfectant Resistant and Scratch Proof Surface
• Local Phonebook with Search Function and up to 500 vCards and Access to Company Phonebook via PBX (XML, LDAP) - Depending on Base Station and/or PBX, Provider
• Data Exchange via Bluetooth® or Micro-USB
• Vibrating Alert
• No Ringing in the Charging Cradle can be set for Parallel Calls
• Key Lock with PIN Protection - Emergency Call Dialling Despite PIN Protection
• Up to 13h Talk Time
• Up to 320h Standby Time
• Charging also via Micro-USB Connection
• Charging Cradle Included
• Full Compatibility with the Professional Gigaset DECT Single and Multi-Cell Systems

Technical Data:

User Interface

• Illuminated Graphical 2.4 Inch TFT QVGA Colour Display, 240 x 300 Pixel, up to 8 Lines and 65,000 Colours
• Intuitive, Modern User Interface with Icons, Display Keys, Five Way Navigation Key, Function Keys

Phonebook and Dialing

• Address Book with up to 500 vCard Entries - vCard Entries - First and Last Name, Three Numbers, Email, Date Reminder, VIP Melodies and Picture Caller ID
• PBX Directory Access with Search (LDAP and XML)
• Public Online Directory Search with Auto Lookup
• 3 Separate Call Lists (Missed/Incoming/Outgoing) with 20 Entries each with CLIP/CNIP and Time/Date
• Redialing of Last 20 Numbers Entered
• Short Dial Keys (Soft Keys, 9 Numeric Keys)
• Mute Key, Key Lock and Flash Key
• Automatic Redial Function

Connectivity:

Flexible Connection Options with the R700H PRO - Mobile Phone, Hearing Aid, Headset, PC, Gigaset N870IP PRO, Gigaset N670IP PRO, Gigaset N720 IP PRO, Gigaset N510IP PRO, DX800 All In One, DECT Base Stations from other Manufacturers with GAP or CAT-iq Standard.

Receiving Calls

• Caller indication displayed via CLIP, Picture CLIP and CNIP
• Individual Ringer Melodies for VIP Entries and Internal Callers
• Anonymous Call Silencing
• Vibrating Alert

Missed Calls

• Signalled via Display and Illuminated Message Waiting Indicator
• List Showing up to 20 Missed Calls with Caller Indication
• Local Missed Call List Behind 3rd Party Single and Multicell Systems with GAP
• Direct Dialling of the Missed Call List

Audio

• HD Audio Supporting HDSP™/CAT-IQ 2.01
• Handsfree Talking with Excellent Audio Quality
• Side Keys for Easy Volume Adjustment
• 32 Selectable Ringer Melodies with 5 Volume Levels and Crescendo
• Selectable Audio Profiles (Personal, Silent and Loud)
• Headset via Bluetooth or 3.5 mm Jack

Keypad

• Programmable Alarm/Function Button
• Illuminated and Scratch Resistant
• Message Waiting Key with Blinking LED
• Separate R-Button
• Profile Key to Apply Personal, Silent and Loud Settings Directly
• Side Keys for Easy Volume Adjustment
• Keylock (#-Key) with PIN Protection
• Mute Button

Hotel Option

• Data Such as Call Lsts can be Deleted on a Time Controlled Basis
• Blocking Soft Key Programming
• Voicemail Function can be Activated/Deactivated
• The Bluetooth Menu is Deactivated
• A Reduced Calendar Function - no Entries Possible
• Reset Codes for  Restoring the Default Menu Language, Restoring the Default Screen Saver
• Restricted use of the Micro-USB Port - Data Exchange, Gigaset QuickSync Software Cannot be used, The Disaster Recovery System can still be used
• Charging via USB is Still Possible

Additional Features - Depending on Basestation and/or PBX Provider

• Organiser with Calendar and Reminder Functions
• Email Reader
• Info Services
• Screensaver (Picture, Slideshow, Clock, Info Service)
• Battery Charge also in Power Off State
• Warning Tones when out of the DECT Range and Visa Versa
• Silent Charger Mode During Parallel Ringing with other Phone Registered at the same User
• Alarm, Messaging, Location Support
• Simple Configuration via Auto Provisioning

Gigaset QuickSync Software

• Software free to Download for Windows and OSX. Connect via M icro-USB or Bluetooth
• Synchronize your Handset Directory with Microsoft Outlook®
• Upload of Caller Pictures / Screensaver Pictures
• Upload Ringtones from Computer to Handset
• Firmware Update
• Computer Telephony Integration (CTI) - Direct Dialling of Microsoft Outlook® Contacts, Display of Incoming Calls on the Computer - both on Windows and OSX

Compatibility

• Gigaset DECT IP Singlecell Systems Optimsed and Recommended for  - Gigaset N670IP PRO, Gigaset N510IP PRO
• Gigaset DECT IP Multicell Systems Oprimised and Recommended for - Gigaset N870IP PRO, Gigaset N720 IP PRO, GAP and CAT-iq Compatible DECT Base Stations (Single and Multicell Systems

Interfaces

• DECT
• Bluetooth® - Bluetooth Headset (Handsfree and Headset Profile), Data Exchange and Firmware Update with Gigaset QuickSync, Bluetooth Beacon Scanning, Acting as a Beacon
• vCard Exchange with Mobile Phones
• Micro-USB
• Charging Function
• Data Exchange and Firmware Update with Gigaset QuickSync
• 3,5 mm Headset Connector

DECT Range

• Indoor Range - Up to 50 Metres
• Outdoor Range - Up to 300 Metres

Eco DECT Features

• Up to 60% Less Energy Consumption through Energy Saving Power Supply Unit
• ECO Mode - Manual Reduction of the Transmission Power of the Basestation and all Registered Handsets
• Variable Reduction of the Transmission Power Depending on the Distance Between Handset and Basestation (Handset only)

Operation Time

• Up to 13 Hours of Talk Time
• Up to 320 Hours of Standby Time

Weights and Dimensions

• Handset Dimensions- 159mm x 54mm x 25mm
• Charger Dimensions - 75.5mm c 74.2mm x 44.2mm
• Package Dimensions - 224mm x 166mm x 60mm
• Package Weight - 381g Approximately

Package Contents

• Gigaset R700H Pro Handset
• Battery Cover
• AAA Batteries (NiMH)
• Belt Clip
• Charger for Handset
• Power Supply Unit (PSU)
• User Manual
