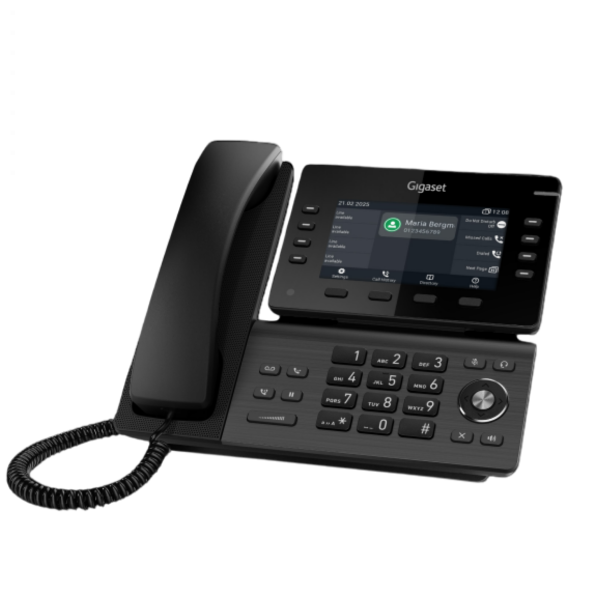

Gigaset P820 IP PRO Desk Phone

About the Gigaset P820

The Gigaset P820 IP PRO is a stylish and versatile Desk Phone designed to handle almost any office task. It offers excellent voice quality and a high quality 5 inch LCD Screen that provides a clear overview, regardless of the lighting conditions.

Its 8 Programmable Function Keys are perfect for Busy Lamp Fields (BLF) or for quick access to essential business features.

Equipped with a Gigabit switch and Power over Ethernet (PoE) support, the Gigaset P820 IP PRO offers a seamless entry into modern IP telephony.

High Resolution Colour Display

Regardless of lighting conditions, the 5 inch LCD Colour Display (480 x 272 Pixels) provides excellent visibility of all on-screen information.

Elegant / Compact Design

With its sleek gunmetal design, the Gigaset P820 IP PRO is a stylish addition to any office. Its compact footprint ensures it fits neatly on your desk.

Self Labelling Function Keys

You can easily tailor the Gigaset P820 IP PRO to your personal needs using its 8 programmable function keys. This lets you quickly access common tasks and important features with just a touch of a button.

High Quality Sound

Experience exceptionally clear calls with the Gigaset P820 IP PRO's HD Audio and Advanced Noise Reduction, letting you hear every word, even in noisy offices. Plus, it's hearing aid compatible.

Features

• 5 Inch (480 x 272) Colour TFT Display
• 8 (28) Configurable Self Labelling Multicolour LED Keys
• 12 SIP Identities / Accounts
• 3 Way Conferencing on the Phone
• Phonebook with 2000 Entries
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)
• 1 x USB-A Port, Elegant, Compact Design
• HD Audio and Advanced Noise Reduction
• Gigaset P800 KEY PRO Expansion Module Ready
• 2 Port Gigabit Ethernet Switch (RJ45), with Power over Ethernet (PoE) Functionality

Specifications:

Audio

• Codecs - G.711 A-law, u-law, G.722 (wideband), G.723, G.726, G.729ab, GSM 6.10 (FR)
• Ringtones - Built in Assignable Ringtones
• Other Features - Comfort Noise Generator (CNG), Voice Activity Detection (VAD)

Display

• Size - 5 Inches
• Resolution - 480 x 272 Pixels
• Type - TFT Colour Display

Keyboard

• Keys - 4 Context Sensitive Keys, 8 Programmable Line / Function Keys with Multicolour LED's, Dedicated Keys for Message, Call History, Transfer, Hold, Conference, Volume Key, 5 Way Navigation Key, Cancel Key, Audio Keys with LED Indication for Mute, Speakerphone, Headset

Configuration

• SIP (RFC3261), DHCP, NTP, HTTP / HTTPS / TFTP, HTTPS Server / Client, Transport Layer Security (TLS), SRTP (RFC3711), SIPS, RTCP, 802.1X Authentication and EAPOL, VPN Support, LLDP-MED, RTCP-XR, Password-Protected Web Interface

IP

• Dual Stack IPv4 / IPv6, VLAN (IEEE 802.1Q)

Provisioning

• Automatic Loading of Settings via HTTP / HTTPS / TFTP, DHCP Options 66/67, Gigaset Redirect and Provisioning Environment (GRAPE) Support, Remote Management via TR-069 / TR-111, Configurable Through Web Interface

Connectivity

• LAN Connection - 2x RJ45-8P8C Gigabit Ethernet Ports, Power over Ethernet (PoE), IEEE 802.3af, class 3 / IEEE 802.3az (Optional via Software)
• Headset Connection - 4P4C - Support for Gigaset EHS Adapter (Optional Accessory)
• USB Connection - 1 x USB-A 2.0 Host Port, Hi / Full / Low Speed
• Hearing Aid Compatible (HAC) Handset
• Interoperable with all Major IP PBX Platforms

Phonebook

• Contacts - LDAP (Directory), XML Browser
• Address Book - Local Directory with 2000 Contacts

Telephony

• VoIP - 12 SIP Identities / Accounts
• Call Groups - 3 Way Conferencing on the Phone
• Localisation - Language, Time, Dial Tone
• Other Features - Menu Driven User Interface, Multiple Language Support

Dial Functions

• Functions - Call Forwarding, Caller Identification, Call Waiting, Call Lisrs for Dialled, Received, Missed Calls, Call Completion (Busy / Unreachable) - If Supported by PBX, Call Park, Call Unpark- If Supported by PBX, Speed Dialling, Hold, Music on Hold - If Supported by PBX, Automatic Redial on Busy, Auto Answer, Blind and Attended Transfer, Extension Monitoring, Call Pick Up - If Supported by PBX, Multicast Paging, URL Dialling, Local Dial Plan, Client Matter Code (CMC) - If Supported by PBX
• Dialling Procedure - DTMF In Band / Out of Band / SIP INFO

Call Protection

• Blocking List - Call Blocking (Deny List), DND Mode (Do not Disturb)
• Dial Lock - Keyboard Lock

Signalling and Display Indications

• Incoming Calls - Red LED for Call indication / Message Waiting

Power

• Power Supply - PoE or 5Vdc Power Adapter (Power Adapter is an Optional Accessory and not Included), 10 Watts
• Input Voltage - 5V DC (SELV)

Weight and Dimensions

• Dimensions - Deskphone Without Footstand - 243mm x 210mm x 82mm (9.57 Inches x 8.27 Inches x 3.23 Inches), With Footstand - 243mm x 173mm x 178mm (9.57 Inches x 6.8 Inches x 7 Inches)
• Weight - Approximately 1.04kg (2.3lbs)

Package Contents

• Gigaset P820 IP PRO Deskphone
• Footstand
• Handset with Curly Cord
• Quick Start Guide
