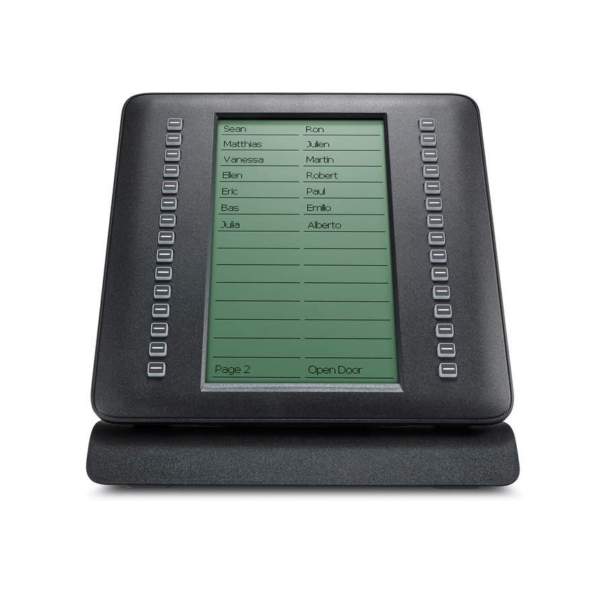

Gigaset Maxwell Expansion Module

Gigaset Maxwell Expansion Module

Enhance your speed, functionality and reach with the Expansion Module from Gigaset Pro. The Expansion Module features a large FSTN Display with two pages of 30 flexible buttons on the display. The Module can handle 58 different features such as Busy Line Fields (BLF) and Speed Dial.

All Gigaset IP Phones are intuitive and reliable, and the Expansion Modules reflect that same high quality. Gigaset Pro`s Expansion Modules are designed to support the user and the IP Desktop Phone for any business communication purpose.

Matching the Maxwell Design

The design of the Expansion Module matches the look and feel of the Maxwell Series. As everyone uses their phone in a different way, the Maxwell Series supports a movable foot, this allows three different positions from horizontal to vertical. The Maxwell Phones and Expansion Modules can also be wall mounted.

Expand with up to 3 Modules

The Maxwell Basic, Maxwell 2 and Maxwell 3 support up to 3 Expansion Modules, offering the user additional function keys, and adding as many as 174 more possible configurations. The first Expansion Module uses the power supply, whilst the second and the third connect to the first Expansion Module.

Functional Programmable Keys

The Gigaset Maxwell Expansion Module adds 58 function keys spread over two pages. One key is used to toggle between the pages and the Expansion Modules additional keys can be used for functions such as Busy Line Fields (BLF) and Speed Dial. The keys also support up to 3 colours (Red/Green/Yellow).

Features

• 29 Function Keys for a/o BLF or Speed Dial
• High Resolution Monochrome 7" FTSN Display
• Up to 58 Functions on 2 Pages
• LED in Programmable Keys with Red/Green for Signaling and Red/Yellow/Green for States
• Foot Sand with 3 Positions
• Wall Mountable
• Up to 3 Devices in Series
• Compatible with Maxwell 3, 2 and Basic

Technical Data:

Display and User Interface

• 7" FSTN Display
• Resolution - 164 x 296 Pixels
• Text Based User Interface
• Keys Programmed Via the Main Device, Possible Via Auto-Provisioning

Directory and Call Management

• 30 Silicon Cap Buttons, 15 Per Row
• 1 Key in Use to Toggle Between Pages
• Up to 58 Functions on 2 Pages
• Bi-Colour (Red/Green) LEDs for Signaling, 3 Colours (Red/Yellow/Green)

Quick Access For:

Keys can have the Following Functions:

• Speed Dial
• BLF, SIP URI
• SIP INFO
• DTMF
• Action URL, FAC
• To Leave with no Function

The Following Connections are Available with the Expansion Module:

RJ45 (IN)

• For the Connection to the Main Device, e.g Maxwell Basic, 2,3 or Prior Expansion Module

RJ12 (OUT)

• For the Connection to the Next Expansion Module

Power Socket

• In use With the First Expansion Module Only - 2nd and 3rd Module are Powered by First Module
• Use the Recommended Power Supply Only (PSU Sold Separately)

Dimensions & Weight

• Expansion Module - 188mm x 188.5mm x 36mm (L x W x H)
• Foot Stand - 187.5mm x 156.5mm x 24.5mm (L x W x H)
• Weight - Approx - 472g
