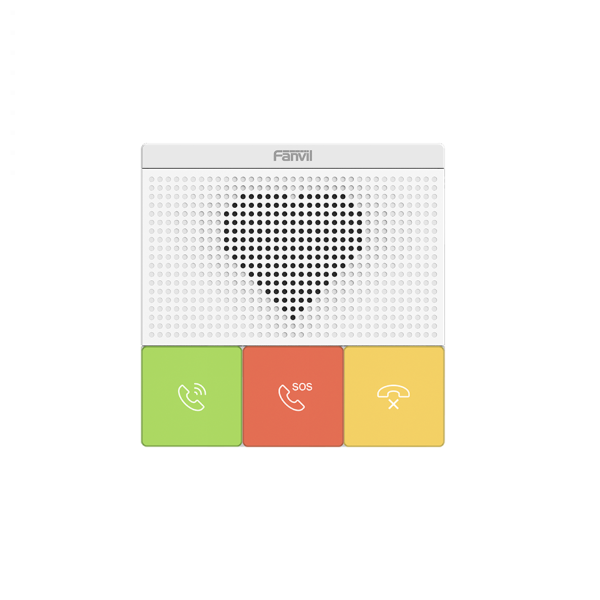

Fanvil Y501W - SIP Healthcare Intercom

SIP Healthcare Intercom Specially Designed for Home Based Care and Nursing Homes - IP54 Ingress Protection Rating - Waterproof and Dustproof

About the Fanvil Y501W

The new Fanvil Y501 Series of Healthcare Intercoms have been specially designed for home based care and nursing homes. The Healthcare Intercom is ideal for emergency communication, security protection and broadcasting.

Featuring HD Audio, 2 SIP Accounts, Detachable DSS Keys, an IP54 Waterproof and Dustproof Rating, Built in 2.4G and 5G Wi-Fi (Fanvil Y501W / Y501W-E) Only).

The Y501 Series offers different installation modes of standard 86 box embedded (Y501-E and Y501W-E) and wall mountable  (Y501 / Y501-W) to bring users a timely healthcare communication experience.

Compact and Reliable

The Fanvil Y501 Series have been designed with a colourful appearance, helping it to be located easily and accurately. Equipped with 3 detachable DSS Keys with antibacterial material allows users to customise the functions according to their needs.

Wireless Emergency Button in Hand

With a built in 433MHz wireless module, the Fanvil Y501 Series supports the Fanvil KT10 Wireless Button and the Fanvil KT20 Wireless Button for remote one click calls. Call for help in an emergency when you cant get to the intercom. Please note that the Fanvil KT10 Wireless Button and the Fanvil KT20 Wireless Button are not Included and are a separate purchase.

Superior Intercom Experience with HD Audio

With a built in 2W Speaker and Acoustic Echo Canceller (AEC) the Y501 Series supports wideband codec G.722 and Opus - providing superior HD intercom experience.

One Click Call - Instant Response

When the Call / Emergency Button is pressed on the Y501W Intercom by someone who needs help, the host machine and other extensins will receive the call information simultaneously, providing a timely response to the users needs.

Dual Band Wi-Fi

Some of the Fanvil Y501 Series - Y501W and Y501W-E support built in 2.4GHz and 5GHz Wi-Fi, providing wireless network communication and greatly improving work flexibility.

Security Alarm for External Connection

The Y501 Series have 1 short circuit input and 1 short circuit output interface. They support external emergency buttons, sensors, alarm lights and other security equipment.

Features

• Supports HD Audio with Codec G.722 and Opus
• Features 2 SIP Accounts and 3 Antibacterial Material Detachable Function Buttons
• Built in 2.4GHz and 5GHz Wi-Fi (Y501W and Y501W-E Only)
• Supports Specific 433MHz Wireless Buttons (Fanvil KT10 & KT20 - not Included)
• Built in 1 Short Circuit Input / Output Interface
• IP54 Waterproof and Dustproof
• Supports PoE Power Supply
• Supports Wall Mount Installation (Y501 and Y501W) and 86 Box Embedded Installation (Y501-E and Y501W-E)

Specifications:

Generic

• 2 SIP Lines, Auto Answer
• HD Voice, PoE Enabled
• Built in 2.4GHz and 5GHz Wi-Fi (Y501W / Y501W-E)
• Intercom Function
• Optional External Power Supply - Not Included

Intercom Function

• Supports Customised DSS Keys
• Supports Wireless Button (Optional Accessory)
• Network Time Synchronisation
• Action URL / Active URL

Audio

• Narrowband Codec - G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec - G.722, Opus
• STUN, DHCP, IPv6, LLDP, PPoE, L2TP, OpenVPN, SNTP
• FTP / TFTP, HTTP / HTTPS, TR-069
• Duplex Intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC), Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-Band, Out-of-Band - DTMF-Relay (RFC2833) / SIP INFO

Physical Specifcations

• 3 DSS Buttons for - Speed Dial, Emergency, Cancel
• Up to 10 Wireless KT10 or KT20 Buttons Supported (Wireless Buttons not Included)
• Status Indicator Light - Red - Registration Failed or Network Anomaly, Green Registration Successful, Call
• 1 x RJ45 Port
• Dimensions - 87.56mm x 87.56mm x 30mm

Package Contents

• Fanvil Y501W Healthcare Intercom
• Connector, Screw and Tool
• Mounting Template
• Quick Installation Guide
