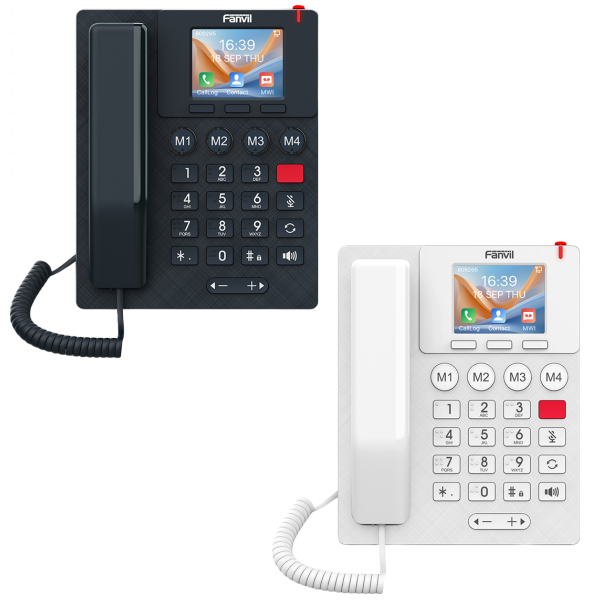

Fanvil X306 Easy to Use IP Phone

The Fanvil X306 is an Easy-to-use IP Phone Featuring Big Buttons with Braille Embossed Oversized Numeric Keys, a 3.5 Inch Colour Screen, Built-in Dual-Band Wi-Fi 6 & a Distinctive Red Key that Supports Customised Speed Dialling

About the Fanvil X306

The Fanvil X306 is a high-performance IP Phone designed for simplicity and versatility. Featuring a vibrant 3.5 Inch Colour Display and large, Braille compatible Buttons, it offers an intuitive interface for all users. Experience crystal clear audio with a powerful 5W speaker and a 5 metre Microphone pickup range, ensuring smooth communication even in large spaces. With dual-band Wi-Fi 6 and Bluetooth 5.0 built-in, the Fanvil X306 provides stable, cable-free connectivity. Whether for the modern office or home use, its 4 DSS keys and signature red emergency button offer customisable, one-touch access to your most important contacts.

Versatile enough for any setting, the Fanvil X306 is the perfect solution for both home and work. Its intuitive design makes it ideal for elderly users, while its robust performance ensures clear calls even in noisy professional environments.

5 Metre Voice Pickup & 5W Powerful Speaker

Enjoy the freedom of hands-free communication with the Fanvil X306. Equipped with Dual Microphones and a 5 metre pickup distance, allowng you to communicate freely within any environment, maintaining total call clarity. The integrated 5W Speaker delivers rich, high volume sound, ensuring that every conversation remains smooth and professional.

Highlights

• 2 SIP Lines, Hearing Aid Compatible
• 3.5 Inch 320x 240 Colour Screen - Calls and Information are Visible at a Glance
• Braille Enbossed Oversized Numeric Keys
• 4 DSS Keys - Four Dedicated DSS Keys with Interchangeable Icons, Allowing the Keys to be Customised with your most Frequently Called Contacts
• Extra Loud Volume - Engineered to be Significantly Louder than Standard IP Phones, Meeting the Diverse Hearing Needs of Every User Group with Ease
• Bright Red Emergency Key - Supports Customisable Emergency Contact Dialling
• Dual Microphone Design with a 5 Metre Pickup Distance and a 5W High Volume Speaker
• HD Voice - Supports G.722 Opus for High Quality Audio Performance
• Built in Dual Band Wi-Fi 6 (2.4Ghz / 5Ghz) and Bluetooth 5.0
• Bluetooth External Line Support - Syncs with Mobile Phone Contacts - Allowing Seamless Call Handover from Mobile Phone to IP Phone

Specifications

Generic

• 3.5 Inch (320 x 240) Pixels Colour Screen
• 2 SIP Lines, HD Voice
• Built in Dual Band Wi-Fi (2.4Ghz / 5GHz) with Wi-Fi 6
• Handsfree, 4 DSS Keys

Phone Functions

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML / LDAP)
• Call Logs - In / Out / Missed - 600 Entries
• Blocked List / Allowed List
• Screensaver
• Voice Message Waiting Indication
• User Defined Soft Key
• Network Tme Synchronisation
• Supports Recording (Through Server)
• Built in Bluetooth 5.0 - Connect to Bluetooth Headset, Pair with Mobile Phone via Bluetooth
• Built in Dual Band Wi-Fi with Wi-Fi 6 Support - 2.4GHz,802.11 b/g/n/ax, 5GHz, 802.11 a/n/ac/ax
• Acton URL / Active URI
• Customise Background Image
• Customise Boot Logo
• uaCSTA, Customise Ringtone

Call Functions

• Call Out / Answer / Reject
• Mute / Unmute Microphone
• Call Hold / Resume
• Call Waiting, Intercom
• Caller ID Display, Speed Dial
• Anonymous Call (Hide Caller ID / Ban Anonymous Call
• Call Forward (Always / Busy / No Answer)
• Call Parking / Pickup (Depending on Server)
• Redial, Predial, Call Back
• Do not Disturb (DND)/ Timed DND
• Auto Answering
• SIP SMS
• Voice Message (On Server)
• SIP Hotspot, Hotline
• Hot Desking, IP Direct Dialling
• Fuzzy Search, Action Plan, Digit Collection Rules
• Call Completion / Auto Redial
• Primary and Backup SIP Servers, Default Ext Line, Multicast

Audio

• HD Voice, HD Handset, HD Speaker
• HAC Handset
• Wideband ADC / DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729，G.729A, G.729B, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller )AEC)
• Voice Activity Detection (VAD), Confort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) /  Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band (RFC2833 / SIP INFO)
• VQM Voice Quality Monitoring
• Sidetone Support

Network

• Physical - 10 / 100 Mbps Ethernet
• IP Mode - IPv4 / IPv6 / IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• DNS-SRV (RFC 3263)
• Support Redundant Servers, Agent
• Https Mutual Authentication
• Wi-Fi Encryption Methods - WPA / WPA2-PSK / 802.1X EAP

Protocols

• SIP v1 (RFC2543) v2(RFC3261)
• UDP/TCP/TLS
• TLS 1.3
• RTP/RTCP/SRTP (Optional/Compulsory）
• STUN, DHCP
• IPv6, LLDP
• PPPoE,  802.1x  802.1p/Q
• L2TP, OpenVPN, SNTP, FTP / TFTP
• HTTP / HTTPS
• TR-069
• AES128 & AES256

Deployment and Management

• Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCPOPT66 / SIPPNP / TR-069
• Screenshot
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Export / Import
• Firmware Upgrade
• Syslog, Network Firewall
• Online Upgrade

Physical

• LCD - 3.5 Inch (320 x 240) Colour Screen
• Keypad - 25 Keys Including - 3 Soft Keys, 3 Function Keys (Mute, Headset, Redial(, 4 DSS Keys, 1 Speed Dial Key (Red Key), 12 Standard Phone Digits Keys, 2 Volume Control Keys (Increase (Right) / Decrease (Left)
• HD Handset (RJ9) x 1
• Standard RJ9 Handset Cord
• 1.5m CAT 5E Ethernet Cable
• Desk Stand
• Status Indicator Light - 1 x Red
• USB-C Port x 1
• RJ9 Handset Port x 1
• RJ45 Network Port x 1
• Security Slot x 1
• Power - DV 5V / 2A or PoE - PoE Complies with the IEEE.802.3af Standard, Power Adapter (Optional Not Included) - Input - 100-240VAC~50/60Hz Output - 5V/2A

Package Contents

• Fanvil X306 IP Phone - Dark Blue or White - Select at Checkout
• Handset & Curly Cord
• Ethernet Cable
• Desktop Stand
• Quick installation Guide
